9284-OM (V1.3) 9284 PRODUCT MANUAL 3-5
Operating Instructions
Accessing the 9284 Card via DashBoard™
Accessing the 9284 Card via DashBoard™
Access the card using DashBoard™ as described below.
1. On the computer connected to the frame LAN, open DashBoard™.

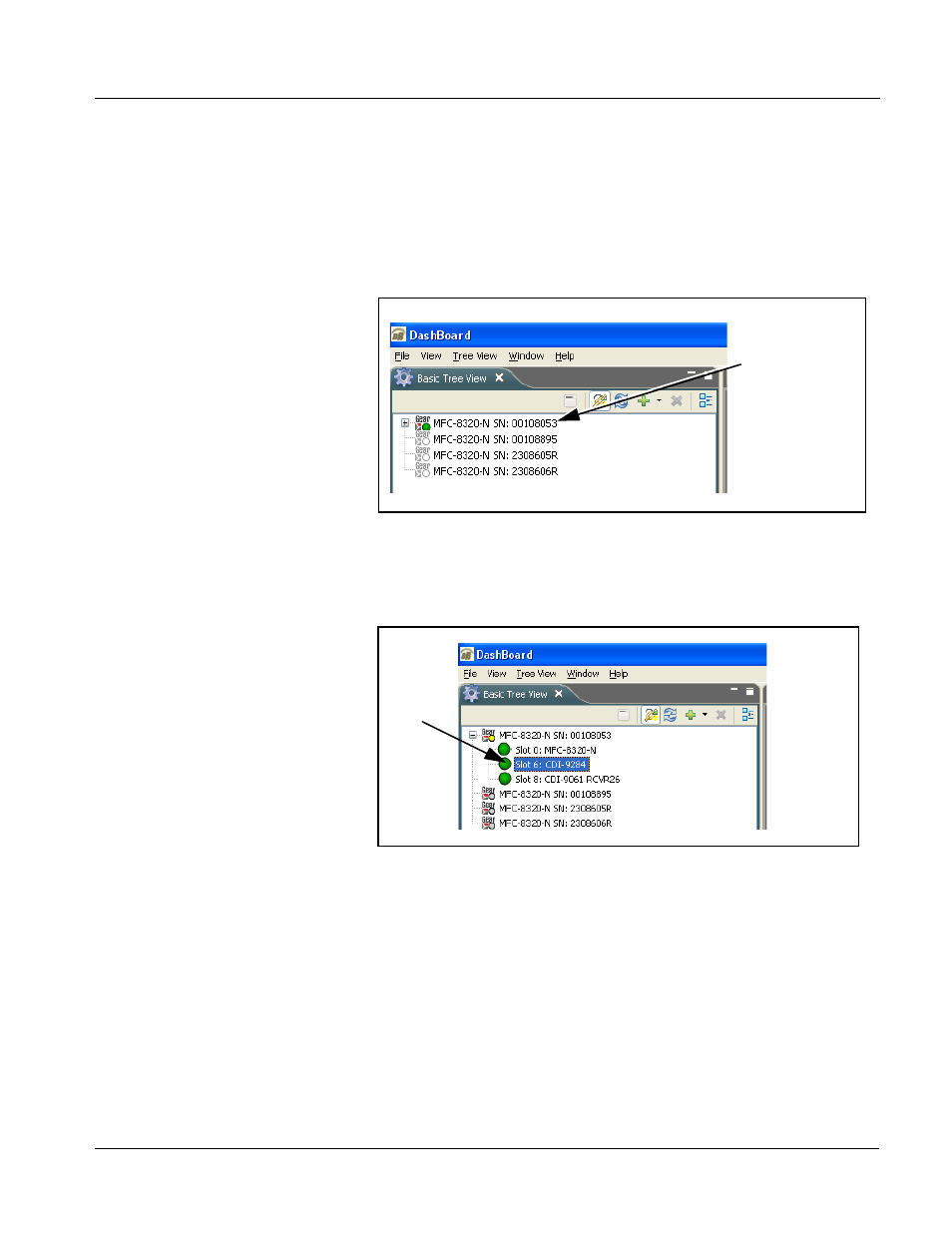

2. As shown below (in the left side Basic View Tree) locate the Network
Controller Card associated with the frame containing the 9284 card to be
accessed (in this example, “MFC-8320-N SN: 00108053”).
3. As shown below, expand the tree to access the cards within the frame.
Click on the card to be accessed (in this example,
“Slot 6: CDI-9284”).
.
As shown on the next page, when the card is accessed in DashBoard™
its function submenu screen showing tabs for each function is displayed.
(The particular submenu screen displayed is the previously displayed
screen from the last time the card was accessed by DashBoard™).
