Setting warning LED for both low and high.
LED can be set to turn on for both a low or high condition, or
To reset LED set point at any time follow this procedure again.

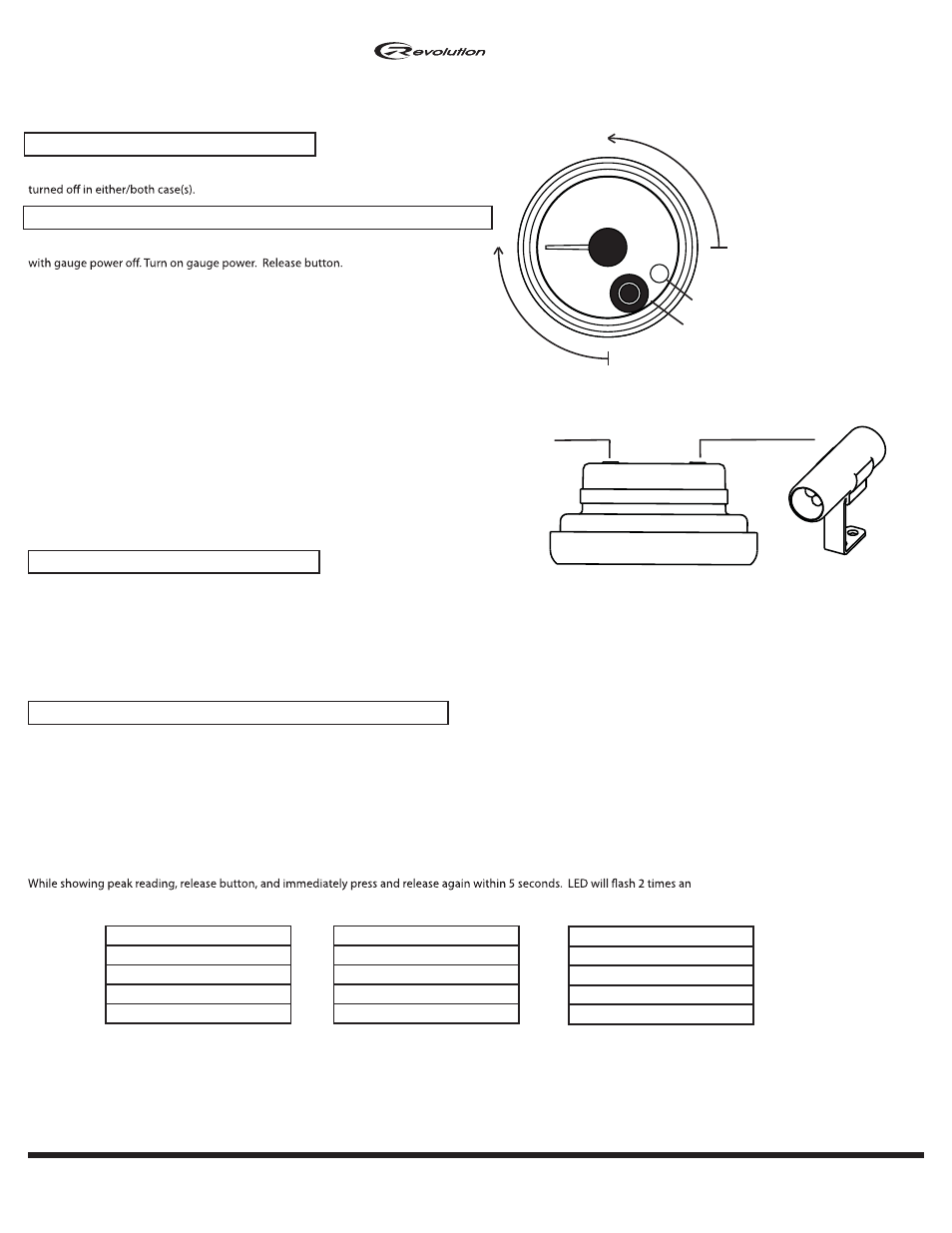

1. To enter LED calibration mode, Press and hold LED button
2-1/16" LED button
LED
High
set
LED turns on
above the set point.
Low
set
LED turns on
below the set point.
warning light
right side only
2-5/8" and 3-3/8” gauges
Peak recall memory (Revolution line only)
Press and hold gauge button down and gauge needle will move between low and high peak. Gauge will continue toggling between low and high peaks as long
as button is pressed.
Note: low peak becomes active once gauge needle travels up at least 1/8 scale initially. Once this condition occurs low peak becomes active and will record the
lowest reading the gauge achieves.
To retain peak reading (NOT CLEAR IT)
While showing peak reading, release button, wait 5 seconds, gauge will return to normal and retain the peak reading.
To clear peak reading
d pointer will travel to zero to
indicate peak has been cleared
----------------------------Note: For Revolution Series gauges with setable warning light see below---------------------------- --------------------------
Dual Peak Feature
Boost
Pressure
Air Fuel
Max Peak Feature
Temperature
EGT
Voltage
NO Peak Features
Fuel level
Vacuum
WARRANTY - Speedhut inc. warrants to the consumer for a period of 5 years from the date of purchase that the product will be free from defects in materials or workmanship.
Speedhut warrants to the consumer for a "LIFE-TIME" that the gauge circuit board will be free from defects in materials or workmanship. Please contact Speedhut service dept.
If you have a problem with this gauge. [email protected]
Note: for 2-5/8" gauges plug button into the left jack on the back of the gauge.
Gauge top
Setting LED brightness both day and night.
2. Pointer will slowly scan clock-wise from min. low condition on dial.
Press button at desired low warning set point. LED will blink to indicate
low warning point has been set. Note: Pressing button at min. low
(6 o'clock position) on dial will turn off low LED warning so that
it does not light up.
Note: Setting a low warning will turn on LED when pointer travels
below the low set point. Setting a high warning will turn on LED
above the high set point.
3. Pointer will now travel to full high condition on dial and
slowly scan counterclockwise. Press button at desired set point
for high condition. LED will blink to indicate high warning has
been set. Note: Pressing button at max high position on the
dial will turn off high LED warning so that it does not light up.
1. With gauge power on press and release LED button (LED will light up at current brightness setting).
2. Press and release LED button to change LED to desired brightness setting.
Note: 5 Settings options - off, 1, 2, 3, 4 (4 is the the brightest.)
3. Do not press the button for three seconds to save the brightness setting. The LED will blink to indicate that setting has been saved.
Note: Setting the brightness setting when the gauge lighting is on, will set the night-time brightness setting. Setting the level when the gauge
lighting is off will set the daytime brightness setting.
Note: 2-5/8" and 3-3/8"
gauges plug button in back
of gauge on left side only.
