6-11
2000-800-02 Motorized Loader
Loader Rear Panel Interconnect
The 2000-800-02 Motorized Loader rear panel is shown in Figure 6-7.
Basic Set-up:
WARNING
Disconnect the main power line before making
system inter-connections.

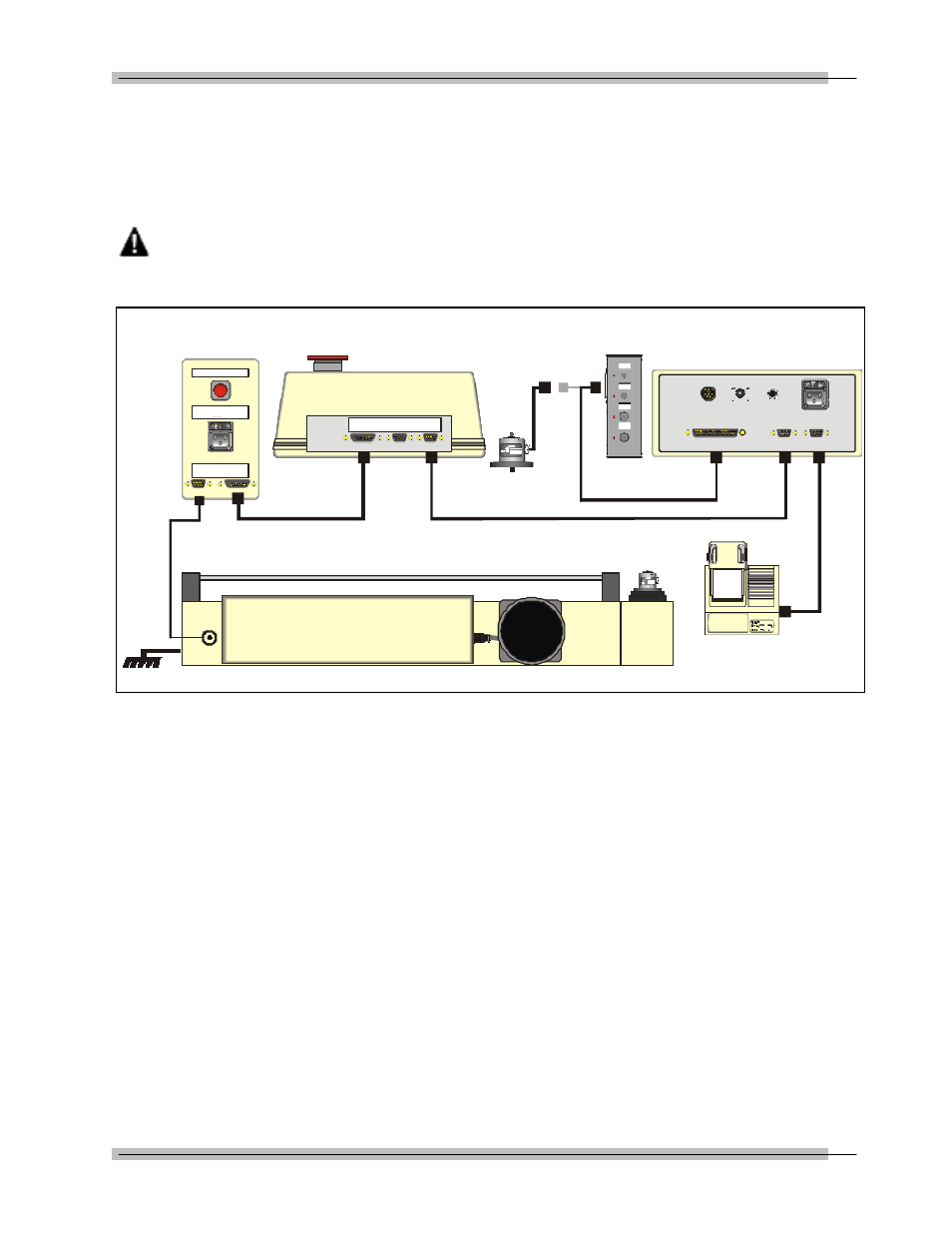

Figure 6-7: 2000-800-02 Motorized Loader Rear Panel Controls
Power Input : 110 VAC 50/60HZ.
Cable connections:
• Connect the wire on the side of the loader labelled ‘Connect
to earth ground’ to ground.
• Connect Torque Tester (RS-232 Optinal Port) to Motorized
Control Loader using DB-9 cable (P/N 2000-50-1).
• Connect Loader to Power Amplifier Box using DB-9 cable
(9800-303)
• Connect Motorized Control Box to Power Amplifier Box using
DB-15 cable (P/N 9502-500).
• Connect Power cord to Power Amplifier Box. (P/N 2000-114)
• Connect Transducer cable (P/N 2000-900-120 to Transducer).
• Connect Power cord to Torque Tester 2000-810-01 (P/N
2000-114). (not shown)
POWER IN
SOLENOID
CONTROL ANALOG
OUTPUT
RS-232 OPTIONAL RS-232 PRINTER PORT
FOOT PEDAL SWITCH INPUT
TRANSDUCER INPUT
POWER SWITCH
POWER CONNECTOR
1 1 5V A C ( )/ 3 .1 5 A F U SE ONLY
FROM MECHANICAL
LOADER TO MOTORIZED
CONTROL BOX
MOTORIZED CONTROL CONNECTOR RS-232
OPTIONAL
TO TORQUE TESTER
RS-232 0PTIONAL
(MULTITEST OR SURETEST )
TORQUE / FORCE / ANGLE TESTER
POWER AMPLIFIER
BOX
MOTORIZED CONTROL BOX
MOTORIZED LOADER
POWER CONTROL
CABLE
MULTIPLE TRANSDUCER CABLE
LOADER TO
POWER AMP BOX CABLE
MOTOR
P/N 2000-50-1
P/N 2000-50-2
P/N 2000-810-01
SMART 4IN1 TRANSDUCER
SMART SINGLE TRANSDUCERS
INTERFACE
CABLE
PRINTER CABLE
SERIAL PRINTER
P/N 2000-810-60
P/N 2000-810-50 P/N 2000-400-02
P/N 9800-303
P/N 9502-500
P/N 2000-900-120 P/N 2000-XX-02
P/N 2000-810-0
POWER AMPLIFIER
BOX
P/N 2000-810-60
.5 - 400 IN. OZ. MAXIMUM
3.75 - 50 IN. LB. MAXIMUM
10 - 150 IN. LB. MAXIMUM
30 - 400 IN. LB. MAXIMUM
52 IN-LB 51 IN-LB 55 IN-LB 53 IN-LB 52 IN-LB 52 IN-LB 53 IN-LB 52 IN-LB 51 IN-LB 53 IN-LB
52 IN-LB 51 IN-LB 55 IN-LB 53 IN-LB 52 IN-LB 52 IN-LB 53 IN-LB 52 IN-LB 51 IN-LB 53 IN-LB
CONNECT TO EARTH GROUND
