Snap-On Motorized Loader - Manual (Page 75)

6-3
2000-800-02 Motorized Loader
Torque Tester/Calibrator
The 2000-800-02 Motorized Loader mounts on a CDI roll
cabinet, part number 2000-100-02. An indicator stand mounts
onto the loader.
2000-800-02 Motorized Loader

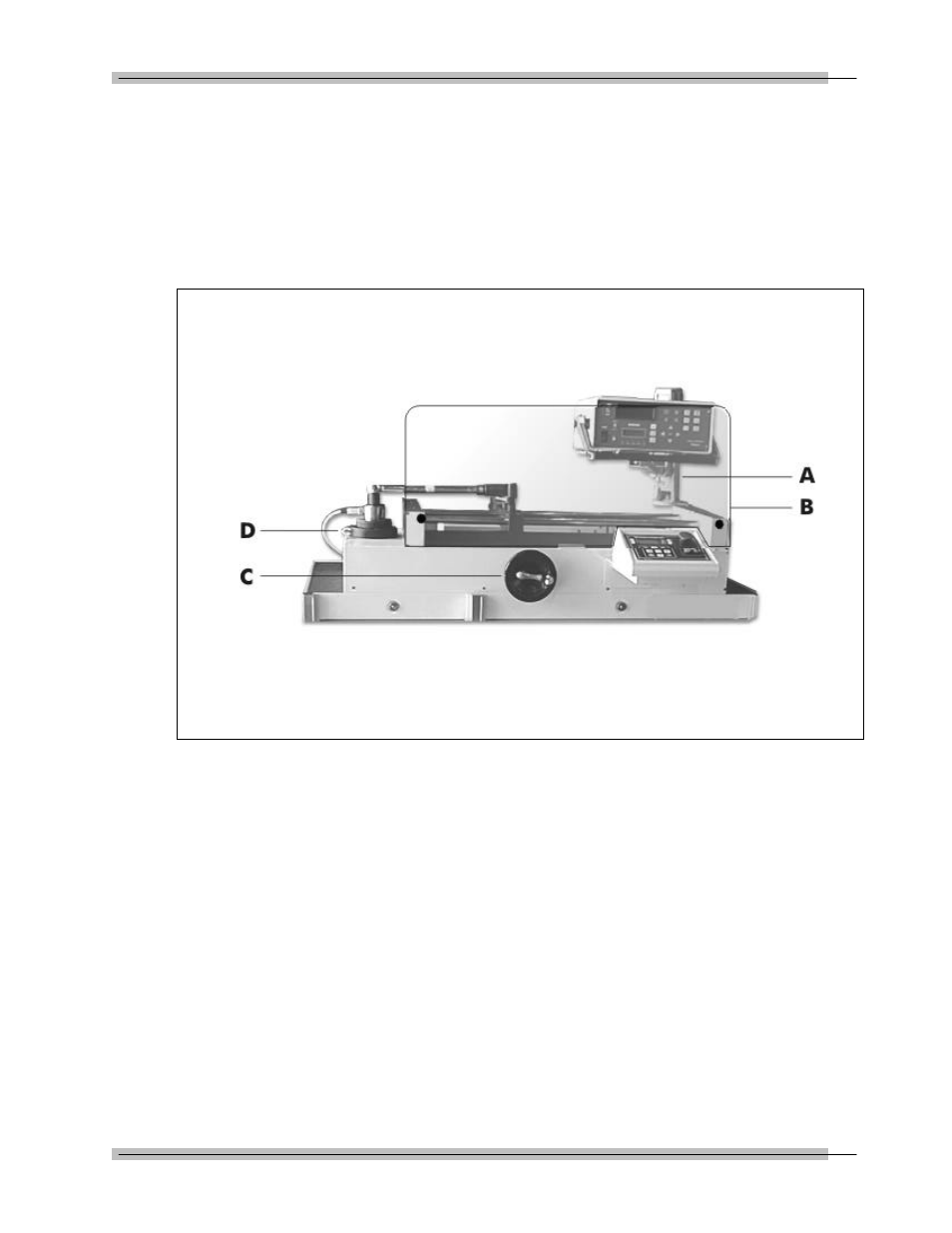

Figure 6-1: 2000-800-02 Motorized Loader
A – Indicator Stand
B – Safety Shield
C – Hand Crank
D – Transducer Mounting
