Snap-On Motorized Loader - Manual (Page 30)

3-3
Setup and Programming
2000-810-01 Indicator Controls
Refer to the illustration below when performing the power-up
and programming procedures.

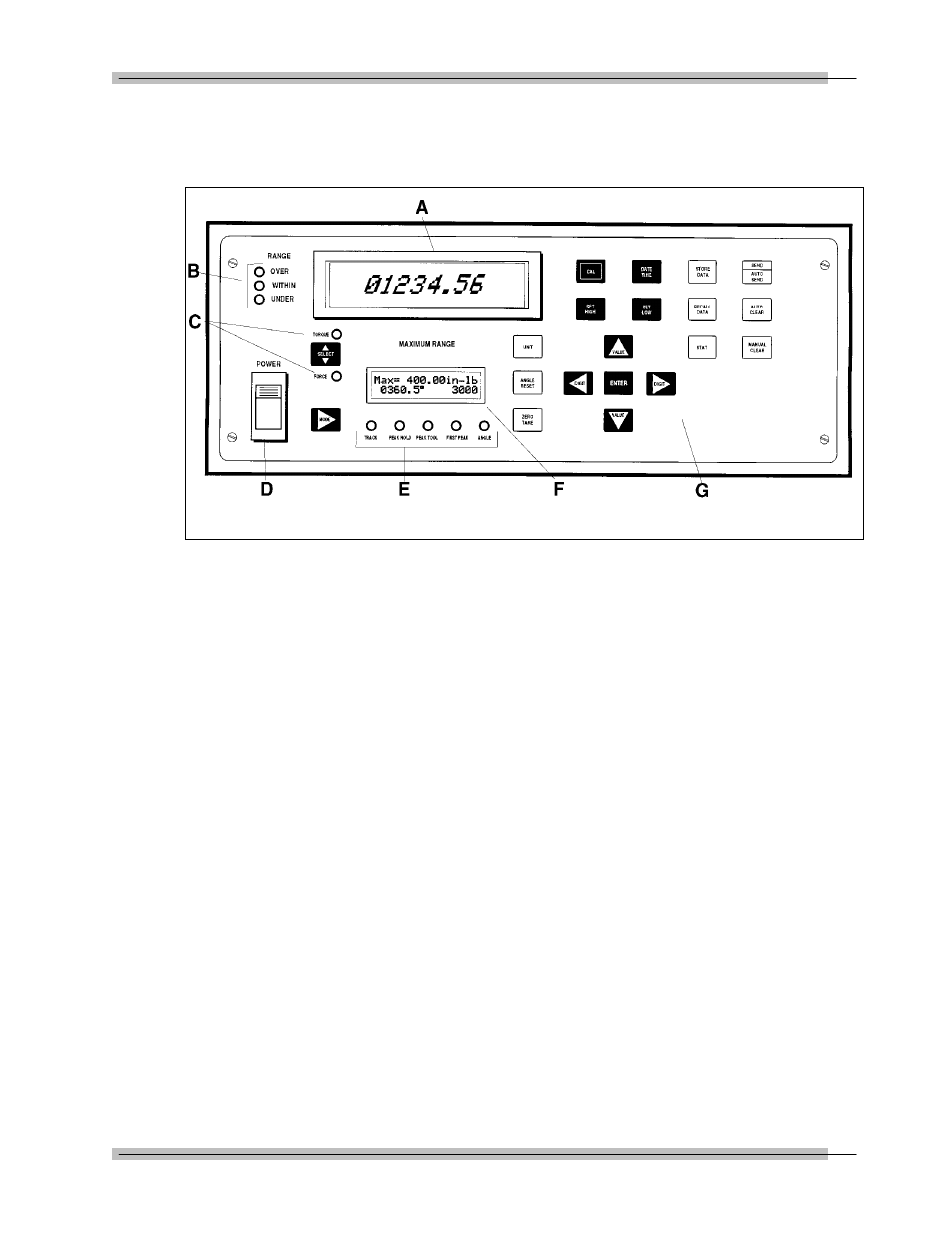

Figure 3-2: Indicator Controls
A – 2000-810-01 Torque/Force Display
B – Range LED Torque or Force Limit Indicators
C – Load Select LEDs
D – Power Switch
E – MODE Function LEDs
F – Maximum Range Display
G – Front Panel Membrane Function Keys
