Motorized Control Loader System Setup

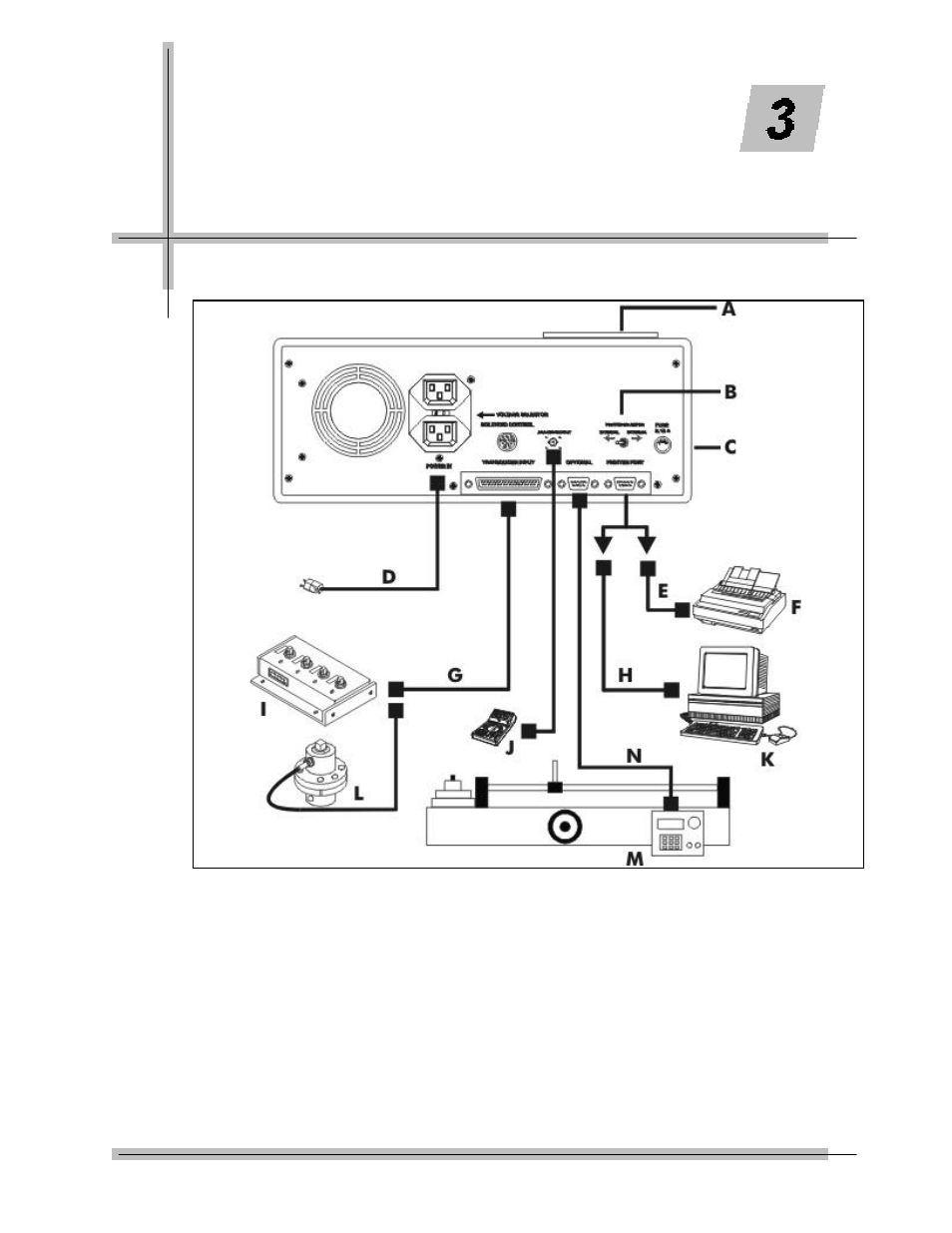

Figure 3-1: Motorized Control Torque Tester/Calibrator/Loader Setup
A – Internal printer
B – Internal/External printer selector switch
C – 2000-810-01 Indicator rear panel
D – Power cables (110/220 VAC)
E – Printer cable
F – External printer
G – Transducer cable
H – Personal computer cable
I – Smart 4-in-1 transducer
J – Analog device
K – Personal computer
L – Smart single transducer
M – Motorized Loader
N – Indicator to Motor Control Box cable
