Page 80
6-8
2000-800-02 Motorized Loader
Extension Arm (Accessory)
The 2000-800-02 Motorized Loader accepts torque wrenches up
to 80" in length. The extension arm is attached as shown in
Figure 6-5. A quick release pin is used at the end of the arm to
capture the reaction pin slide assembly.

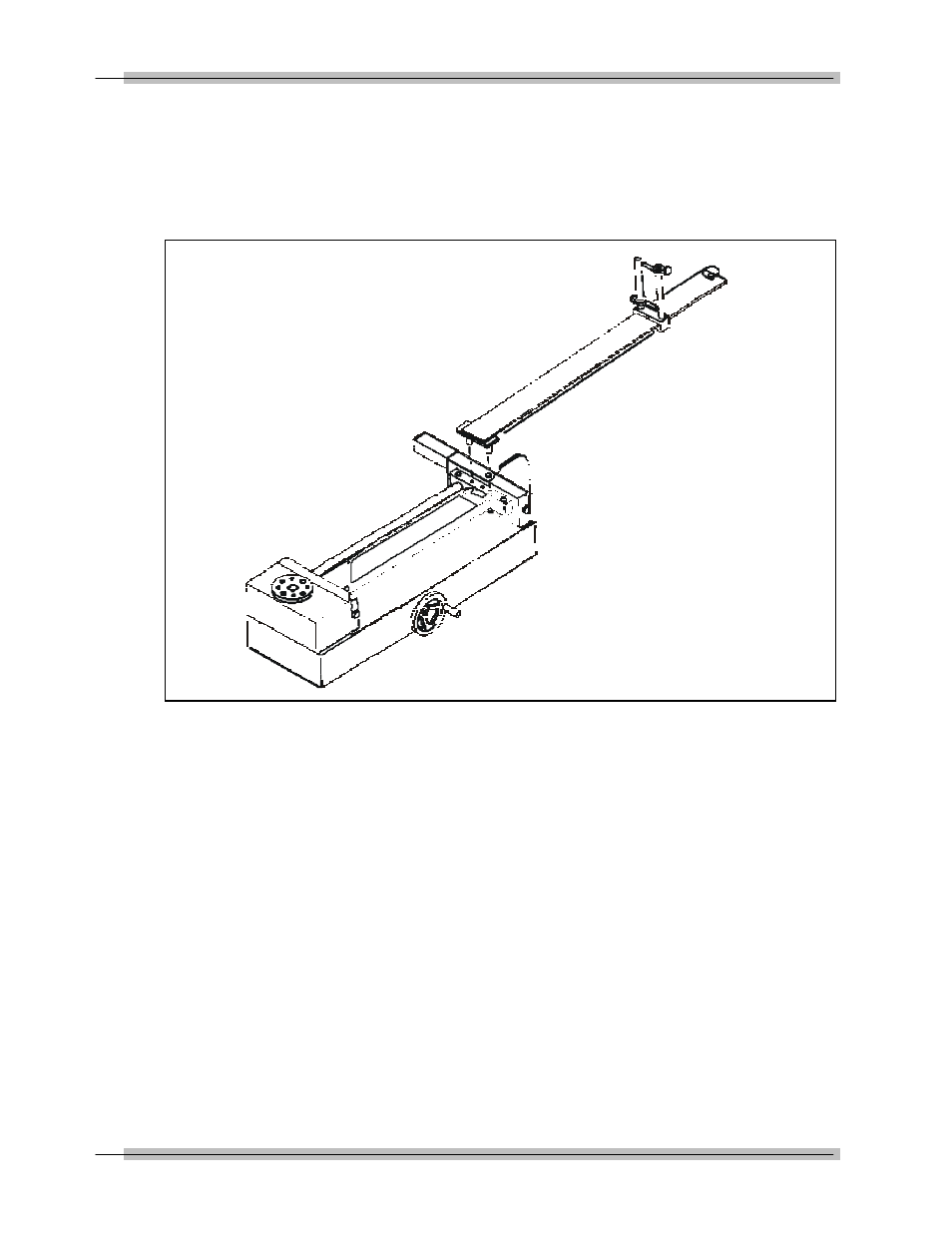

Figure 6-5: 2000-800-02 Motorized Loader Extension Arm
