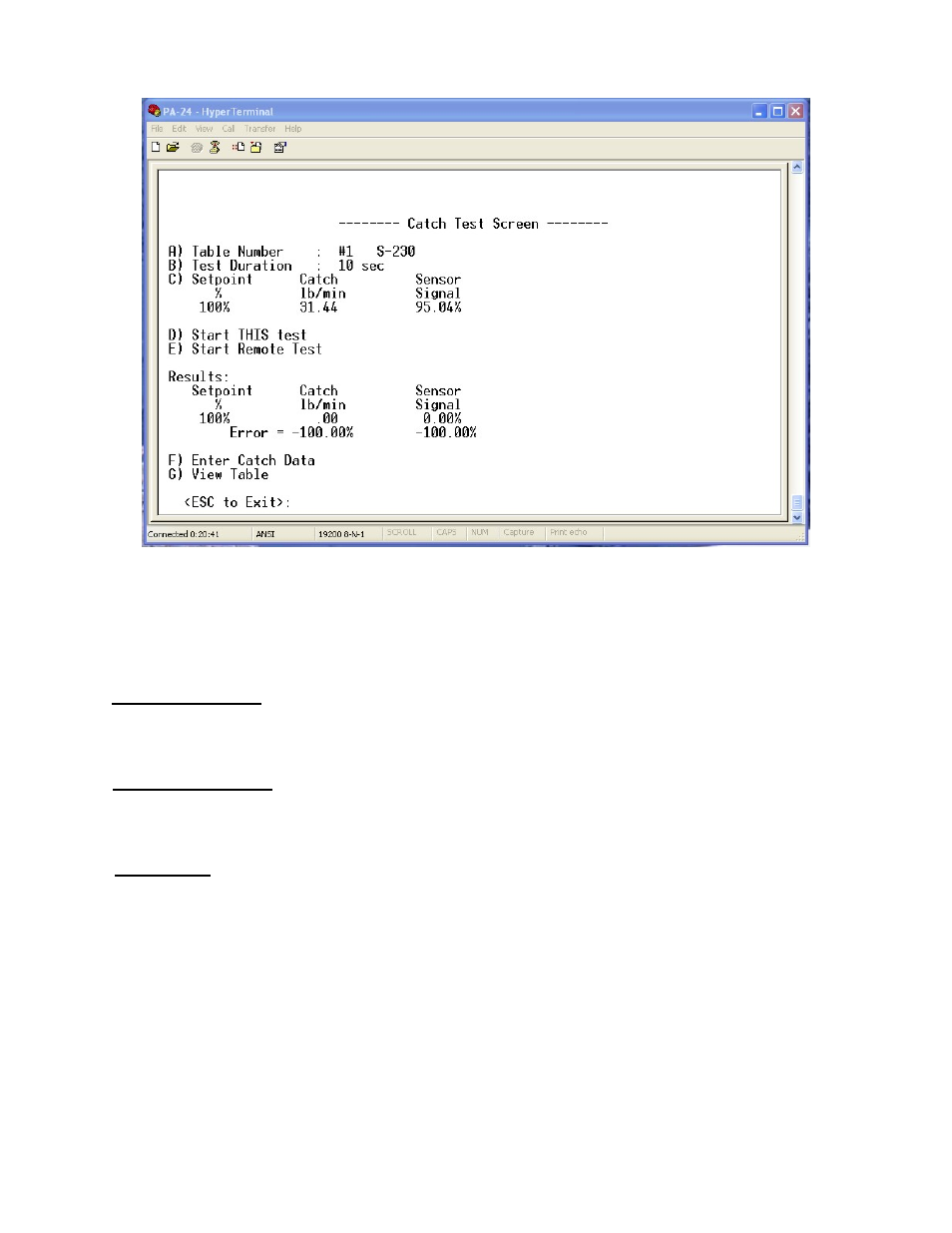

The results of the test are displayed under Results:
This will also show the error between the present value in the table and test results. If the test
results are valid, select F) to enter the data.
F) Enter Catch Data
Purpose: Select to enter test results into memory. Failing to select F) after each test re-
sults in data loss, because it is not automatically stored in memory after each test.
E) Start Remote Test
Purpose: Start the selected test remotely using the Enable signal to the valve. This will
test the valve under actual flow conditions.
G) View Table
Purpose: Displays the present values stored in present Table.
Note: All setpoint values are factory set to requested shot size and flow rate.
