24 vdc series magnavalve
24 Vdc Series MagnaValve®
Magnetic Media Valve for Air Blast Machines
Model Flow Rate Range
576-24
.2 - 2 lb/min (.1 - 1 kg/min)
577-24
1 - 10 lb/min (.45 - 4.5 kg/min)
578-24
3 - 30 lb/min (1.4 - 13.5 kg/min)
579-24
10 - 100 lb/min (4.5 - 45 kg/min)
580-24
20 - 200 lb/min (9 - 90 kg/min)
590-24
30 - 300 lb/min (13.6 - 136 kg/min)
Features
• 24 Vdc
• ±5% full-scale accuracy*
• Normally closed
• No moving parts
• Meets SAE AMS 2430 and 2432 specifications

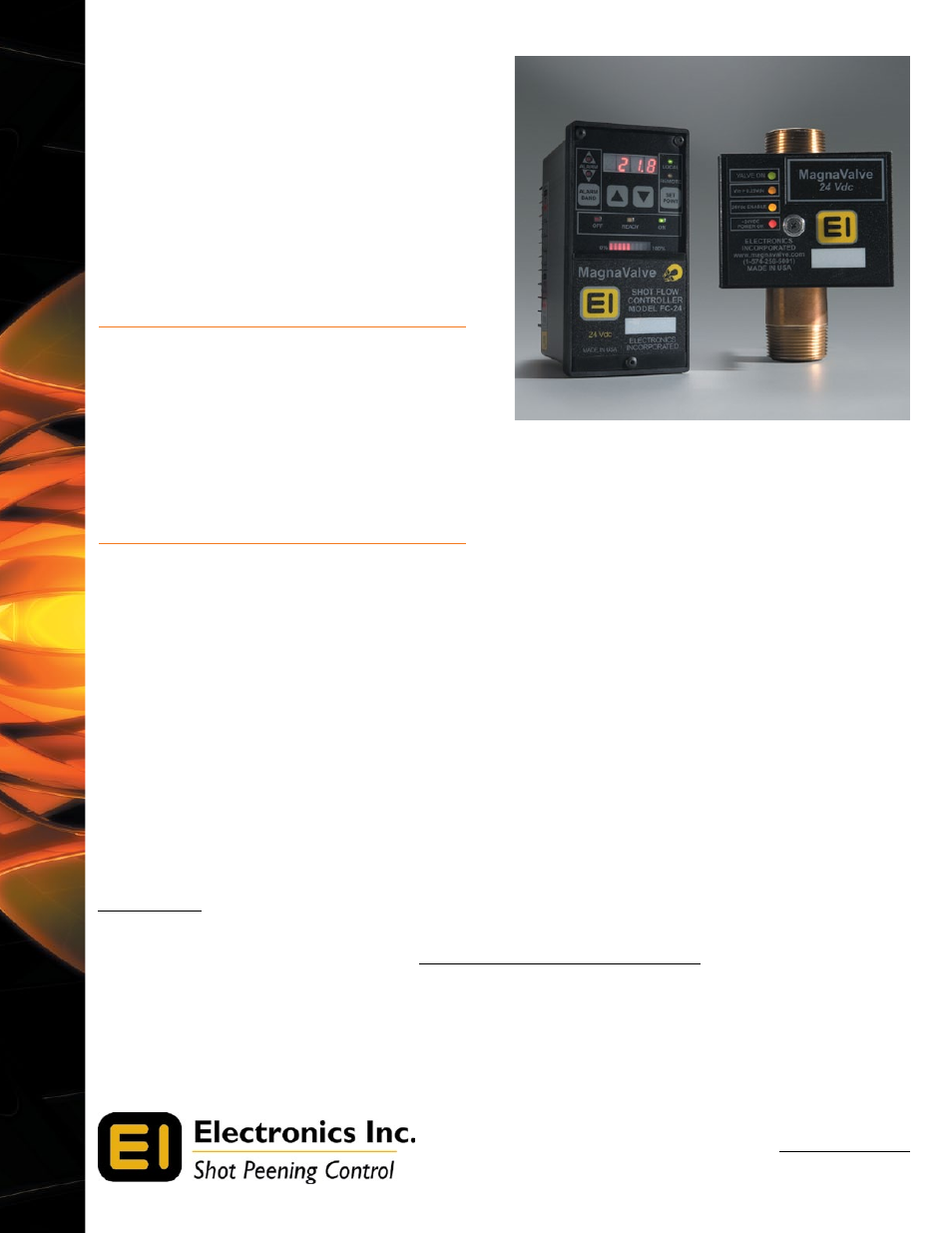

The FC-24 Controller (left) and MagnaValve (right)
work together to provide accurate and repeatable
ferrous media flow rates for air blast machines.
Electronics Inc.
56790 Magnetic Drive
Mishawaka, Indiana 46545 USA
(574)256-5001
Specification is subject to change without notice
Rev 7/12
MagnaValve is a registered trademark of Electronics Inc.
Description
The MagnaValve® is a normally closed magnetic valve that regulates the flow of steel shot and cut wire
media in air blast machines. The MagnaValve’s built-in sensor measures flow rate and, together with the
FC-24 Controller (sold separately), provides accurate and repeatable flow rates. The MagnaValve can be
factory calibrated for various media types and sizes.
The MagnaValve’s maintenance-free construction includes a strong and stable rare earth permanent magnet
for normally closed operation and an electromagnet for controlling shot flow rates. When no power is
applied to the MagnaValve, the permanent magnet stops all flow. With power applied, the magnetic field
is neutralized and shot is allowed to flow through the valve. If the power is interrupted for any reason,
the permanent magnet in the valve securely holds the shot. The valve is factory calibrated and results are
supplied upon request.
The MagnaValve provides reliable, repetitive, and consistent media flow rates for shot peening and blast
cleaning applications. The MagnaValve makes it easy to document flow rates and establish or repeat a good
set-up. The valve meets the requirements of SAE AMS 2430, AMS 2432 and other aerospace and commercial
specifications.
Clear and comprehensive installation manuals simplify installation for the 24 Vdc Series MagnaValves and the
. In addition, the products are supported by the Electronics Inc. application engineering staff.
*Higher accuracy available upon request
FC-24 Controller datasheet in PDF is available for download a.
