Electronics 500-P - Manual

ELECTRONICS INCORPORATED
SHOT PEENING TECHNOLOGY
MODEL 500P MagnaValve
www.electronics-inc.com 500Pdata.pub 8/19/2008
999215
• Wheel systems
• Variable flow rates
• No moving parts
• Steel shot
• Steel grit
• ±2% Accuracy
• Built-in flow sensor
• Linear compensator
• 200-1200 lbs/min range
• Normally closed
• Requires FC Flow Controller

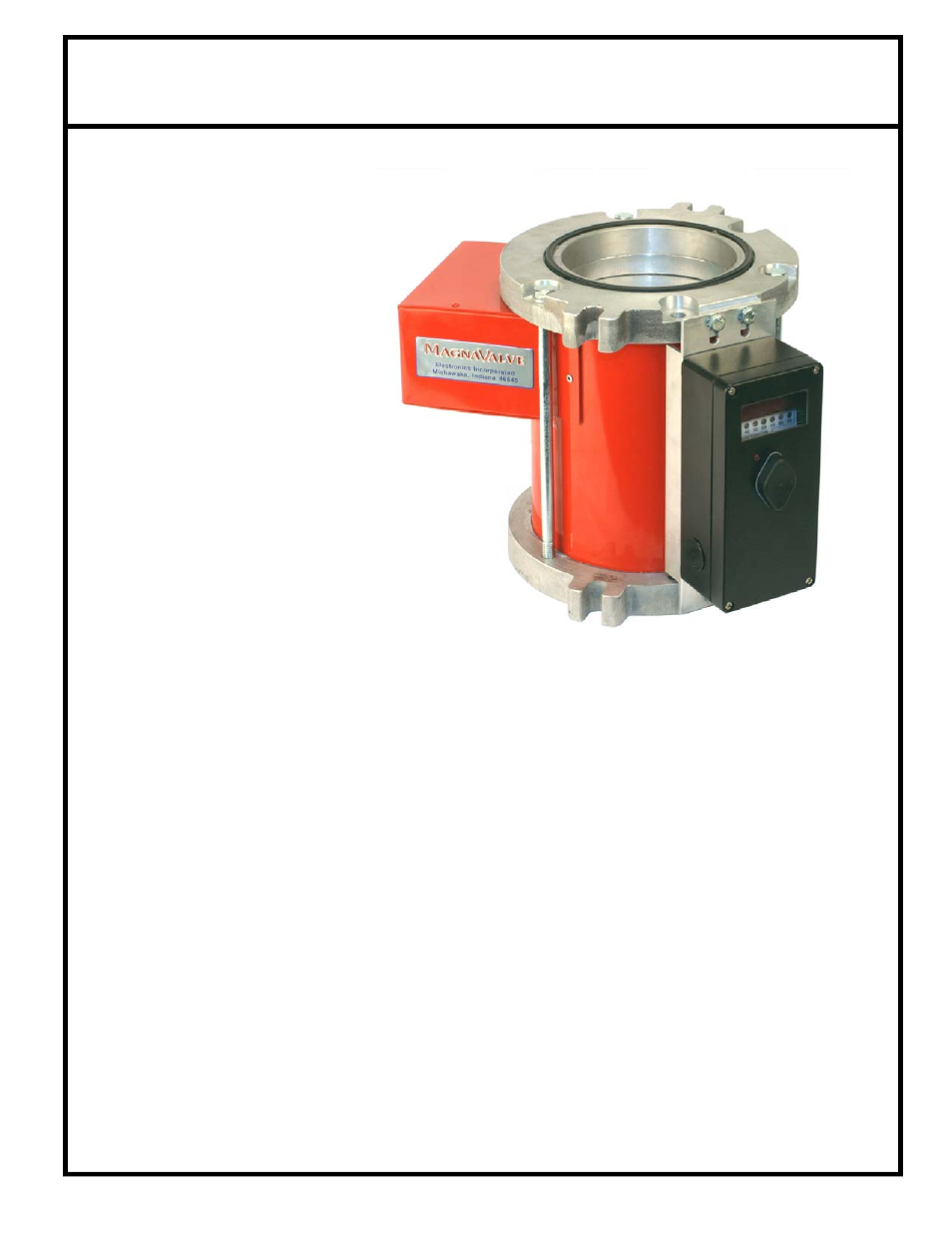

The Model 500P MagnaValve is a normally closed magnetic valve suitable for regula-
tion of cast steel shot and includes a built-in sensor for accurate measurement of flow
rate. Used with the Model FC Shot Flow Controller, the MagnaValve will provide accu-
rate and repeatable flow rates over a 200 - 1200 pounds-per-minute flow range.
The valve construction includes a permanent magnet for normally closed operation
and an electromagnet for controlling shot flow rates. By regulating the voltage to the
electromagnet, any desired flow rate may be achieved. When power is off, the valve
will hold shot due to the permanent magnet. The pre-amp includes a 9-stage linearity
compensator to achieve ±2% accuracy.
For use with stainless steel cut-wire shot contact the factory. The valve will work with
some of the larger sizes of stainless steel cut-wire shot.
The 500P will NOT work with stainless steel cast shot.
