A) Table Number:
Purpose: Allows the user to change to 1 of 5 tables for data entry.
B) Test Duration:
Purpose: When selected, this will toggle to 10, 20, 30, and 60-second flow tests.
C) Setpoint:
Purpose: This selects the setpoint percentage for the testing. This will display the present
setpoint from the list starting with the highest. It will show the latest catch weight in the list
and the sensor signal measured during the test.
D) Start THIS test:

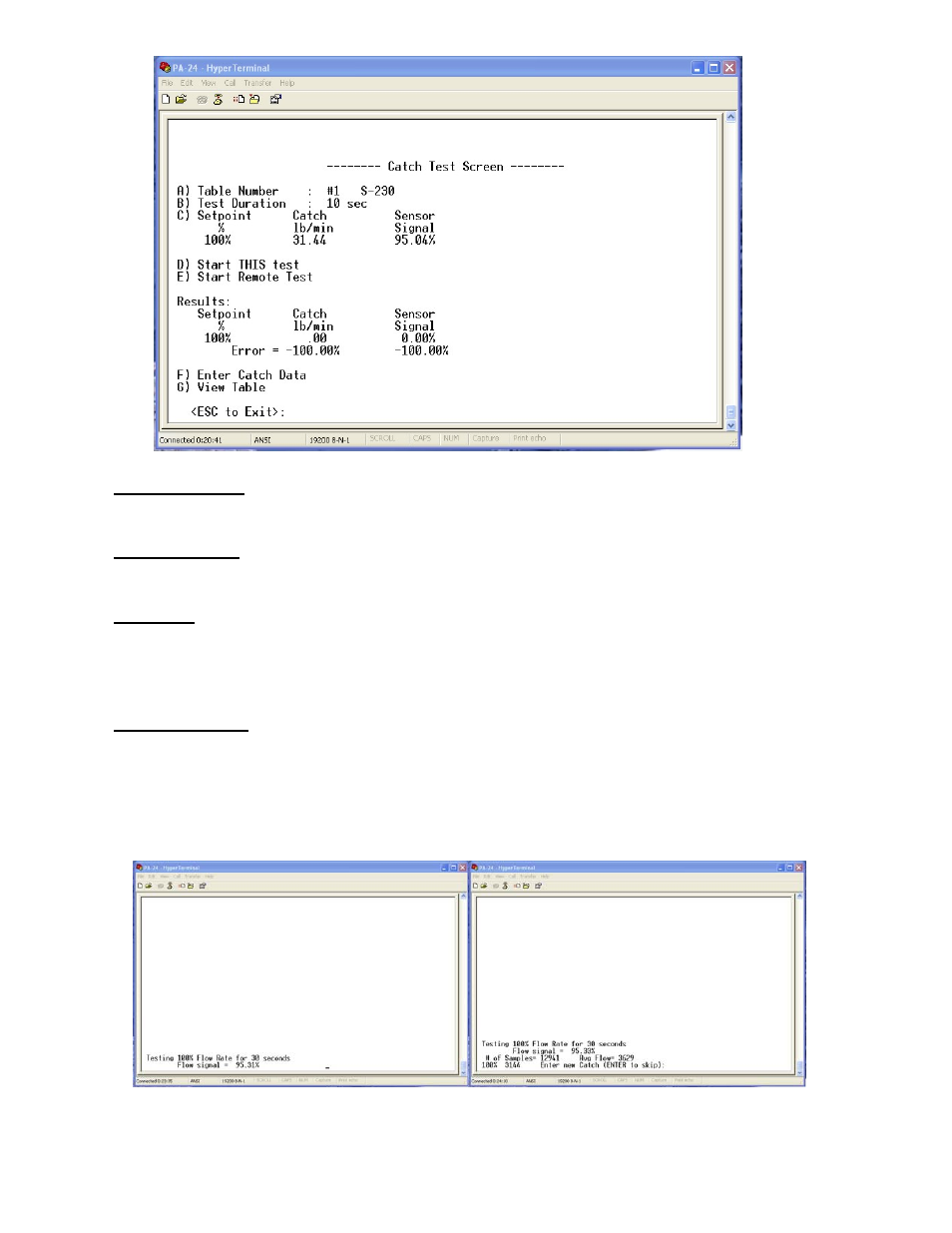

Purpose: Activating this function starts the valve flowing at the applied setpoint for the re-
quested amount of time. The following screen will appear during the test.
When prompted at the end of the catch test, enter the actual weight caught and press enter.
This returns to the following screen.
