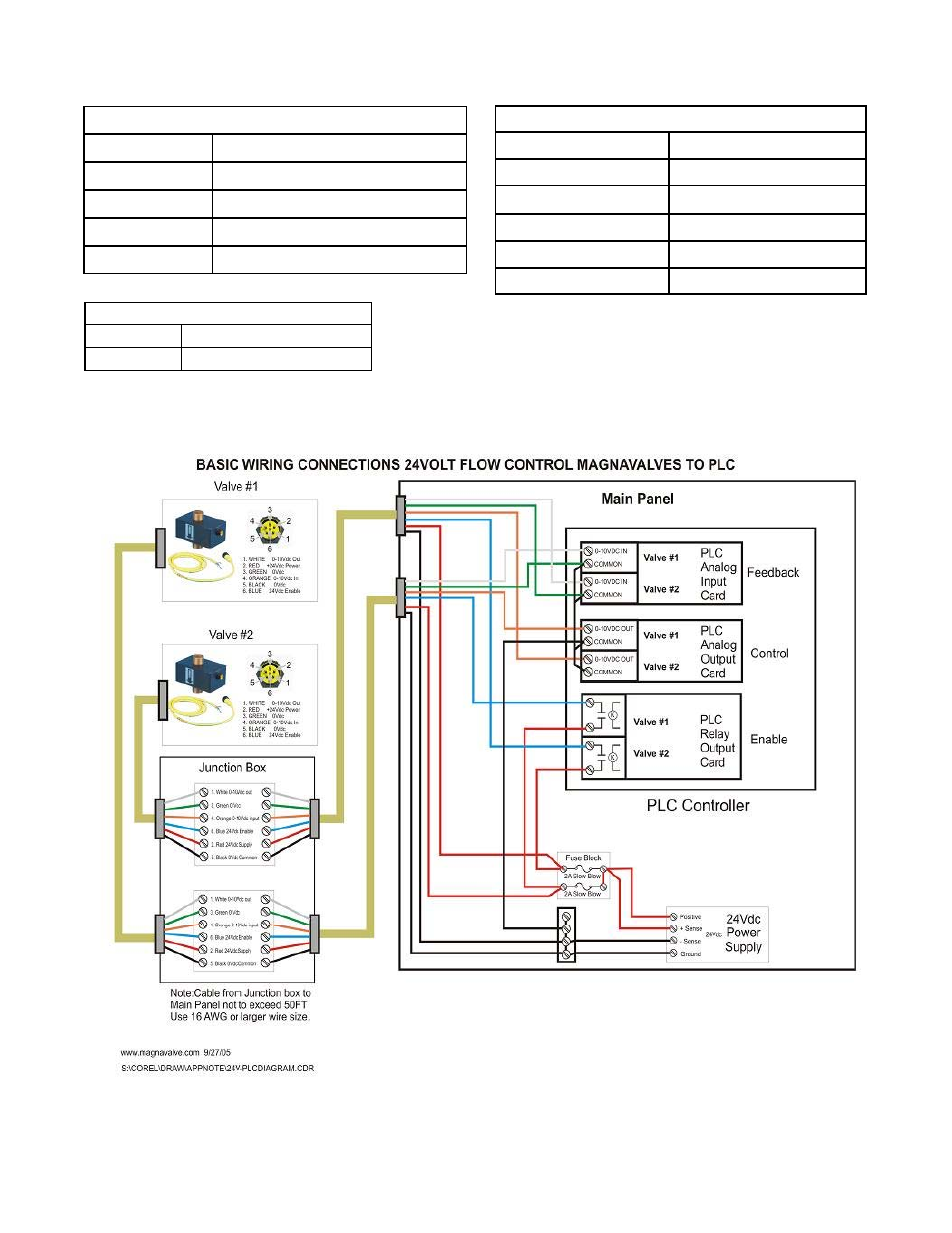

GENERAL SPECIFICATIONS FOR 24V SERIES MAGNAVALVES
SENSOR
Display LED’S +24V Power
Enable Command input, Valve ON
Output 0 - 10Vdc
Adjustments Zero, Span, Pulse Rate
Accuracy See MagnaValve Datasheet
*Using S-110 Cast Steel Shot
See MagnaValve Data Sheet for more Details
CONTROL
Input 0-10Vdc Into 100K
Enable 24Vdc @ 10mA
VALVE
Power +24Vdc @ 2A (50VA)
Calibration 3 - 30 lbs/min
Max. Pressure 100 PSI
Media Steel shot
Mode Normally closed
Temp. Range 40 - 120 F/ 5 - 50 C
