Electronics 590-24 User Manual
Page 20
20

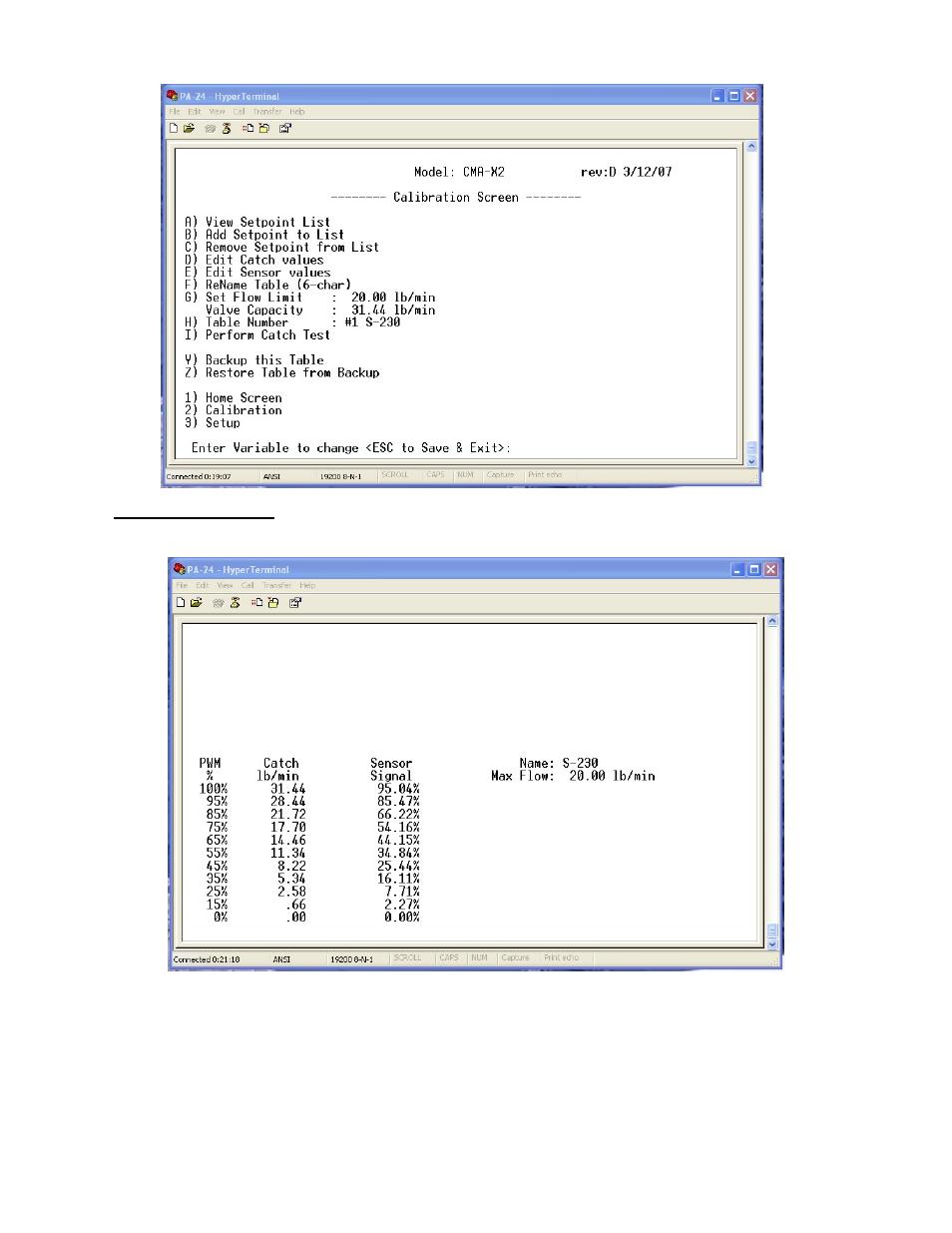

Press 2 and the following screen appears.
A) View Setpoint List
Displays the present values stored in the Table. The following screen will appear.
This displays the present table name (S-230) and maximum flow setting. These values may be
copied and pasted into an Excel spreadsheet or text file for storage or data logging.
PWM:
The percentage of valve opening.
Catch lb/min.:
The actual weight caught in one minute.
Sensor signal:
The percent of measured signal during the catch test.
