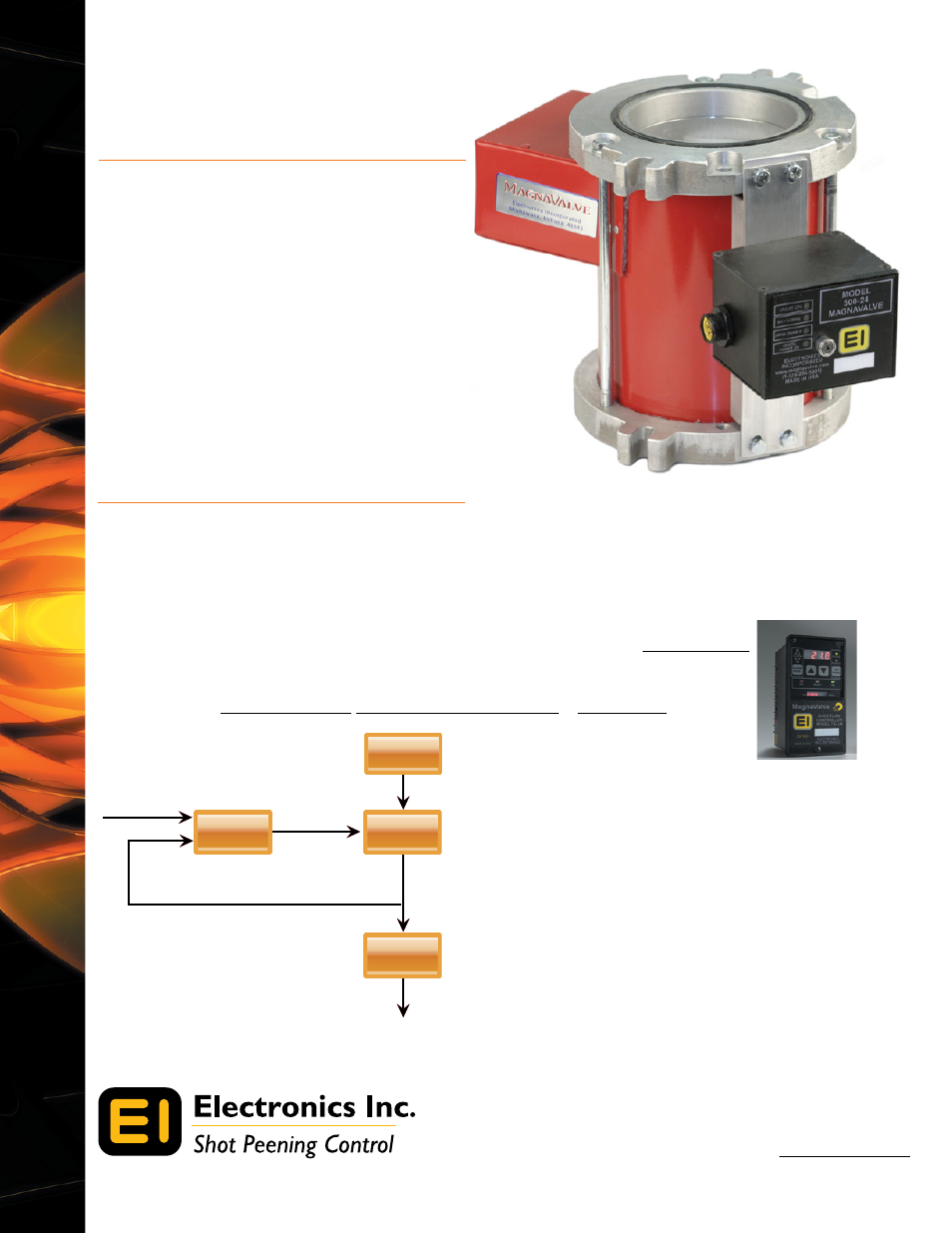

500-24 MagnaValve®

Steel Shot Media Valve for Wheel Blast Machines

Features

• Flow rate range of 120 - 1,200 lb/min (54.4 - 544 kg/min)

1

• ±5% full-scale accuracy

2

• Flow control for wheels up to 25 Hp
• Built-in flow sensor
• Variable flow rates
• Normally closed
• No moving parts
• Includes 6’ plug and cable
• 24 Vdc
• CE compliant

1) Flow rate based on S230 cast steel shot
2) ±3 full-scale accuracy available with the 500-24B MagnaValve

Electronics Inc.

56790 Magnetic Drive

Mishawaka, Indiana 46545 USA

(574)256-5001

www.electronics-inc.com

Specification is subject to change without notice

Rev 12/13

MagnaValve is a registered trademark of Electronics Inc.

Description

The MagnaValve® is a normally closed magnetic valve that regulates the flow of steel shot and grit in wheel blast

machines. The MagnaValve’s maintenance-free construction includes a strong and stable rare earth permanent

magnet for normally closed operation and an electromagnet for controlling shot flow rates. With power applied to the

MagnaValve, the magnetic field is neutralized and shot is allowed to flow through the valve. When no power is applied

to the MagnaValve, the permanent magnet stops all flow. If the power is interrupted for any reason, the permanent

magnet in the valve securely holds the shot.
The MagnaValve’s built-in sensor measures flow rate and when coupled with the EI FC-24 Controller

(sold separately), it provides accurate and repeatable flow rates in a closed-loop system, meeting the

requirements of AMS 2430, AMS 2432 and other aerospace standards.

Downloads available at www.electronics-inc.com: 500-24 MagnaValve Instruction Manual | FC-24 Data Sheet

FC-24 Controller
(sold separately)

Closed Loop System with FC-24 Controller

FC-24

Controller

Regulated Media Flow

Media Flow Rate Signal

from Sensor in MagnaValve

Control Signal

Desired

Media Flow Rate

Media Accelerated

500-24

MagnaValve

Wheel

Media

Hopper
