3. Bin Assembly
52
PNEG-2400 CFL Commercial Farm 4" Corrugation Externally Stiffened Grain Bin
Refer to 4" commercial tank bolting requirements for complete bolt usage on
and
.

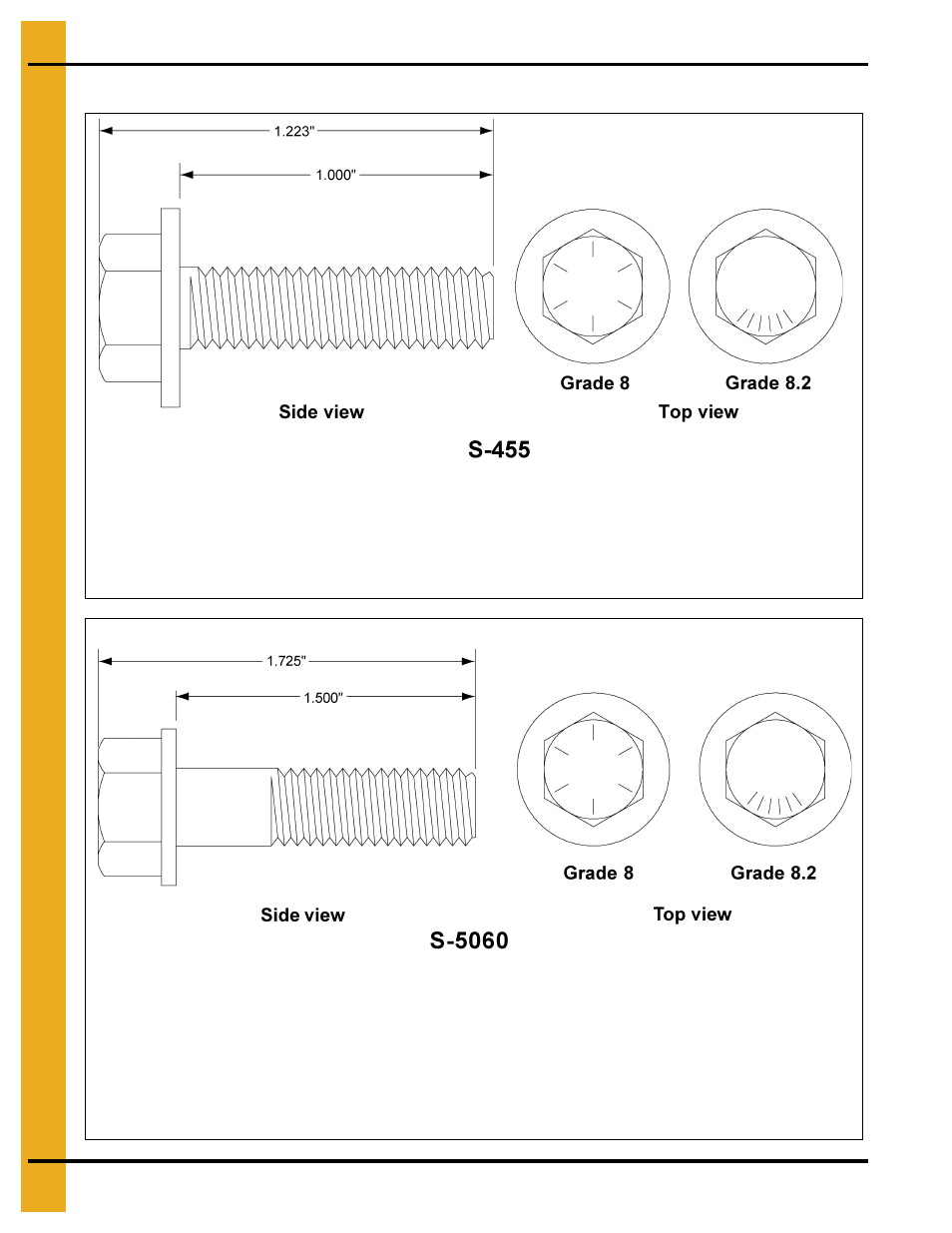

0.375" x 1.000" Pre-assembled with a steel backed sealing washer.
This bolt is used in horizontal and vertical seams for 14 gauge through 8 gauge sidewall
to attach the sheets to each other and horizontal seams in 6-5 gauge. It is also used to attach the
stiffener to the sidewall sheet for up to 10 gauge sidewall. It is not used to splice the stiffeners
together on the flanges where they connect to each other or the splice plates.
NOTE: 3/8" x 1-1/2" Bolts (S-5060) are provided for laminated stiffeners and splices.
0.375" x 1.500" Pre-assembled with a steel backed sealing washer.
This bolt is used in vertical seams of 6-5 gauge sidewall and overlap joints 9-8 gauge. It is also used
to bolt stiffeners to 9 gauge and thicker sidewalls. The stiffener usage is only to attach the stiffener
and the splice plate to the sidewall. A different bolt, without a sealing washer, is used where the
stiffener bolts to the splice plates. It is used to connect the stiffener to the sidewall at locations
where a splice plate is used to connect the stiffener and to connect laminated stiffeners to the
sidewall sheets.
