8. Installation
50
PNEG-1510 Top Dry 24', 30' and 36' Manual Batch
24' Leveling Band Location
Position leveling bands as shown in
.
Use two (2) 5/16" x 3/4" bin bolts to attach bands to posts. Also use 5/16" x 3/4" bin bolts to join band
sections. Note that band sections connect to each other only at endmost holes until completing the
circle where an overlap may occur.

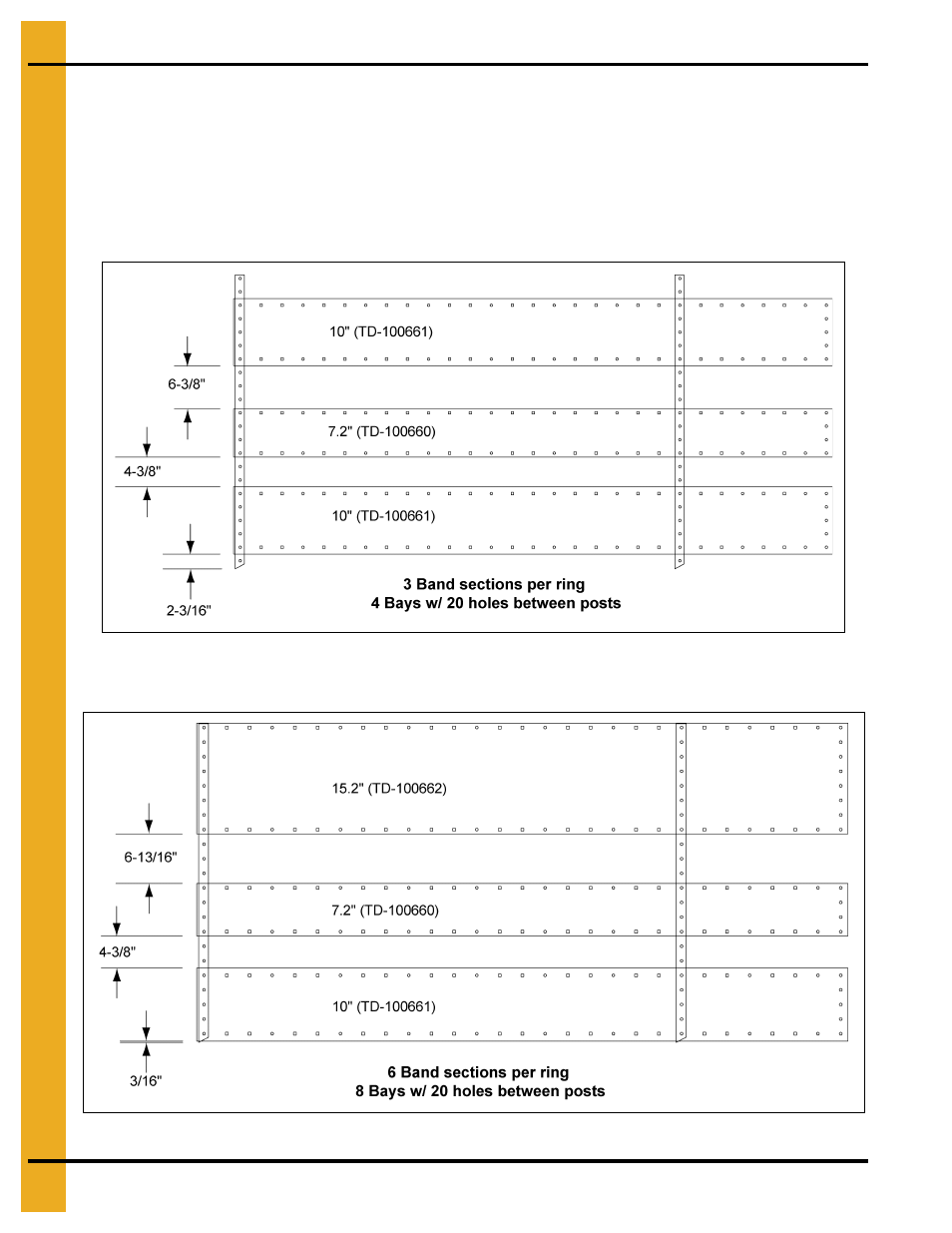

Inner Leveling Bands
Figure 8P
Outer Leveling Bands
Figure 8Q
