7. “C” Channels
PNEG-1510 Top Dry 24', 30' and 36' Manual Batch 37

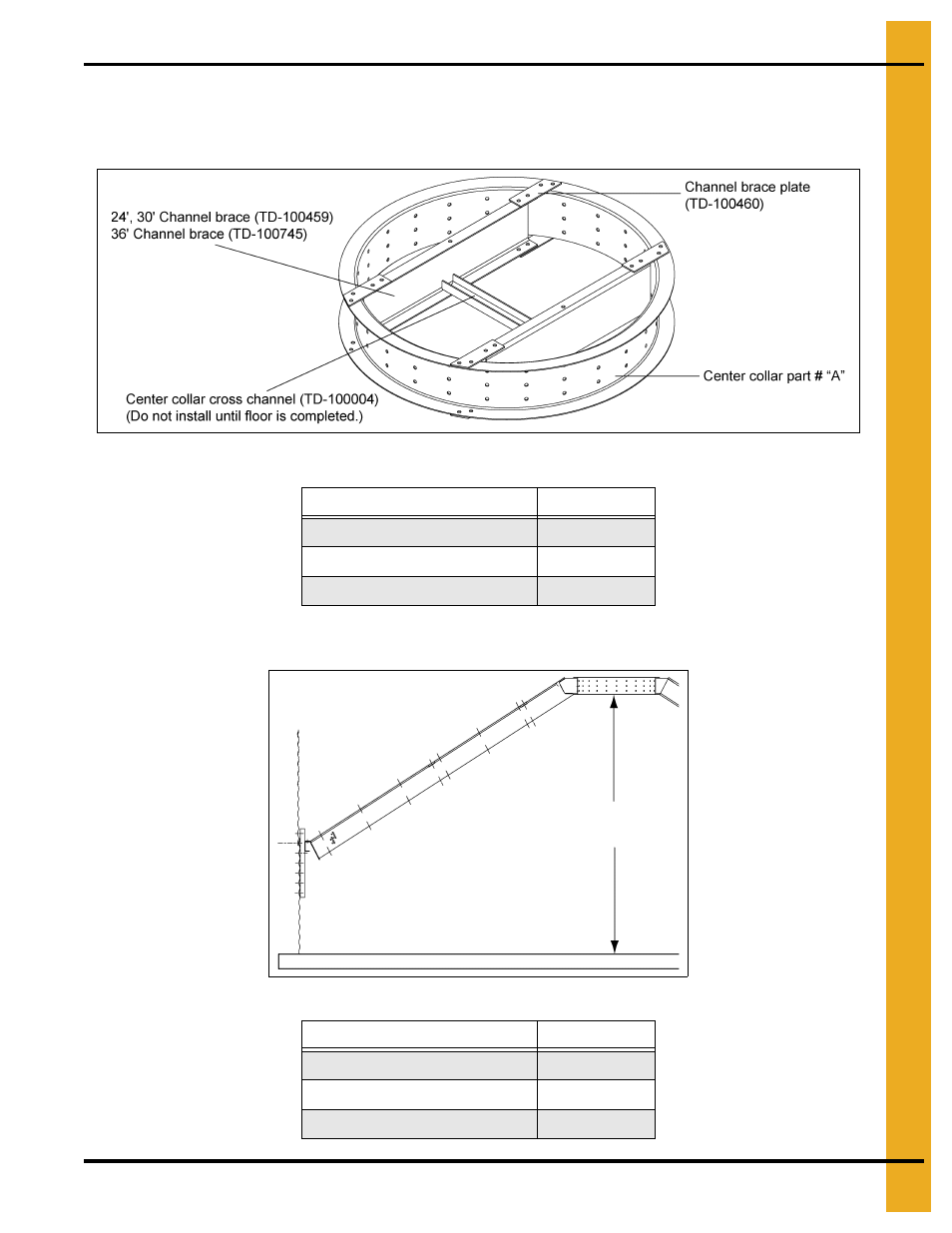

Center Collar Assembly
Add channel braces and brace plates to center collar as shown using 3/8" x 1" bolts and nuts. (Do not
attach cross channel until floor is done if using a jack on center collar.)
(See Figure 7D.)
Figure 7D
Position the center collar at the center of the bin and raise it to the required height per diameter of tank.
Height is measured from the bottom of the center collar to the concrete.
(See Figure 7E.)
Figure 7E
Nominal Diameter of Tank (Ft.) Part # “A”
24' TD-100632
30' TD-100634
36' TD-100730
Nominal Diameter of Tank (Ft.) Dimension “A”
24' 8' - 9-1/2"
30' 10' - 5-3/16"
36' 11' - 8-3/4"
Dimension “A”
(See Chart below.)
