7. “C” Channels
36 PNEG-1510 Top Dry 24', 30' and 36' Manual Batch
“C” Channel Installation
Fasten the rolled “C” eave members to the wall brackets in the upper two (2) holes of the top set of
three (3) holes leaving the bolts loose.
Install the splice plates at the rolled “C” eave member seams using 3/8" x 1" flanged hex bolts and nuts.
Install bolts as shown
in Figure 7C . Tighten all bolts.

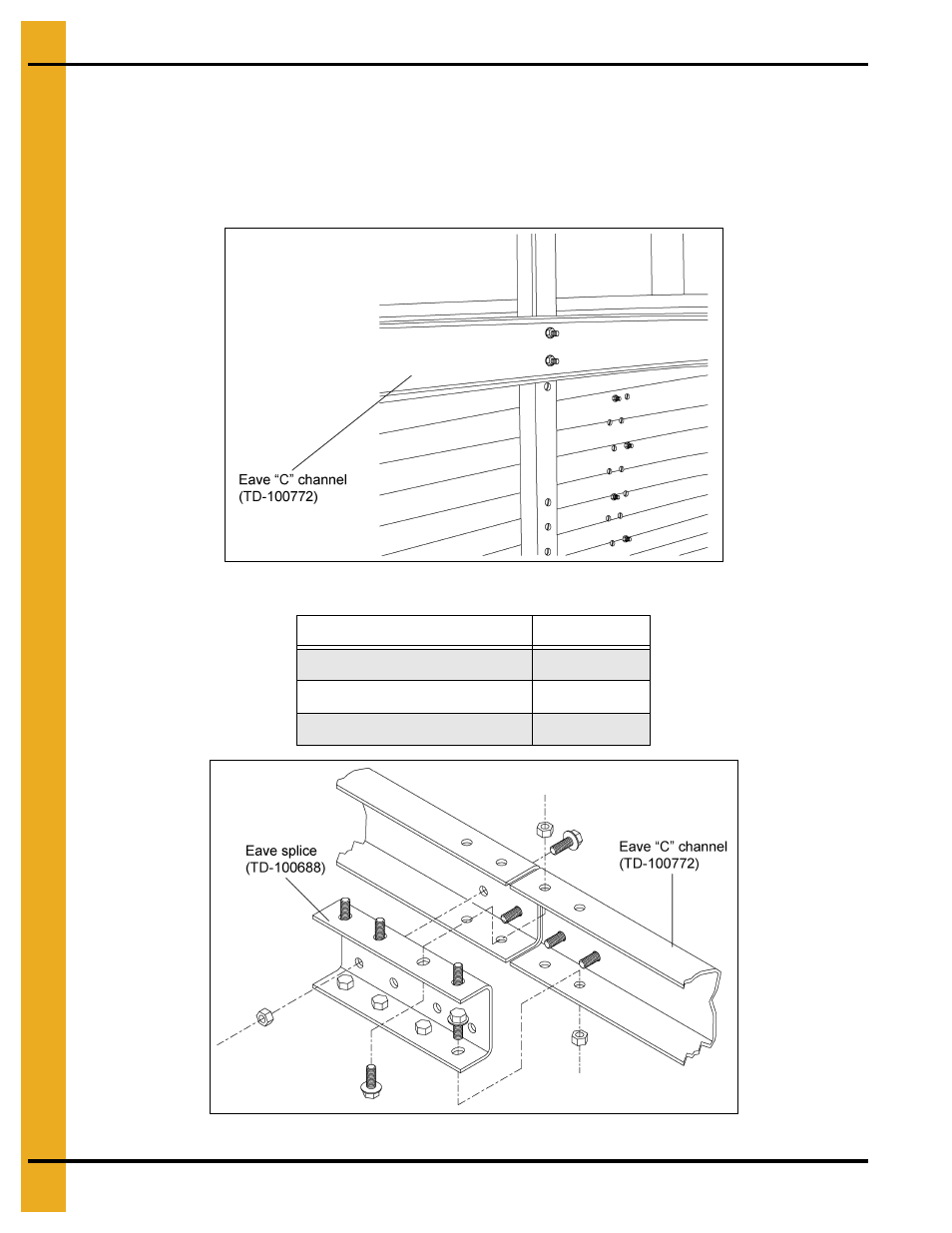

Figure 7B “C” Channel Attachment
Figure 7C
Nominal Diameter of Tank (Ft.) Part # “A”
24' TD-100678
30' TD-100643
36' TD-100731
