4. Specifications
PNEG-1717 CE Approved GSI/FFI Portable Dryer Manual 25

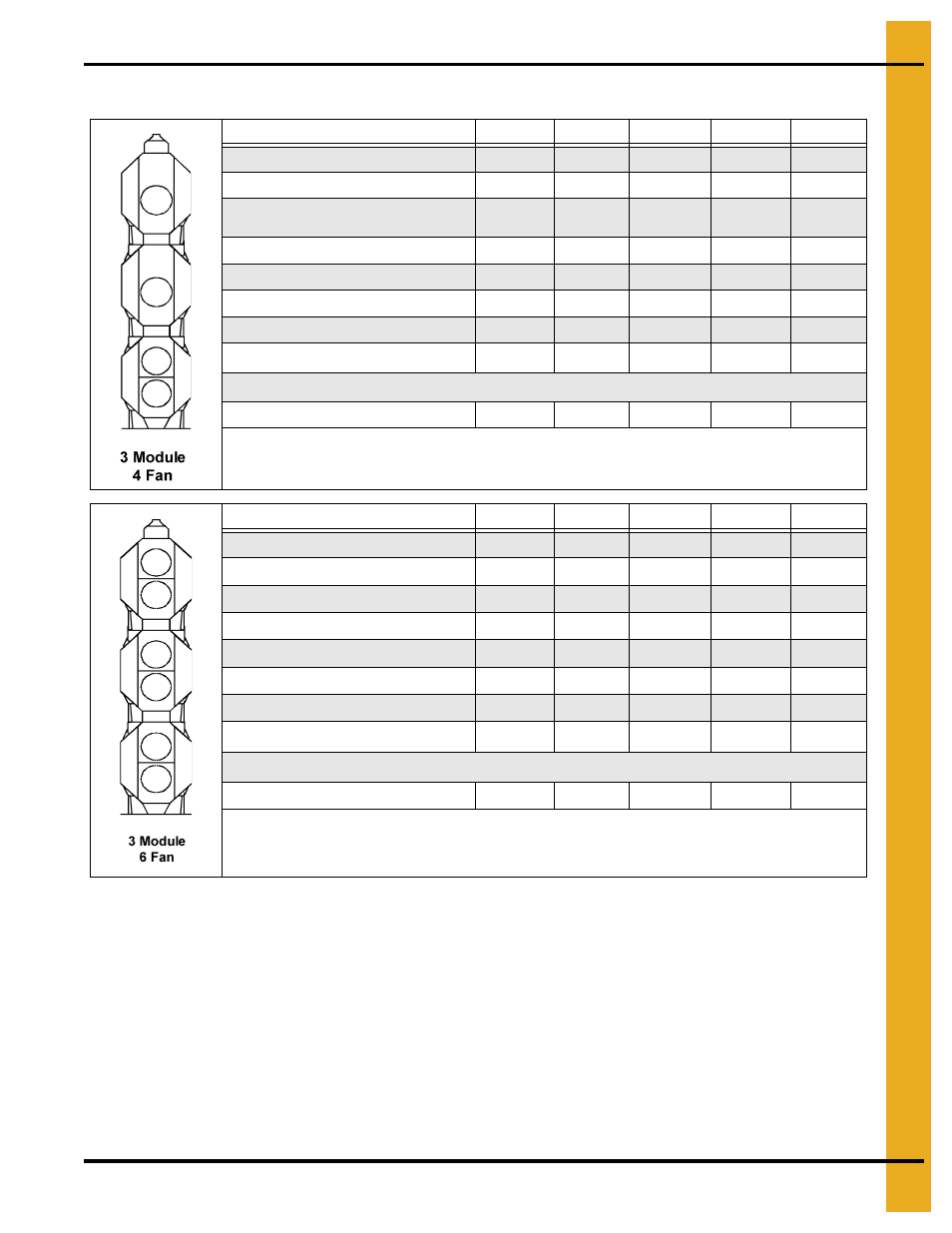

All Stack Specifications (Continued)
14' 18' 20' 22' 26'
Total Holding Capacity (Bushels) 1074 1381 1534 1688 1995
Grain Column Holding Capacity (Bushels) 1022 1314 1460 1606 1898
Fans
28" 10-13 HP
40" 15 HP
36" 10-13 HP
42" 20 HP
36" 15 HP
42" 25 HP 36" 15 HP
42" 30 HP 40" 25 HP
42" 40 HP
Top Auger 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 7.5 HP 8" Dia. 7.5 HP 8" Dia. 10 HP
Capacity (BPH) 3800 3800 3800 3800 3800
Bottom Auger 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 7.5 HP 8" Dia. 7.5 HP 8" Dia. 10 HP
Meter Roll Drive SCR, 1/3 HP SCR, 1/3 HP SCR, 1/3 HP SCR, 1/3 HP SCR, 1/3 HP
Capacity - Maximum Rate 1 (BPH) 1960 2520 2800 3080 3640
Electrical Load (Fans, Top and Bottom Augers 2 )
3 Phase, 380-400 Volt 80 91 123 133 192
1 Actual discharge rate is controlled by meter roll speed adjustment, at 5% to 100% of maximum rate.
2 Excludes auxiliary load and unload conveyor equipment.
14' 18' 20' 22' 26'
Total Holding Capacity (Bushels) 1074 1381 1534 1688 1995
Grain Column Holding Capacity (Bushels) 1022 1314 1460 1606 1898
Fans 28" 10-13 HP 36" 10-13 HP 36" 15 HP 36" 15 HP 40" 25 HP
Top Auger 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 7.5 HP 8" Dia. 7.5 HP 8" Dia. 10 HP
Capacity (BPH) 3800 3800 3800 3800 3800
Bottom Auger 8" Dia. 5 HP 8" Dia. 5 HP 8" Dia. 7.5 HP 8" Dia. 7.5 HP 8" Dia. 10 HP
Meter Roll Drive SCR, 1/3 HP SCR, 1/3 HP SCR, 1/3 HP SCR, 1/3 HP SCR, 1/3 HP
Capacity - Maximum Rate 1 (BPH) 1960 2520 2800 3080 3640
Electrical Load (Fans, Top and Bottom Augers 2 )
3 Phase, 380-400 Volt 97 97 137 137 218
1 Actual discharge rate is controlled by meter roll speed adjustment, at 5% to 100% of maximum rate.
2 Excludes auxiliary load and unload conveyor equipment.
