PowerBoard ® – Installation Instructions
Rev. T 0713 75113 pg. 9

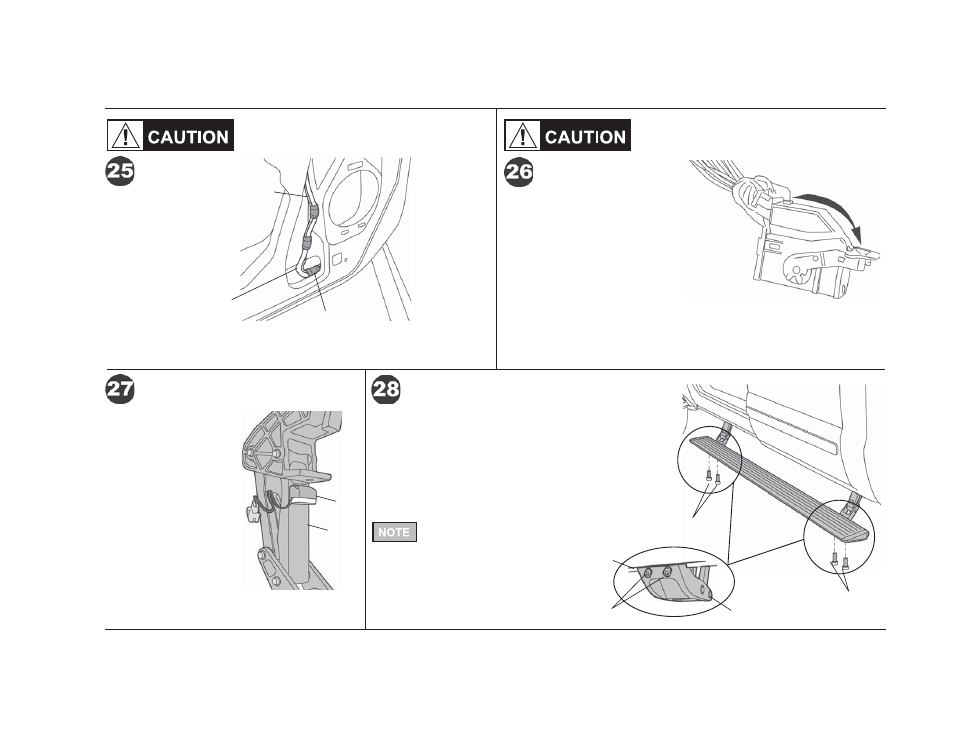

Secure the wire to the
Switch Plate Wiring
Harness with Wire Ties
and Electrical Tape.
Unsecured wire may interfere with
window operation.
Electrical Tape
Connecting
Wire
Switch Plate
Wiring Harness
Secure Wires
Make sure that the plug lever is fully
opened before reattaching the switch
plate. Reassemble the door.
A plug lever that is not fully open
may interfere with window and
power step operation.
Plug Lever Check
Clean the outboard surface
of the of the Linkage below
the bottom mounting bolt.
Peal the adhesive liner off
the back of the Light and
fi rmly press it 1/8" below
the mounting bolt. Plug the
light into the connector with
the black and orange wires
in the wire harness. Repeat
with the other three lights.
Secure lose wires with
Cable Ties.
Install Lights
Light
Linkage
Install Running Boards
M6-1.0 x 20mm
Socket Head Bolts
Linkage
PowerBoard
M6-1.0 x 20mm
Socket Head Bolts
M6-1.0 x 20mm
Socket Head Bolts
Mount the Steps to the linkages. Slide the mounting T-Nut
into position. Install M6-1.0 x 20mm Socket Head Bolts to
secure the boards. Use a 5mm Allen Wrench to tighten the
bolts.
Make sure the board moves up and down freely by hand.
If it binds, loosen the linkage to body attachment bolts and
adjust the linkage position until the boards move freely. Do
not tighten the bolts at this time.
Tightening the
fasteners before
cycling the step several times
may create a bind, causing a
squeaking sound and preventing
the boards from retracting
completely and evenly.
