PowerBoard ® – Installation Instructions
Rev. T 0713 75113 pg. 7
Short Wire
from Harness
2003 - 2005 Vehicles Shown
Other years see Wiring Diagram for your vehicle

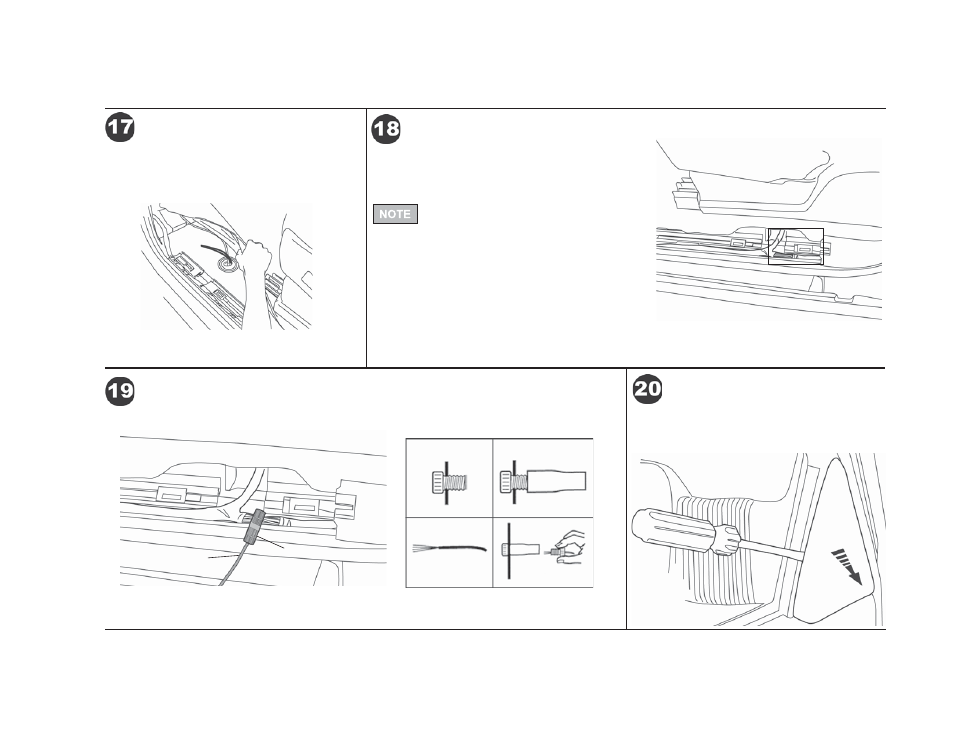

Remove the plastic trim on the door near the mir-
ror attachment.
Remove Door Trim
Pull up the carpet and thread the wires through the
fl oor panel.
Install Wires – Driver’s Side
Carefully remove wire wrap and fi nd LIGHT BLUE wire
with BLACK STRIPE (on passenger side fi nd GREEN
wire with BLACK STRIPE) to the rear of the “T” junc-
tion where wires cross under the front seat.
Connect Wires – 2003 and newer Crew Cab
See Wiring Diagrams for model years
previous to 2003.
Connect Wires – 2003 and newer Crew Cab
Use the Posi-Tap™ Connector to splice the shorter trigger wire into the wire found in Step 18.
Posi-Tap™
Posi-Tap™ Instructions
Insert Tighten
Strip 3/8" Insert and
Tighten
2003 - 2005 Vehicles Shown
Other years see Wiring Diagram for your vehicle
Posi-Tap™
Shorter Trigger Wire
