Power Cord Replacement
Power Cord Replacement
The AC line cord (power cord) is designed to be user replaceable. The
connection between the external cord and the inverter input cord is located in
the cord hanger on the side of the PrintCart.
1.
Completely unwrap the cord from the storage hanger.
2.
Lift the plug connector out of the hanger recess.
3.
Remove the cord coupling and disconnect the two cords.
4.
Obtain a proper replacement extension cord and reverse this procedure
to reinstall.
The 120VAC and 230VAC PrintCarts have different connector styles.
The 120VAC PrintCart uses a NEMA 5-15 connector (see Figure 24).
The 230VAC PrintCart uses an IEC-320 connector (see Figure 25).
The IEC 320 connector allows a variety of business machine power cables to
be used depending on the connector the user requires.

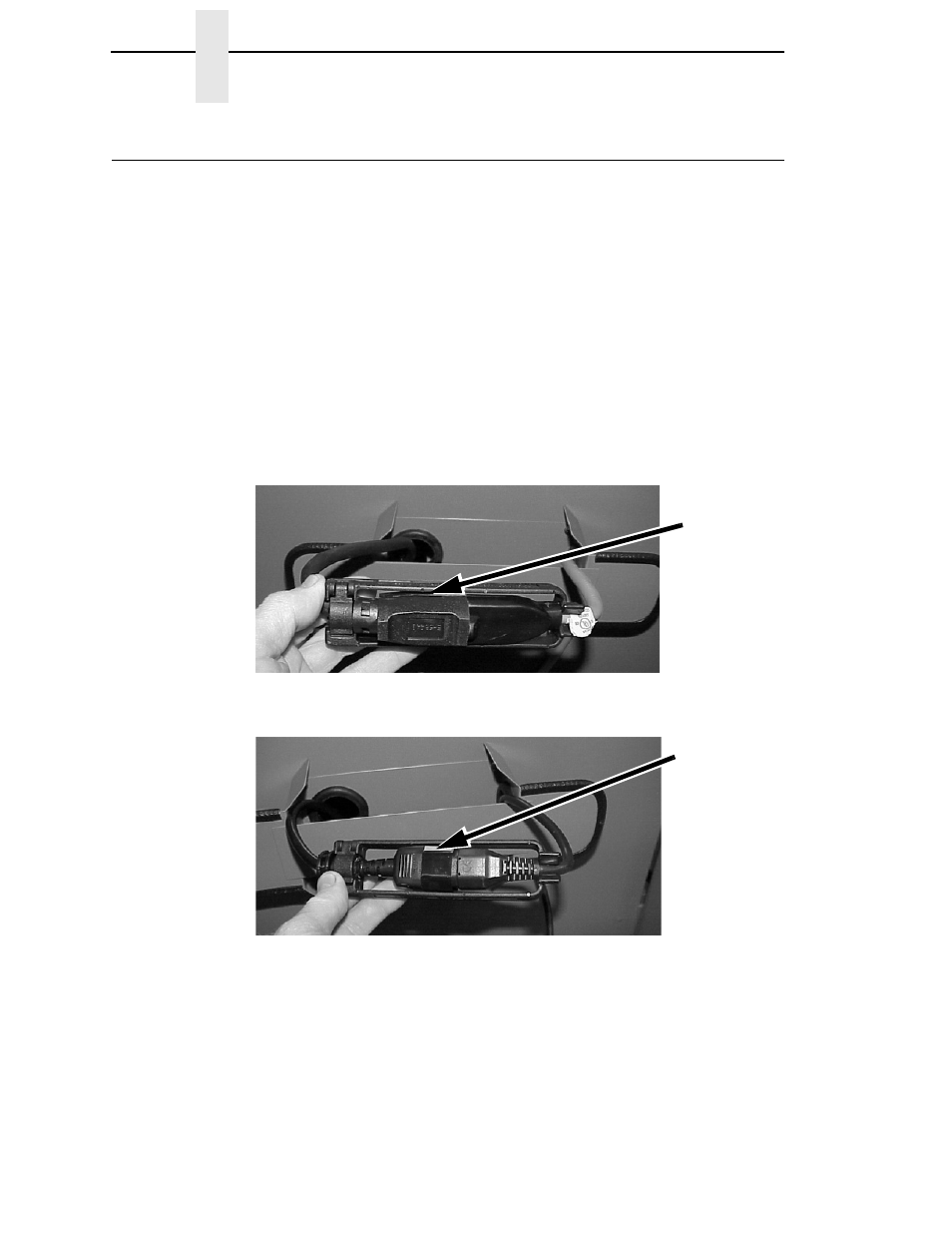

Figure 24. NEMA 5-15 Connector
Figure 25. IEC-320 Connector
NEMA 5-15
Connector
IEC-320
Connector
