Chapter 5 Power Equipment Access
7. Loosen the AC grounding lug and remove the green grounding wire that
runs to the PrintCart frame.
8. Open the front door of the PrintCart and unplug the battery main quick
disconnect.
9. Disconnect the AC input cord according to the model you have.
120V PrintCart
a. Unwind the extension cord and expose the plug connector stored
inside the cord wrap.
b. Raise and disconnect the coupled plugs.
c. Push the plug through the grommet hole, back into the power
compartment.
d. Pull the short input cord and wrap it over the inverter to make sure it
does not catch.
230V PrintCart
a. Unplug the IEC 320 input plug from the front of the inverter and hang
the cable out of the way over the door.
10. Remove the two restraining bolts located on each side of the PrintCart
that hold the equipment subpallet.
11. Slide the equipment pallet out the rear door far enough to get a good grip
on it. Be prepared to support 25 lbs of the subpallet.
12. Pull the subpallet out the remaining distance and lift the unit from the
PrintCart.

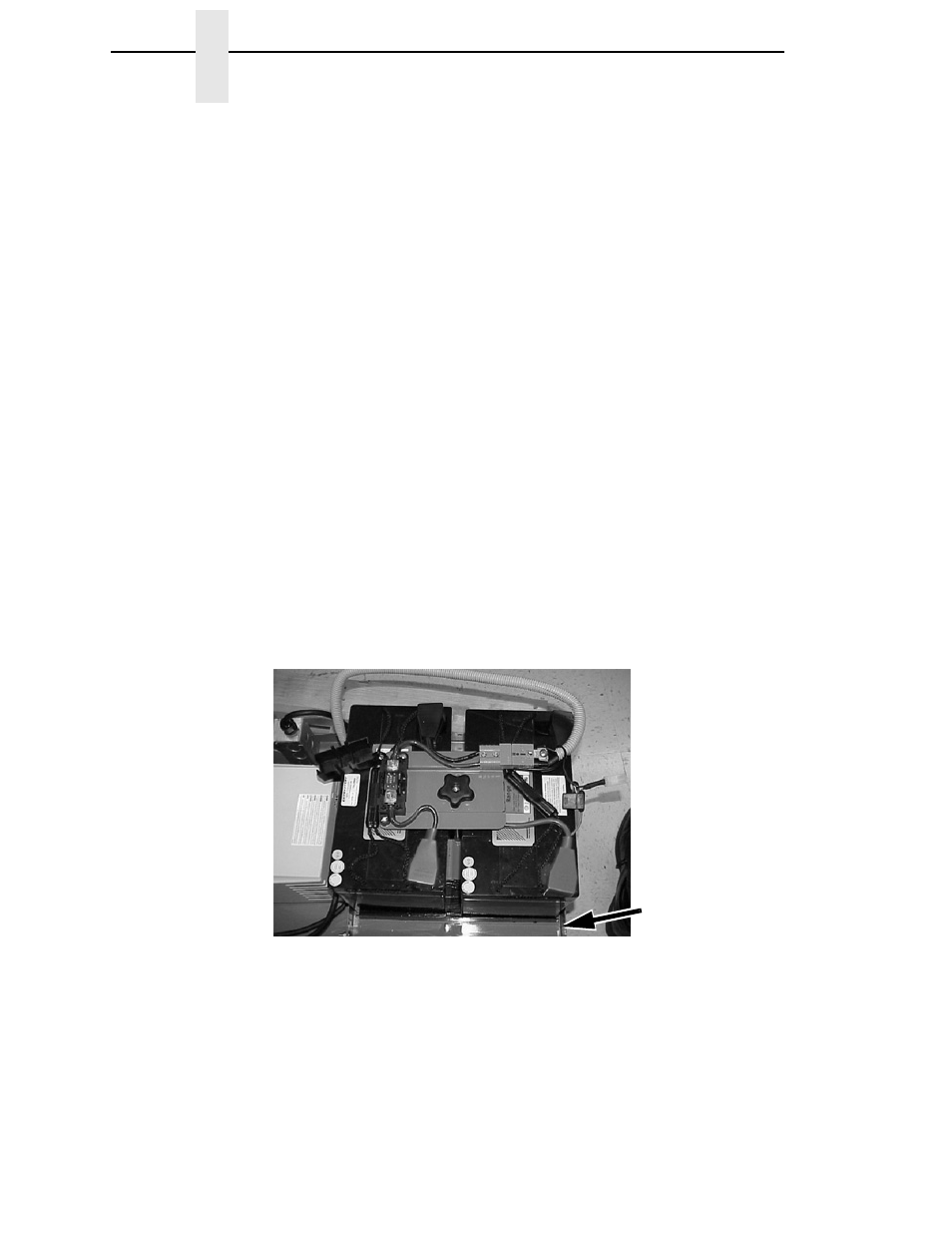

Figure 19. Power Equipment Subpallet
Power Equipment
Subpallet
