Utility Drawer
A utility drawer is available to store up to 8 1/2 x 11” size paper as well as
other small items. This allows the top work surface to be kept clutter free.
Power Cord
The power cord is wrapped on a hanger on the left side of the power
compartment (see Figure 18 on page 29). The line cord exits the power
compartment through a hole with a grommet around it, in the center of the
cord hanger. It is intentionally not long enough to reach either a wall
receptacle or the floor. PrintCarts can be rendered inoperative due to power
cord damage resulting from driving over the plug or pulling the cord to
disconnect it from a wall receptacle.
To operate the PrintCart, an external cord must be attached (one is supplied
and installed). The 120V PrintCart is supplied with a heavy gauge (14 awg)
cord approximately 10 feet long. The 230V PrintCart is supplied with a 4.3 m
(3 wire, 2mm) standard business machine power cable. An extension from the
inverter input provides an IEC 320 receptacle for connection of the business
machine cable. Choosing the appropriate business machine plug type at time
of order accommodates differing plug types.
The appropriate cord is attached to the PrintCart and secured with a
connector lock. The locked connectors are stored inside the cord hanger and
the extension cord exits the front of the hanger through a hole with a grommet
around it. When the AC extension cord is not being used, wind it around the
hanger. This prevents the cord from becoming a trip hazard or damaged by
getting stepped on or driven over. The cord hanger has extended flanges to
ensure the cord will not unwind during transport. The cord hanger is not
intended to carry more than 25 feet of cable.

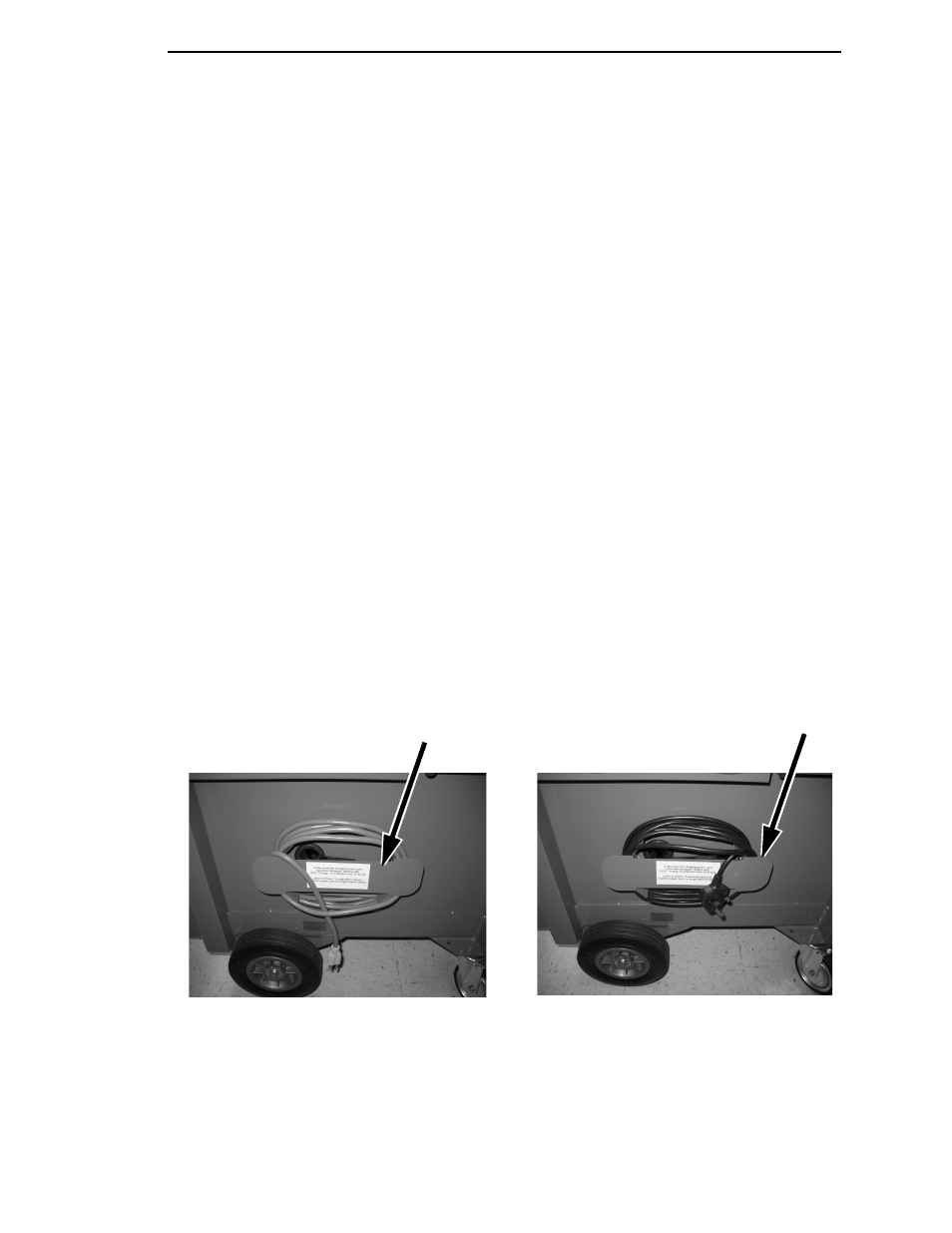

Figure 18. Power Cords
120V NEMA 5-15 Plug and 10 ft.
Extension Cable
230V - 4.2M UK Business
Machine Cable
Hanger
Hanger
