Electrical Installation
11
Terminal Hook-Up
1.
Install the power supply for the terminal in the pocket provided behind the
two slot notebook bin. See Figure 4.

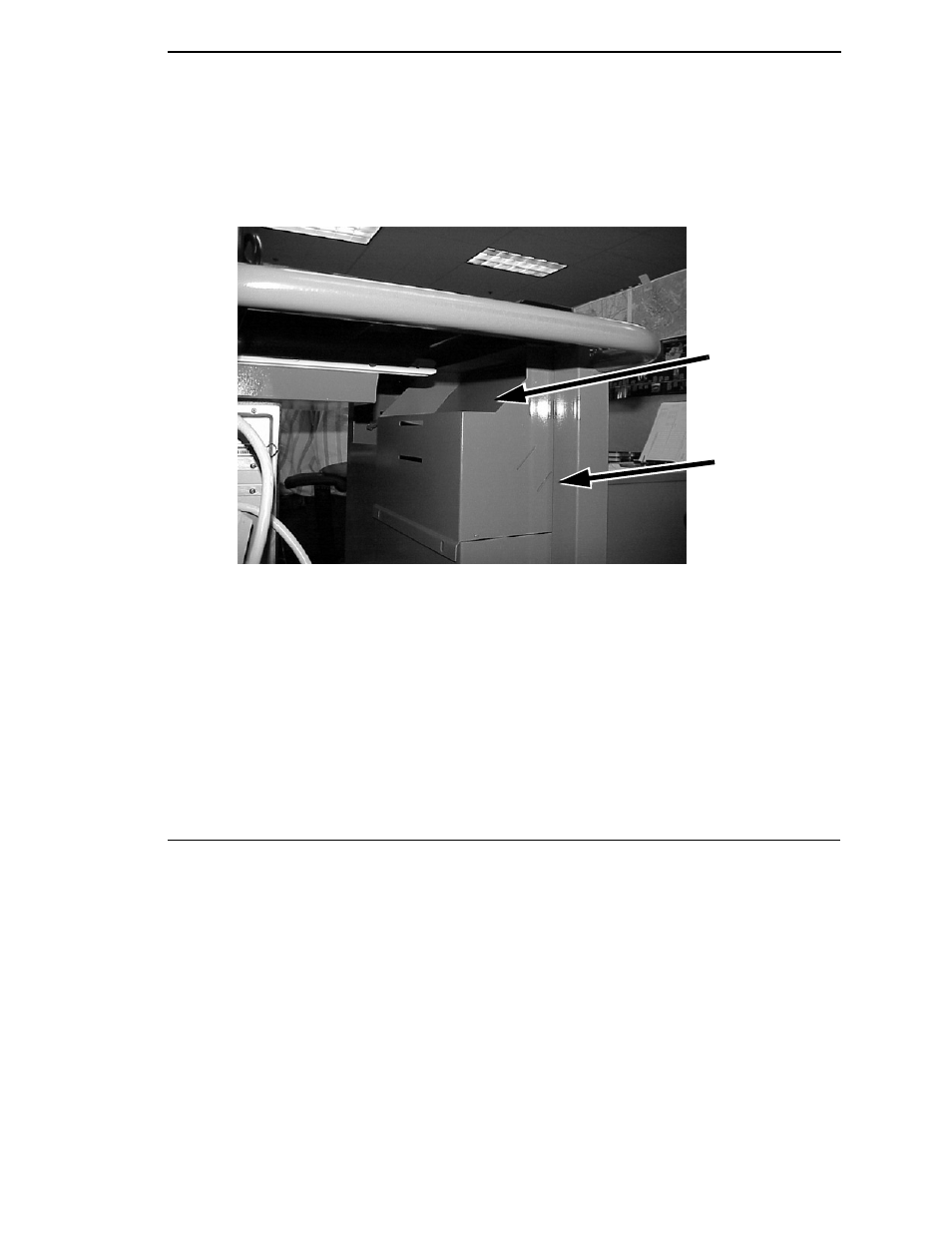

Figure 4. Installing Power to the Terminal
If this accessory is not included with the PrintCart:
2.
Locate power supply in the power compartment to the left of the inverter.
3.
Connect an AC power cord to the power supply and connect it to the
remaining receptacle by routing it down through the right rear leg into the
inverter compartment.
4.
Bundle and secure any excess cord.
5.
Route the DC power cable from the terminal to the power supply and
secure all excess cable length (terminal P/S pocket behind the letter bin).
Startup
Make sure all PrintCart equipment has been installed and power cords have
been routed and connected to the inverter.
1.
Check that the equipment power switches are in the OFF (0) position.
The PrintCart is now prepared for start-up.
2.
Open the power compartment front door (hand grip end) and connect the
main inverter power/battery cable to the connector on the battery
subpallet.
3.
Open the power compartment rear door and locate the inverter operating
switch on the upper-right of the inverter.
4.
Slide the switch left to the “AUTO/INVERT” position. The inverter will
begin producing power as indicated by the yellow mode indicator on the
inverter.
Two Slot
Notebook Bin
