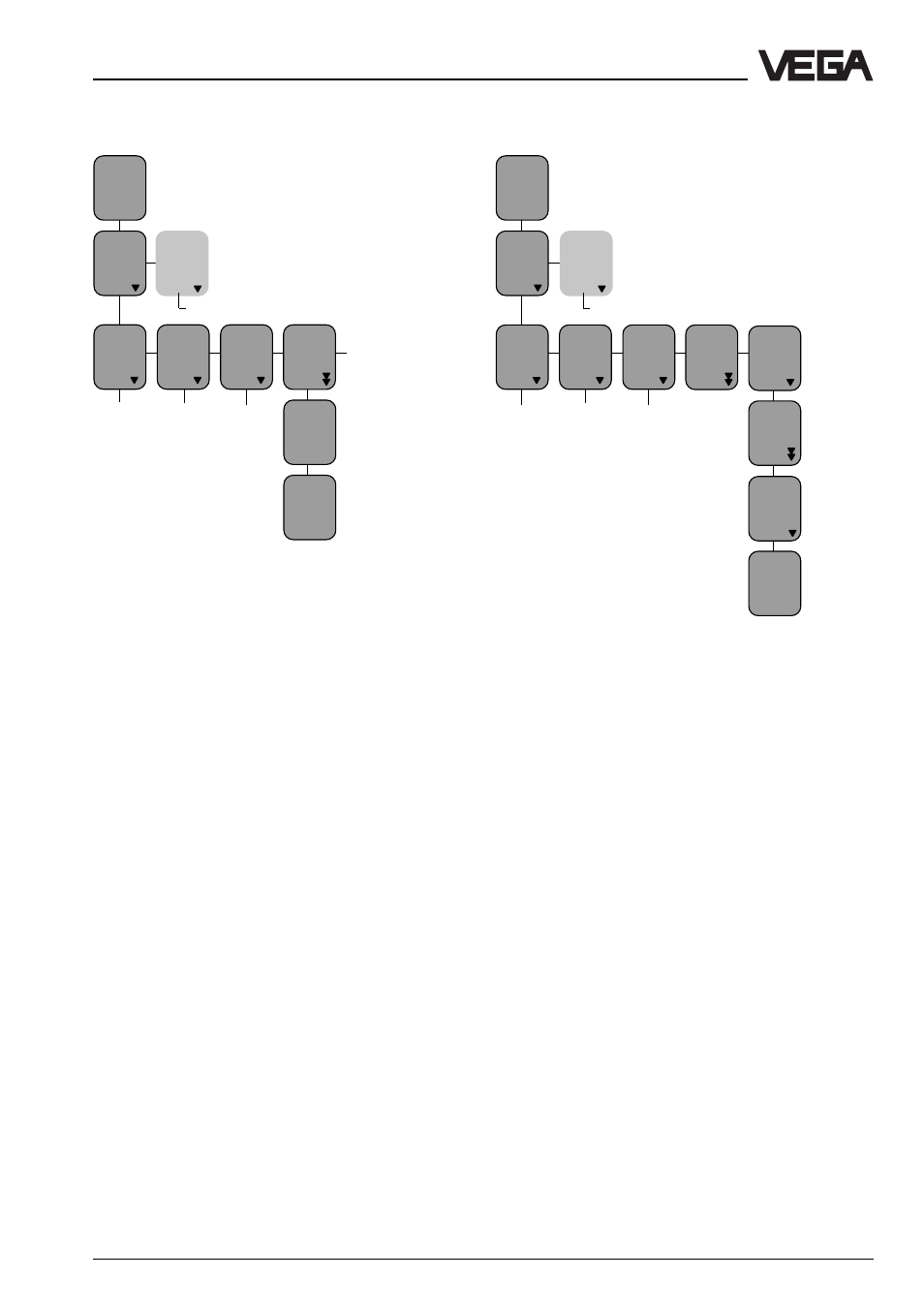

Settings in the „Extended menu“
7.8 Simulation 7.9 Special function: Reset
To check the outputs and connected instru-
ments, you can adjust in this menu item any
individual percentage value with the keys [+]
and [–]. The starting point is always the ac-
tual measured value. The indicated value
flashes when the simulation is activated. 15
minutes after setting the simulated value, the
simulation is automatically terminated and the
display reset to measured value indication.
With this reset, all parameter values of the
measurement loop TAG-No. 1 are reset to
factory settings (empty and full adjustment,
relay outputs, current output, volt output and
scaling of the meas. value indication are
reset).
