3. Open the “DataIndustrial exe” file from Step 2 of the “Badger Meter DIC Product Software Installation” on page 5
The Badger Meter DIC Product Software (version 3 12) is configured to use the communications port number of the
USB serial port, per Step 2, on page 10
4. Select the “Set Comm Port” menu option, from the “Configuration” menu, per Figure 10
5. Click on the “Comm Settings” drop-down menu, then select the appropriate port number from that menu, per Figure
11
NOTE: The USB serial port number (Figure 9) and the “Comm Settings” number (Figure 11) must be the same number
6. Click OK to complete the connection configuration

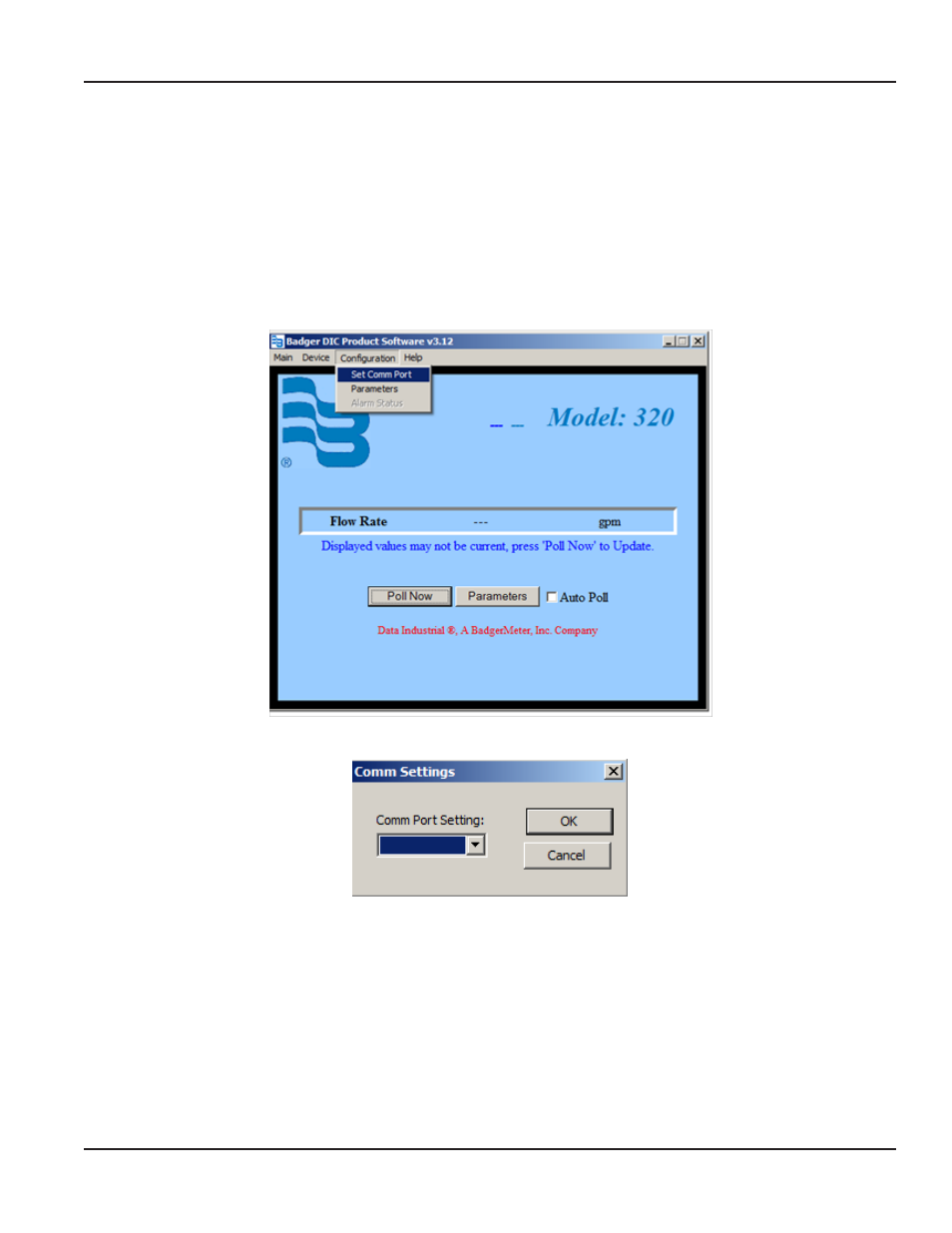

Figure 10: Select “Set Comm Port”
Figure 11: Matching COM Port Settings
7. Select the appropriate device from the “Device” menu in Figure 10
8. Set the appropriate parameters from the “Configuration” menu in Figure 10 or click the Parameters button
The Badger Meter DIC Product Software is now ready for use with the USB to DIC Converter and legacy devices
