H8051/H8053
Z201659-0N PAGE 4 ©2011 Veris Industries USA 800.354.8556 or +1.503.598.4564 / [email protected] 12112
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
TM
INSTALLATION GUIDE
Model 8053 Model 8051

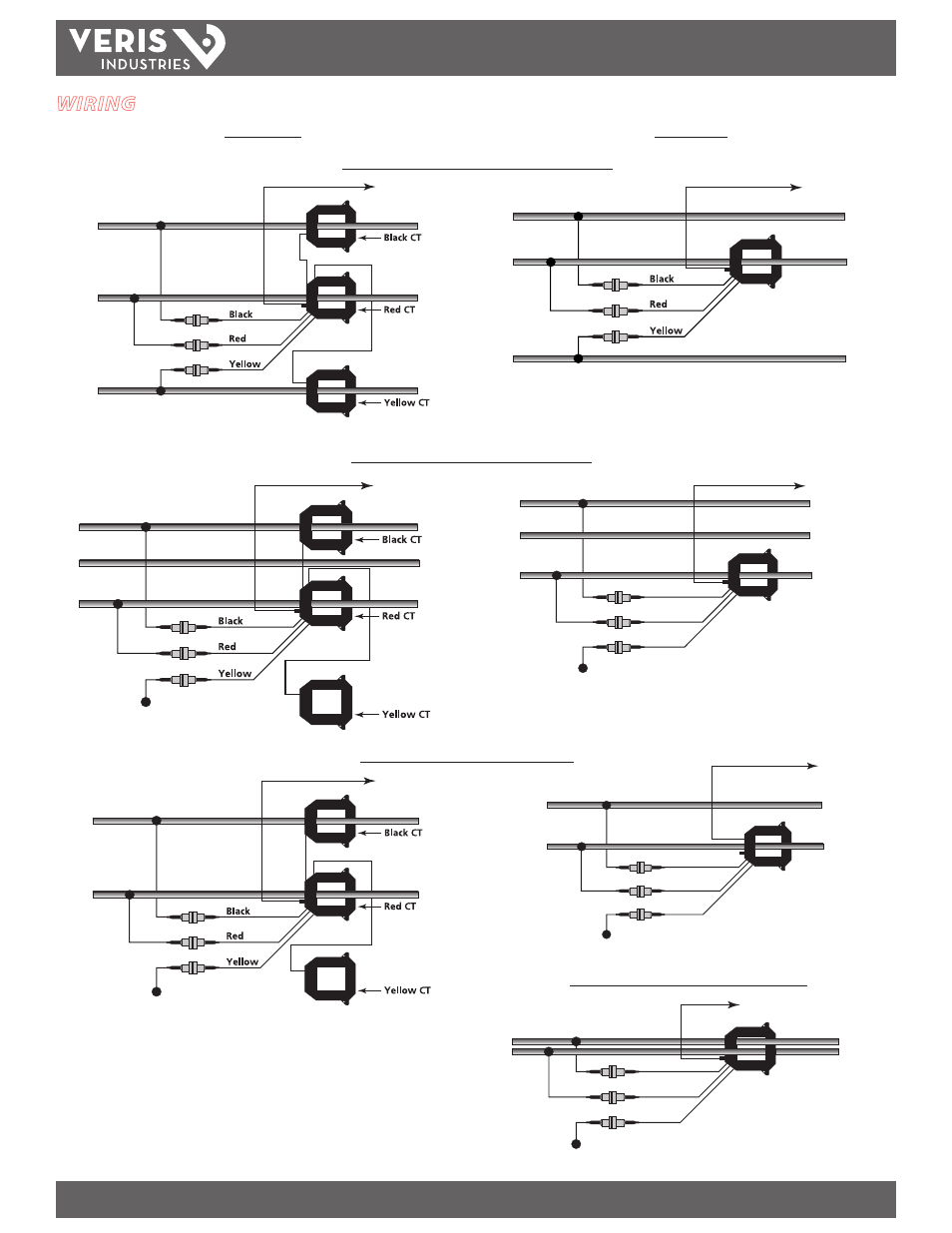

WIRING
Typical 240/120 VAC 1Ø, 3-Wire Installation
Typical 277 VAC 1Ø, 2-Wire Installation
NOTE: Multiply output by 3 for
proper kWh indication
(Assuming balanced load)
NOTE: Multiply output by 2 for
proper kWh indication
(Assuming balanced load)
PULSE OUTPUT LINE
277V
Black
Red
Yellow
Neutral
NOTE: Wires are crossed through
the CT, each entering from
the opposite direction. This
arrangement does not require
multiplying the output data.
Alternative 277 VAC 1Ø, 2-Wire Installation
Typical 208/480 VAC 3Ø, 3- or 4-Wire Installation
277V
Black
Red
Yellow
Neutral
PULSE OUTPUT LINE
Neutral
277V
PULSE OUTPUT LINE
120
Neutral
120
PULSE OUTPUT LINE
PULSE OUTPUT LINE
ØB
ØA
ØC
PULSE OUTPUT LINE
PHASE
PHASE
PHASE
120V
120V
Black
Red
Yellow
Neutral
PULSE OUTPUT LINE
NOTE: Multiply output
by 2 for proper kWh
indication
Cap This
Cap This
Cap This
Cap This
Cap This
