INSTALLATION GUIDE
HP/HN
Z201381-0T PAGE 3 ©2013 Veris Industries USA 800.354.8556 or +1.503.598.4564 / [email protected] 03132
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

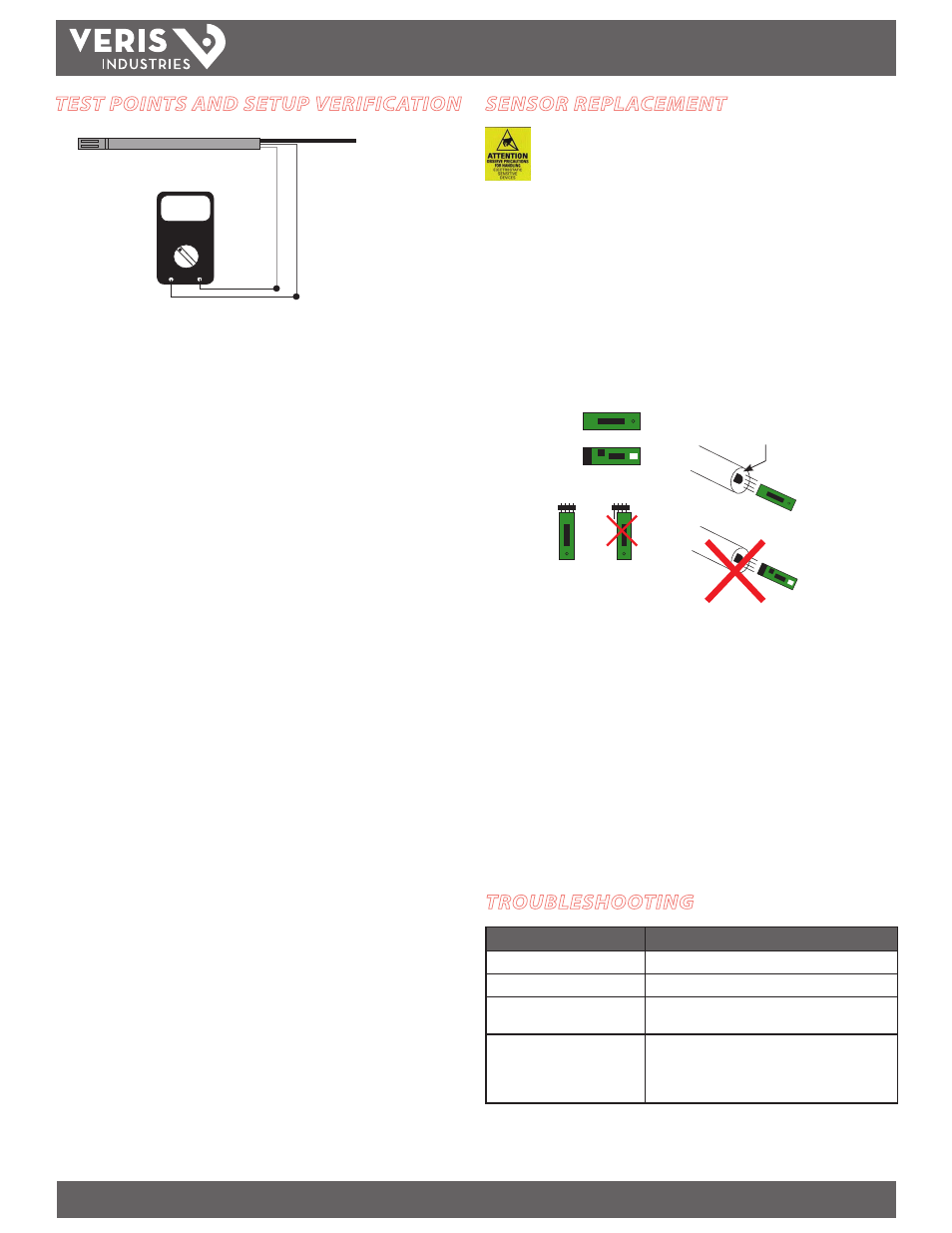

TROUBLESHOOTING
Problem Solution
Filter tip does not fit on probe HS element is backwards; reverse element.
Unit reads approx. 4.5mA HS element is backwards; reverse element.
Unit reads 100% with new
replacement sensor
Unit must be unpowered when installing a new sensor;
interrupt sensor power to restart.
Accuracy appears incorrect · Remove HS element while powered and verify output
goes to full scale.
· Verify voltage test leads on 4-20 mA models
corresponds to the 4-20 mA output.
SENSOR REPLACEMENT
Observe precautions for handling static sensitive
devices to avoid damage to the circuitry that
is not covered under the factory warranty.
1. Disconnect power to the unit.
2. Remove the probe from the junction box by loosening the black swage nut and
sliding it out.
3. Unscrew the filter on the tip of the probe. Set filter aside.
4. Remove the HS element by gently pulling from the pin connector. Do not attempt
to remove the temperature sensor adjacent to the HS element (if equipped).
5. Place a new HS element onto the pin connector. Orient as shown, or the unit will
not function (the filter will not screw on if the HS is inserted incorrectly).
Top
Side
Bottom
Side Top Side
Bottom Side
Temp Sensor
(if equipped)
6. Replace the filter. Re-insert the probe into the junction box and tighten the swage
nut.
Replacement HS Element Ordering Information
HS2xxx Replacement 2% HS Element, Duct
HS3xxx Replacement 3% HS Element, Duct
HS4xxx Replacement 5% HS Element, Duct
HS1Nx Replacement 1% HS NIST Element, Duct
HS2Nx Replacement 2% HS NIST Element, Duct
Replacement filters are provided with all HS elements. Order the appropriate element accuracy to
match the motherboard accuracy for compatability.
For 4–20 mA versions: Test leads output 0-1 VDC corresponding to 0 to 100% RH
sensor reading. For example, a 0.42 VDC output on test points equals 42% RH sensor
reading. These test points also provide an output that verifies the motherboard
accuracy when the HS element is removed. Connect test point leads to voltmeter
only. This output is not suitable for connection to a DDC panel.
To check the motherboard functionality using the test leads, remove the sensor
element. A 1.0 VDC reading verifies motherboard functionality.
To verify sensor accuracy, de-power the unit and insert a replacement HS element.
Repower the unit and compare readings to the original sensor. For example, if test
points read 0.40 VDC (40% RH) with the original sensor, and 0.45 VDC (45% RH) with
the replacement sensor, then the original sensor is 5% off specification. This method
of ensuring accuracy offers more precision than using slings or other devices, and it
eliminates the need to manually adjust sensors to an unstable standard.
Note: Temperature, body sweat, and breath effect humidity. Ensure that conditions
are stable to evaluate performance.
The filter may be washed using warm water and a soft brush. Do not attempt to scrub
the HS element.
For 0-5V/0-10V versions, use the output as a test point and scale accordingly.
Test leads and voltmeter
verify accuracy and simplify
DDC programming
1VDC
0.42
WH
ITE (
+)
GR
EY
(--)
Voltmeter shows reading of 42% RH
TEST POINTS AND SETUP VERIFICATION
