PRODUCT OVERVIEW
The HP and HN Series humidity sensors provide high accuracy humidity monitoring
with a fully replaceable HS element for easy field maintenance. NIST certified
accuracy and temperature sensing capability are available. The HP is a pendant style
design, meant to be suspended from the ceiling. The HN is an insertion design meant
to be mounted in a wall or other surface. Both are warranted for a period of five
years.

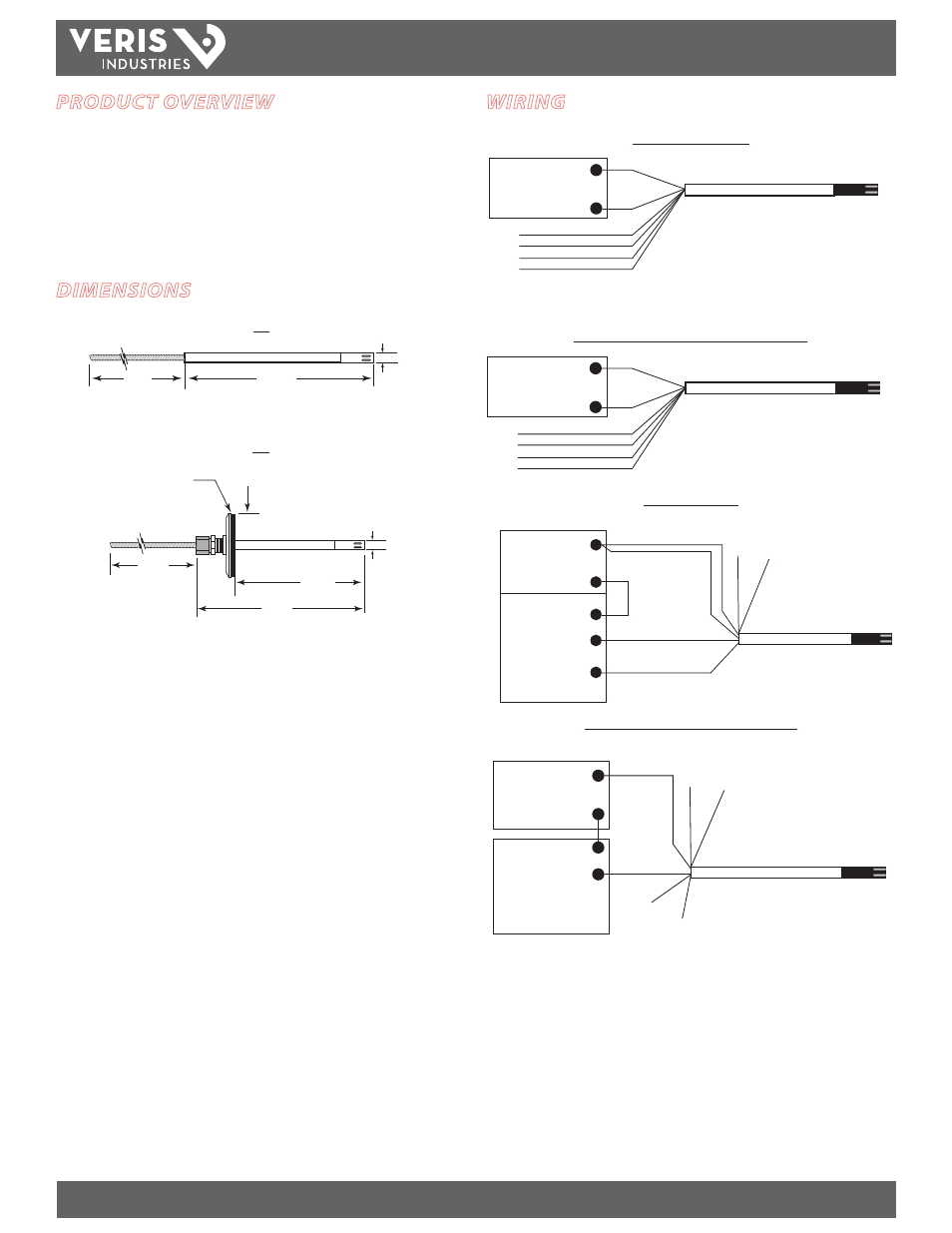

WIRING
0-5V/0-10V Versions
POWER SUPPLY
12 to 30 VDC/24 VAC
BLK
RED
BLUE 0-10V HUMIDITY
ORANGE 0-10V TEMP
GREEN 0-5V HUMIDITY
YELLOW 0-5V TEMP
–
+
NOTE: For 24 VAC transformer powered applications, one side of transformer secondary is
connected to common. Isolation transformer or dedicated power supply may be required.
0-5V/0-10V Versions with RTD/Thermistor
POWER SUPPLY
12 to 30 VDC/24 VAC
BLK
RED
BLUE 0-10V HUMIDITY
GREEN 0-5V HUMIDITY
ORANGE THERMISTOR
ORANGE THERMISTOR
–
+
4-20mA Versions
VDC
POWER SUPPLY
DIGITAL CONTROL
Temperature
4-20mA Return
(optional)
Humidity
4-20mA Return
BLUE
HUMIDITY
BLUE
HUMIDITY
White/Gray 0-1V
Test Leads for use
with voltmeter
ORANGE
TEMP
ORANGE
TEMP
+
–
–
4-20mA Versions with RTD/Thermistor
VDC
POWER SUPPLY
DIGITAL CONTROL
Temperature
4-20mA Return
(optional)
Humidity
4-20mA Return
BLUE
HUMIDITY
BLUE
HUMIDITY
White/Gray 0-1V
Test Leads for use
with voltmeter
ORANGE
Thermistor
ORANGE
Thermistor
+
–
–
DIMENSIONS
10"
(254 mm)
3.5"
(89 mm)
0.5" Dia.
(13 mm)
Foam Gasket
2.5" x 2.5"
(64 mm x 64 mm)
8.0"
(203 mm)
36"
(914 mm)
10.0"
254 mm
0.5" Dia.
13 mm
36"
914 mm
HP
HN
