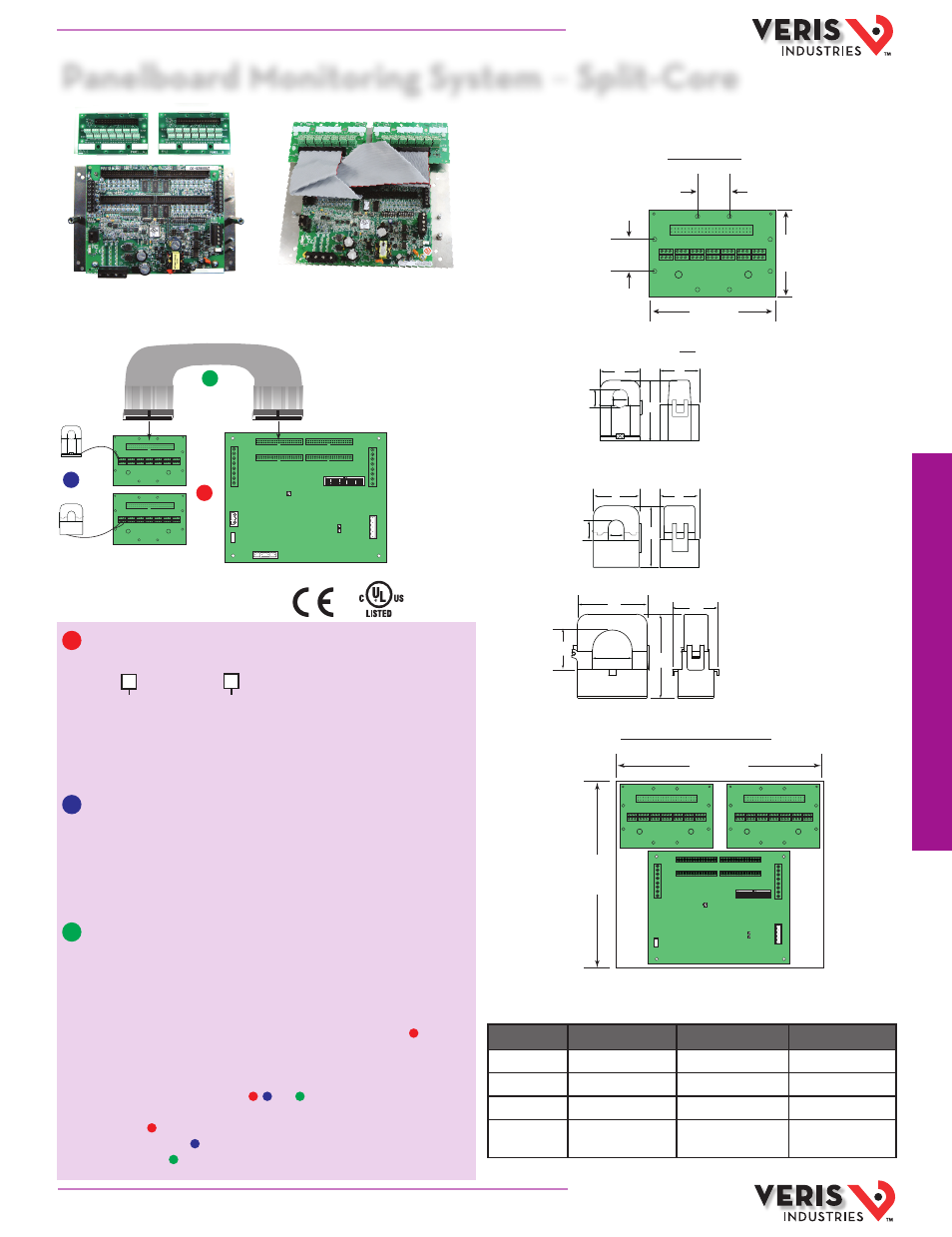

2
E31
Description # of CTs
APPLICATION/WIRING DIAGRAM
ORDERING INFORMATION
2
3
1
Ordering Examples:
Option A: For monitoring 42 or 84 circuits, order a pre-made kit from Group 1 only
(see Application/Wiring Diagram above).
Example: E31x42 or E31x84
Option B: For monitoring other configurations, build your own kit by selecting from
Groups 1 , 2 , and 3 .
Example kit for an 18-circuit panel retrofit:
1 E31A002 - Advanced board, 2 adapter boards (1 unit)
2 E31CT0 - 50A CT six-pack (3 units)
3 CBL023 - 10 ft. round ribbon cable (2 units)
1 Boards
CTs
(up to 21 CTs per adapter board)
3 Ribbon Cable
(order 1 cable per adapter board)
E31CT0 Six-pack, 50A CT, 6 ft. (1.8 m) lead
E31CT0R20 Six-pack, 50A CT, 20 ft. (6 m) lead
E31CT1
Six-pack, 100A CT, 6 ft. (1.8 m) lead
E31CT1R20 Six-pack, 100 CT, 20 ft. (6 m) lead
E31CT3
Single CT, 200A CT, 6 ft. (1.8 m) lead
E31CT3R20 Single CT, 200A CT, 20 ft. (6 m) lead
CBL022 Round Ribbon Cable, 4 ft. (1.2 m)
CBL033 Round Ribbon Cable, 8 ft. (2.4 m)
CBL023 Round Ribbon Cable, 10 ft. (3 m)
CBL024 Round Ribbon Cable, 20 ft. (6 m)
A = Advanced board
B = Intermediate board
C = Basic board 002 = 2 adapter boards, no CTs, no cables
004 = 4 adapter boards, no CTs, no cables
42 = 2 adapter boards, 42 50A CTs, 2 4 ft. round ribbon cables
84 = 4 adapter boards, 84 50A CTs, 4 4 ft. round ribbon cables
Y63* = 2 adapter boards, flat ribbon cables,
pre-assembled on one bracket, CTs not included
E31 E31xY63*
4.6”
(117 mm)
2.75”
(70 mm)
1.00”
(26 mm)
1.00”
(26 mm)
DIMENSIONAL DRAWINGS
Adapter Board
CTs
D
E
C
B
A
D
E B
A
C
E31CT0 50 Amp
A = 1.0” (26 mm)
B = 0.5” (11 mm)
C = 0.4” (10 mm)
D = 0.9” (23 mm)
E = 1.6” (40 mm)
E31CT1 100 Amp
A = 1.5” (39 mm)
B = 0.8” (20 mm)
C = 0.7” (16 mm)
D = 1.6” (40 mm)
E = 2.1” (53 mm)
E31CT3 200 Amp
A = 1.5” (39 mm)
B = 1.25” (32 mm)
C = 1.25” (32 mm)
D = 2.5” (64 mm)
E = 2.8” (71 mm)
B
E
A
C
D
9.75”
(248 mm)
8.75”
(222 mm)
E31xY63 Boards with Bracket*
Panelboard Monitoring System – Split-Core
SPLIT-CORE CT SPECIFICATIONS
50A Split-Core CT 100A Split-Core CT 200A Split-Core CT
Voltage Rating 300VAC 600VAC 600VAC
Accuracy ±1% ±0.5% ±1%
Temperature 0° to 60°C 0° to 60°C 0° to 60°C
Agency UL508 recognized,
EN61010
UL508 recognized,
EN61010
UL508 recognized,
EN61010
p
o
wer/ener
g
y monit
oring
800.354.8556 +1 503.598.4564 www.veris.com
800.354.8556 +1 503.598.4564 www.veris.com
CBL016 Flat Ribbon Cable, 4 ft. (1.2 m)
CBL018 Flat Ribbon Cable, 6 ft. (1.8 m)
CBL020 Flat Ribbon Cable, 10 ft. (3 m)
CBL021 Flat Ribbon Cable, 20 ft. (6 m)
