Veris Industries E3x SERIES Datasheet - Manual (Page 3)

800.354.8556 +1 503.598.4564 www.veris.com
p
o
wer/ener
g
y monit
oring
E30 CURRENT SENSOR STRIP E30 CURRENT SENSOR STRIP E30 CURRENT SENSOR STRIP
E30 Data
Acquisition Board
Reports volts, amps,
power, and energy
for each circuit
Monitors each circuit
in a panelboard
including the
main breaker
RS-485 Modbus:
Up to 63 E30s
Connection
to auxiliary inputs
92 circuits with
one product
To Controller or PC
Panel Board 1 Panel Board 2
E30 Current Sensor Strip
0.4” (10 mm)
opening
1.0” (26 mm)
on center
25.0” (635 mm)
1.2”
(31 mm)
20.3” (516 mm)
1.1”
(28 mm)
0.8”
(20 mm)
0.8”
(20 mm)
1.3”
(33 mm)
2.0”
(50 mm)
slot: 0.25” x 0.5”
(7 x 13mm)
2.0”
(50 mm)
1.7”
(43 mm)
21.2”
(0.9 mm)
1.3”
(32 mm)
slot: 0.25” x 0.5”
(7 x 13mm)
1.2”
(30 mm)
0.4” (10 mm)
opening
0.75” (19 mm)
on center
16.4” (417 mm)
1.7”
(43 mm)
0.4” (10 mm)
opening
0.7” (18 mm)
on center
2.0”
(50 mm)
21.2”
(0.9 mm)
1.3”
(32 mm)
15.7” (399 mm)
0.4” (10 mm)
opening
0.7” (18 mm)
on center
21.2”
(0.9 mm)
1.3”
(32 mm)
12.3” (312 mm)
0.4” (10 mm)
opening
0.7” (18 mm)
on center
Current Sensor Strips
3/4"
option,
21 CTs
1”
option,
21 CTs

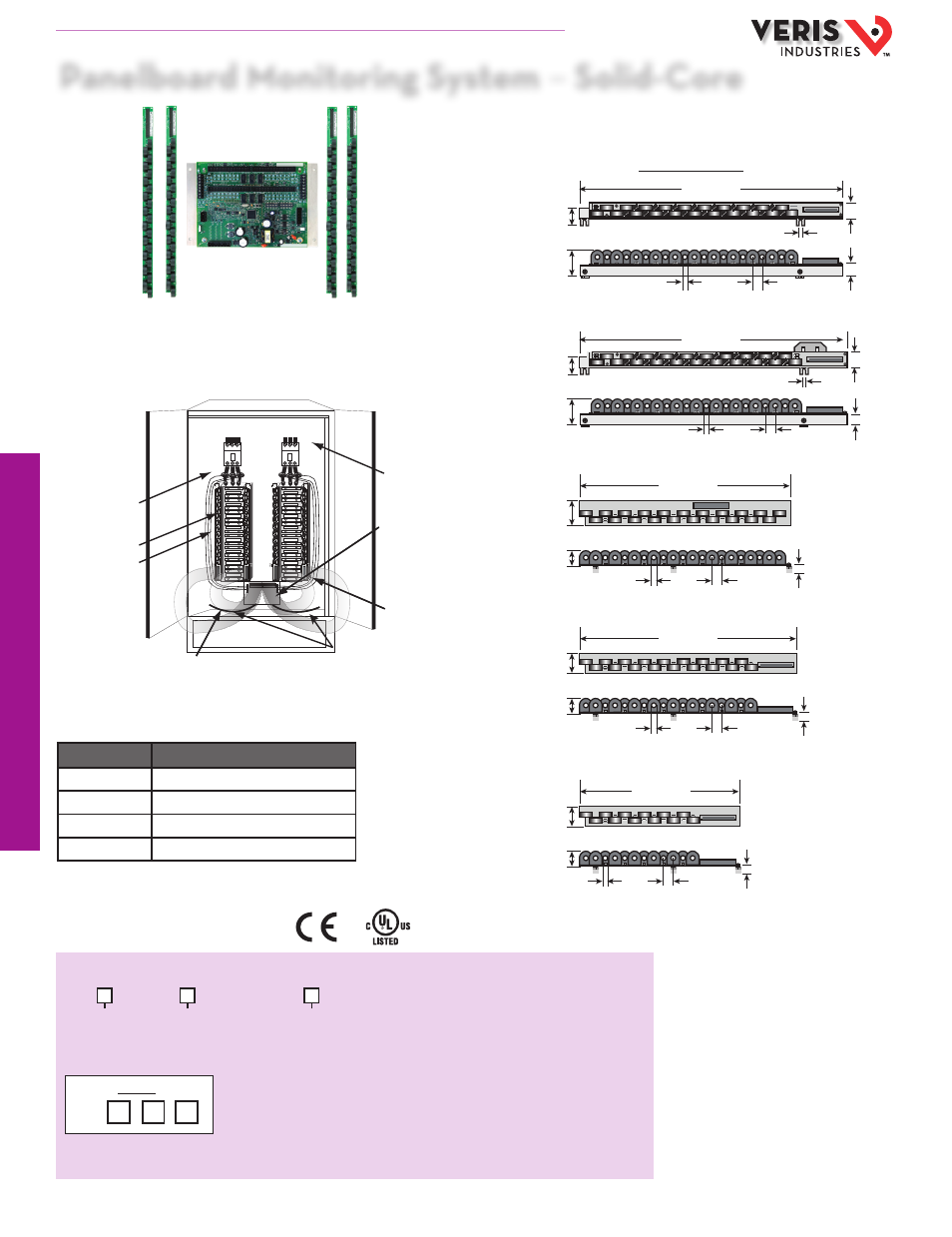

DIMENSIONAL DRAWINGS
APPLICATION/WIRING EXAMPLE
Panelboard Monitoring System – Solid-Core
E30
E30
CT Option
0 = 100A, ¾" spacing
1 = 100A, 1" spacing
2 = 100A, 18 mm spacing
Description
A = Advanced
B = Intermediate
C = Basic
# of CTs and
Ribbon Cables
24 = 2 strips of 12 CTs (18 mm only)
36 = 2 strips of 18 CTs (18 mm only)
42 = 2 strips of 21 CTs (¾”, 1”, or 18 mm) with two 4 -ft. flat ribbon cables
48 = 4 strips of 12 CTs (18 mm only)
72 = 4 strips of 18 CTs (18 mm only)
84 = 4 strips of 21 CTs (¾”, 1”, or 18 mm) with four 4 -ft. flat ribbon cables Example:
E30 A 0 42
ORDERING INFORMATION
Free Configuration tool available from www.veris.com.
Consult factory for additional mounting options.
SOLID-CORE CT SPECIFICATIONS
100A Solid-Core CT
Voltage Rating 300VAC
Accuracy ±0.5%
Temperature 0° to 60°C
Agency UL508 recognized, EN61010
18 mm
option,
18 CTs
18 mm
option,
12 CTs
18 mm
option,
21 CTs
HQ0001714.C 01131
