DIN Rail Mounting
Optional clips snap onto the mounting flanges allowing the 340 BN/MB Btu Energy Transmitter to be attached to DIN 15, 32,
35 mm DIN rail systems

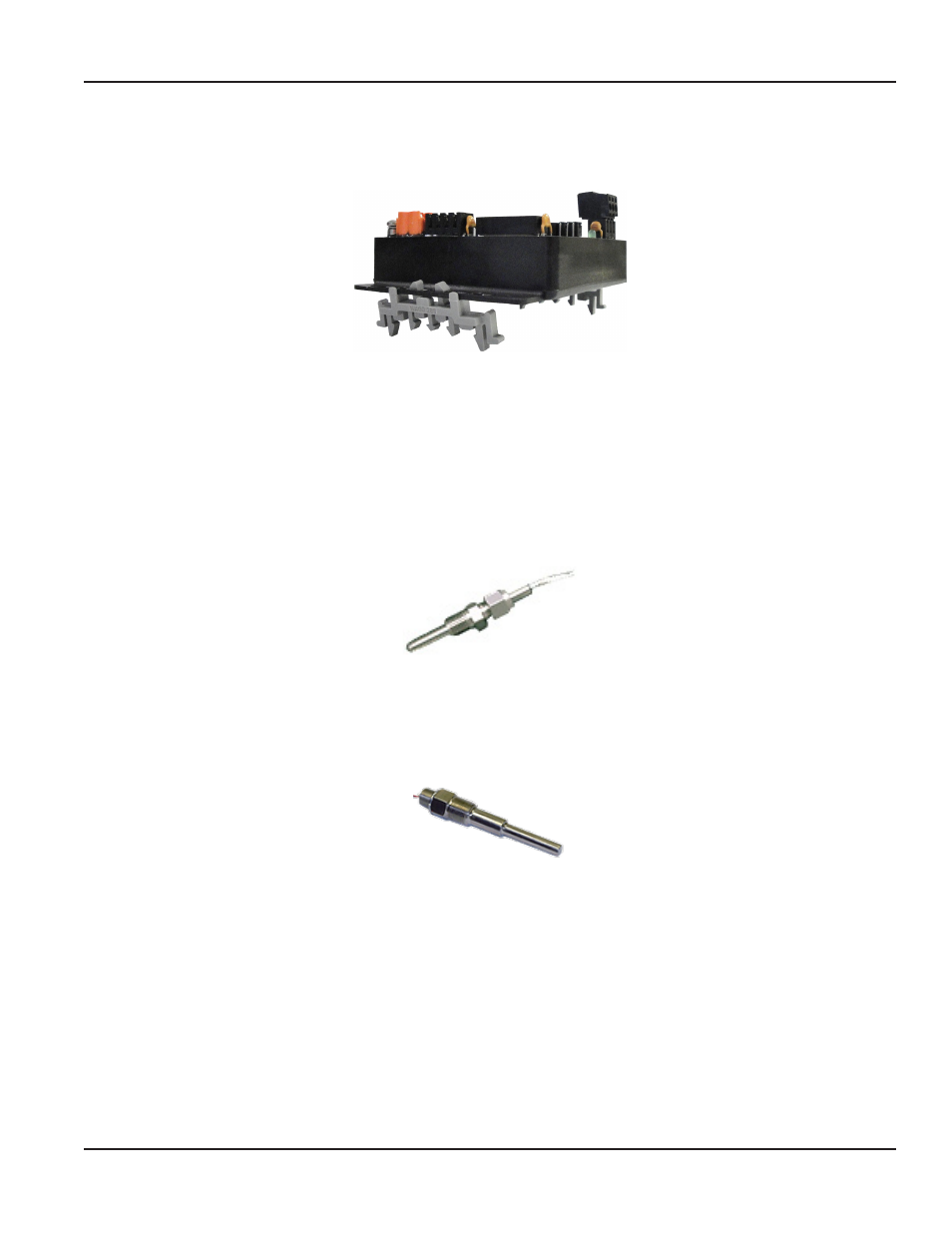

Figure 3: DIN Rail Mounting
Temperature Sensor Installation
Badger Meter offers several styles of 10k Ω Thermistors and 100 Ω Platinum RTDs in both direct immersion and Thermowells
The style selected depends on system requirements and pipe size
Direct Insert
Generally, direct insert sensors are used for smaller pipe sizes
Figure 4: Direct Insert
Thermowell
Thermowells are recommended for larger pipes that are more difficult to drain for service
Figure 5: Thermowell
