Surface Mount Installation
The 340 BN/MB Btu Energy Transmitter may be mounted to the surface of any panel using double-sided adhesive tape or by
attaching fasteners through the holes in the mounting flanges of the unit
1.60”
(40.6mm)
3.65”
(92.7mm)
2.95”
(74.9mm)
.88”
(22mm)
.60”
(15mm)
Model: 340 BN/MB
S/N 340- 005100
Comm LED
Data
Industrial
Sensor Inpu
t Shield
Signal
Signal +
Power Out
-
RE
F +
_
Btu ENERGY METER
Fa
ct
or
y Po
rt
NT
PD
PU
D.I.C.
Comm
Port
+
-
Po
wer In
AC C /DC
AC L /DC
Output LED
Output
Pulse Out +
Pulse Out -
1
2
3 Temp
1
1
3
Temp
2
2
Input LED
.20”
(5mm)

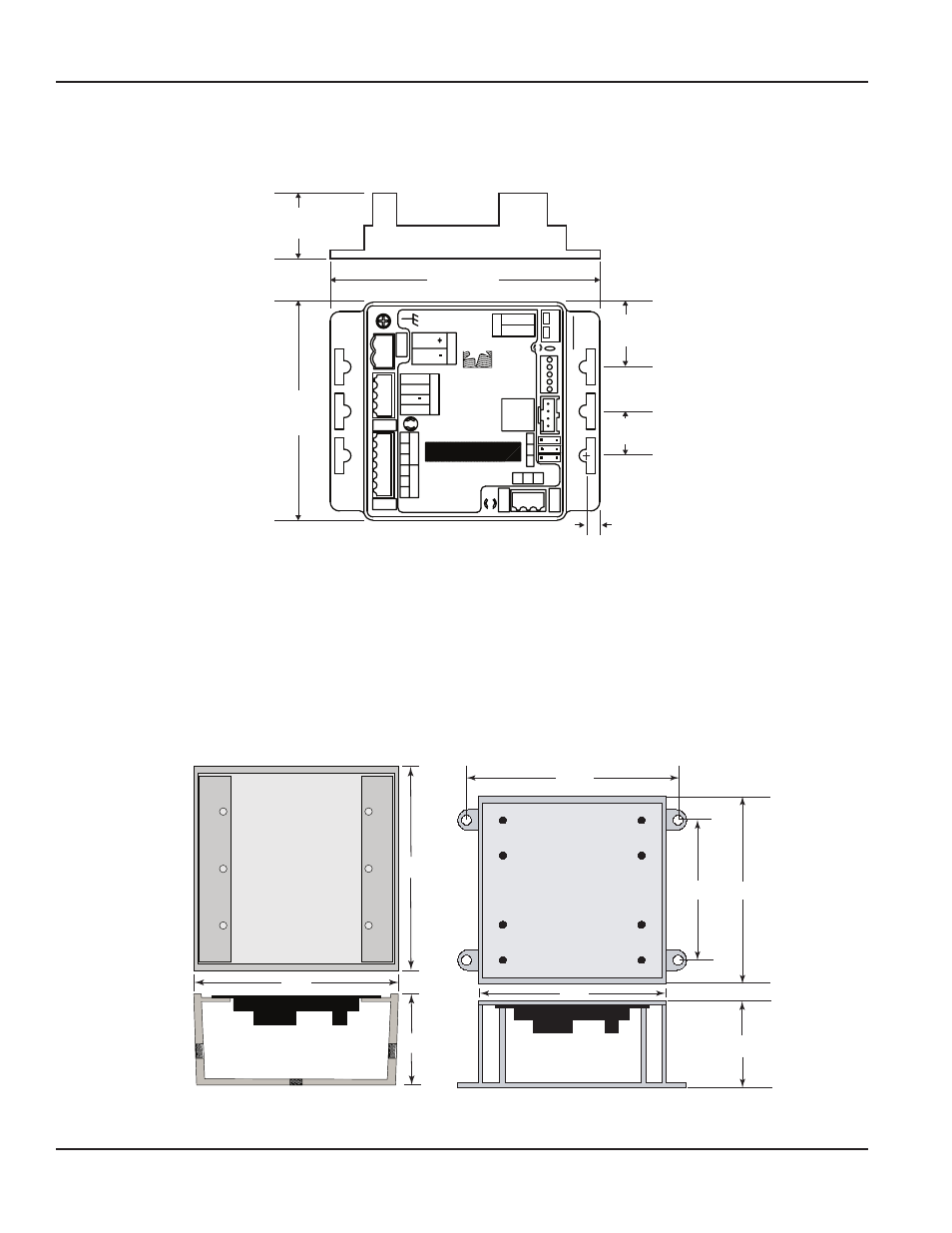

Figure 1: 340 BN/MB Dimensions
Wall Mounting
Optional metal and plastic enclosures are available to mount the 340 BN/MB Btu Energy Transmitter to a wall when no other
enclosure is used The enclosure is first attached to the wall using fasteners through its mounting holes
After wiring, the transmitter may be attached to the enclosure with the terminal headers facing in using the slots in the
mounting flanges As an alternate mounting arrangement, the 340 BN/MB Btu Energy Transmitter may be fastened to the box
cover using double-sided adhesive tape
Top
Side
4.50"
4.50"
2.00"
Side
5.125"
3.25" 4.60"
4.60"
Top
Bottom
2.25"
Figure 2: 340 BN/MB Metal (left) and Plastic (right) Box Dimensions
