8
Remote sensor accessories
Model no. Description
S3010W1000 Wall mounted temperature sensor
S3020W1000
Wall mounted temperature sensor with override button and
occupancy status LED
S2060A1000 Averaging temperature sensor
S2000D1000 Duct mounted temperature sensor
Remote mount temperature sensors use 10K type 2 NTC thermistors.
Features:
• Each sensor can be configured for various averaging combinations
• Optional occupancy led
• Optional override key

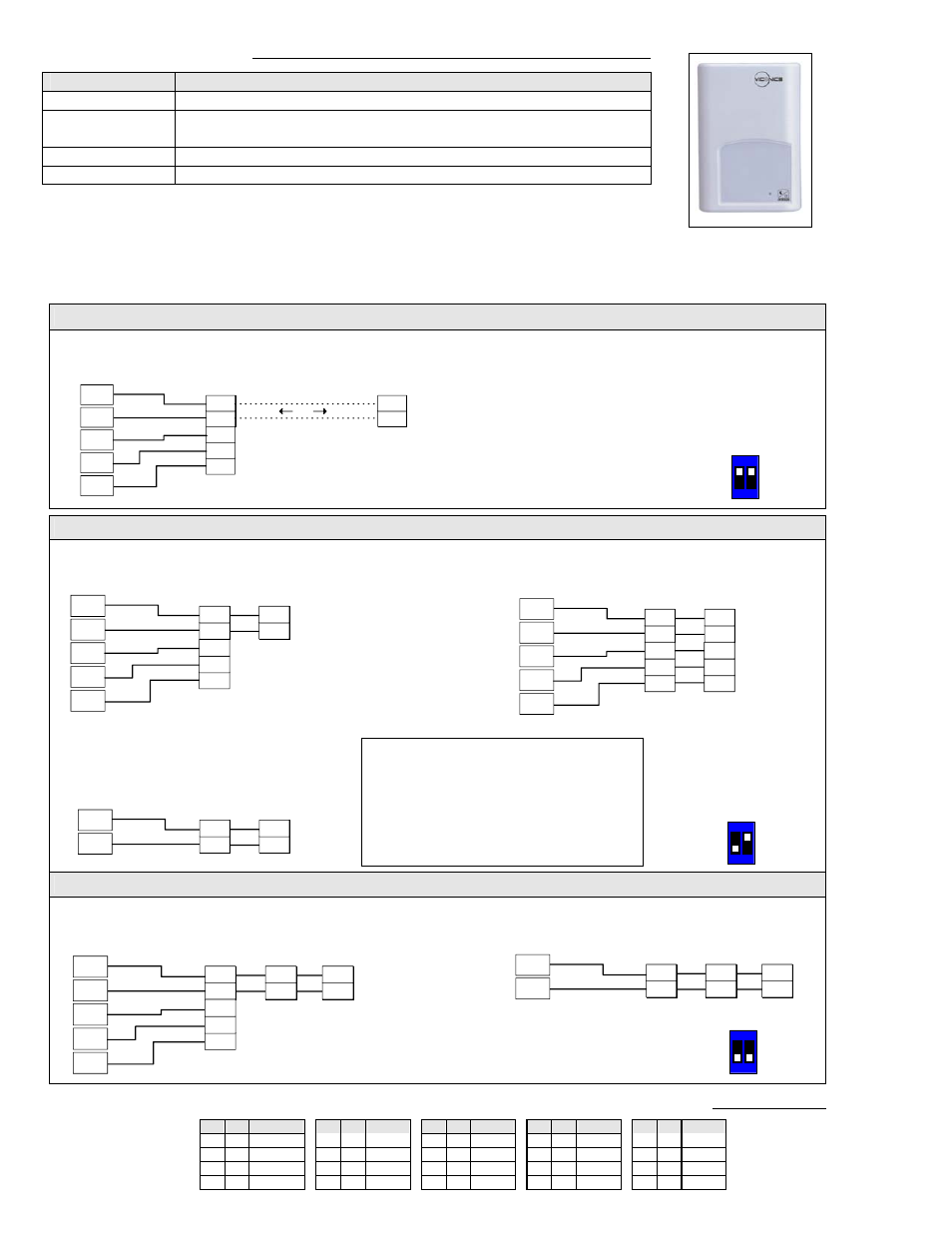

Wiring example of single remote room sensor:
Wiring examples of 2 remote room sensors for averaging applications:
Wiring examples of 3 remote room sensors for averaging applications:
Temperature vs resistance chart for 10 Kohm NTC thermistor
(R
25°C
= 10K Ω±3%, B
25/85°C
= 3975K±1.5%)
ºC ºF Kohm ºC ºF Kohm ºC ºF Kohm ºC ºF Kohm ºC ºF Kohm
-40 -40 324.3197 -20 -4 94.5149 0 32 32.1910 20 68 12.4601 40 104 5.3467
-35 -31 234.4009 -15 5 71.2430 5 41 25.1119 25 77 10.0000 45 113 4.3881
-30 -22 171.3474 -10 14 54.1988 10 50 19.7390 30 86 8.0694 50 122 3.6202
-25 -13 126.6109 -5 23 41.5956 15 59 15.6286 35 95 6.5499 55 131 3.0016
Notes for averaging applications:
•
S3010W1000 and S3020W1000 can be
mixed matched.
• S3010W1000 and S3020W1000 are to
be wired in parallel.
•
Respect the dip switch setting in each
remote sensor.
1 2
ON Dip switch
setting for:
1 sensor
S2-1 = ON
S2-2 = ON
1 2
ON Dip switch
setting for:
2 sensors
S2-1 = OFF
S2-2 = ON
1 2
ON Dip switch
setting for:
3 sensors
S2-1 = OFF
S2-2 = OFF
S3020W1000
Remote wiring 1 sensor
S2=On, S3=On VT7300 Series
Thermostat
BO 5
BI 2
RS
Scom
Scom
RS
Scom
RS
C
DI
Aux
Scom
RS
Scom
RS
OR
S3010W1000
Remote wiring 1 sensor
S2=On, S3=On
24 Vac
Com
2x S3010W1000 and 1 x S3020W1000
Remote wiring 3 sensors
S2=Off, S3=Off
Scom
RS
Scom
RS
Scom
RS
Scom
RS
VT7300 Series
Thermostat
BO 5
BI 2
RS
Scom
24 Vac
Com
Scom
RS
Scom
RS
C
DI
Aux
3x S3010W1000
Remote wiring 3 sensors
S2=Off, S3=Off
Scom
RS
Scom
RS
Scom
RS
Scom
RS
VT7300 Series
Thermostat
RS
Scom
Scom
RS
Scom
RS
1 x S3010W1000 and 1 x S3020W1000
Remote wiring 2 sensors
S1=On, S2=Off
Scom
RS
Scom
RS
VT7300 Series
Thermostat
BO 5
BI 2
RS
Scom
24 Vac
Com
Scom
RS
Scom
RS
C
DI
Aux
2 x S3010W1000
Remote wiring 2 sensors
S2=On, S3=Off
Scom
RS
Scom
RS
VT7300 Series
Thermostat
RS
Scom
Scom
RS
Scom
RS
2 x S3020W1000
Remote wiring 2 sensors
S2=On, S3=Off
Scom
RS
Scom
RS
C
DI
Aux
VT7300 Series
Thermostat
BO 5
BI 2
RS
Scom
24 Vac
Com
Scom
RS
Scom
RS
C
DI
Aux
FIG.8 – S3020W1000 WALL
MOUNTED SENSOR
