PD SEriES inStallation GUiDE

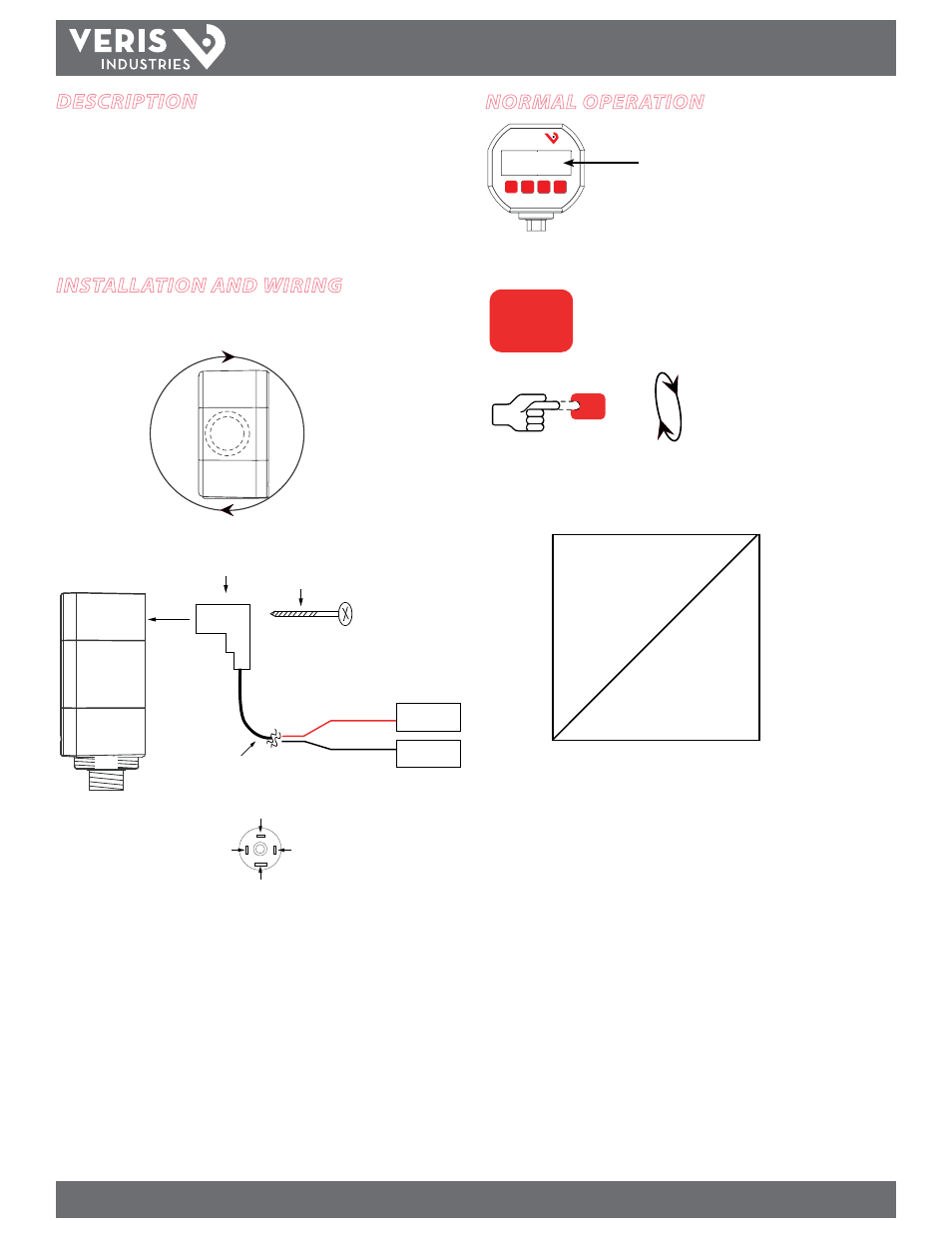

installation anD Wiring
Allow space to turn the PD Analog onto the pipe or fitting during mounting. The PD is
delivered with the connector attached to the device.
connector
locking screw
red
black
supply voltage
7.5 to 32 VDC
control panel
4-20 mA input
15’ lead
DescriPtion
PD analog digital pressure gauges are media isolated, so they can be used with any
gas, liquid, or solid compatible with 17-4 PH stainless steel within the specified
pressure range. The transducer consists of a one-piece, high-strength pressure sensor
that uses no silicone oils, welds, O-rings, or seals. The sensor is coupled to a 4-20 mA
loop powered internal display and keypad. The keypad controls setup and operation
of the sensor as described below.
+
4.25”
108mm
normal oPeration
Note: For out-of-scale
pressure readings,
output can go as low
as 3.5mA or as high as
24mA.
Pin 3
Pin 2 Pin 1
Pin 2 = 4-20mA output
Pin 3 = +V
Wide Pin
Electrical
Select a loop power supply voltage and total loop resistance such that when the loop
current is 20 mA, the gauge will have at least 7.5 VDC at its terminals. Too large a loop
resistance will cause the gauge output to "limit" or saturate before reaching its full
20 mA output.
The minimum loop supply voltage is calculated from the formula:
V
min
= 7.5V + (20mA * total loop resistance).
If the loop voltage drops too low, the PDxAM will display the LOW LOOP icon. At this
time, all calibration functions are disabled.
The LCD is loop-powered. If no voltage is applied, or if the connector is removed, the
display will be blank.
Units
Units
PSI
bar
Atm
kg/cm²
in. Hg
in. H2O
Volt
Test Calib Units Zero
VERIS INDUSTRIES http://www.veris.com
1-800-354-8556 ® 1-503-598-4564
Digital Pressure Gauge
Pressure reading appears in the
selected units (PSI, bar, etc.)
zero/low-end
pressure full-scale/high-end
pressure
0 V
10 V/5 V
Pressure Reading
Out
put
Si
gn
al
Output signal:
To select/change display units:
Note: The UNITS button
does not affect the mA
output.
