DIMM Installation Guide

4. Push the DIMM slot retaining

clips out to the side (Figure 5) to
allow installation of the DIMM.
Ensure the DIMM is positioned
correctly (Figure 5), and then fully
insert the DIMM into the DIMM
slot until it snaps into place (the
white retaining clips should close
automatically).

5. Replace the printer panels, and

then reconnect the printer power
cord and printer data cable.

6. Refer to the TROY Quick-Start

Guide (provided with your TROY
DIMM Solution) for instructions
on installing the required TROY
software and support files.

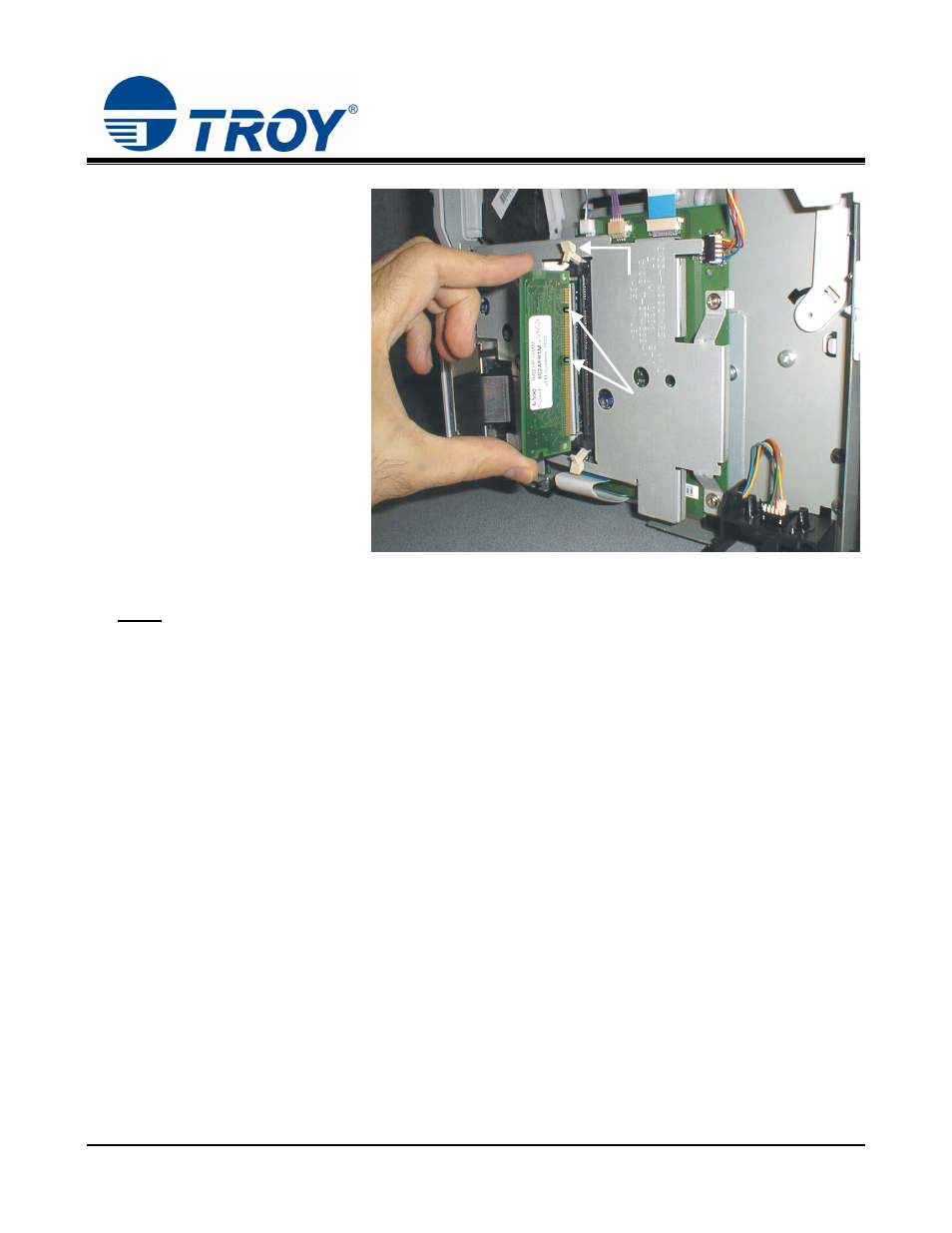

Figure 5

NOTE

Retaining
Clip

Notches in

edge of DIMM
must align with
tabs in the slot.

:

If assistance is required for removing or installing the DIMM, please call TROY Technical
Support at (800) 332-6427. Customers outside the United States, please call (304) 232-0899.

Document #50-70395-001 Rev. D
