Components, power divider, Power divider components – Spicer Tandem Drive Axles Service Manual J340-S, J380-S, J400-S, W460-S User Manual
Page 7
5
Input Drive Gear
Inter-Axle Differential Bearing Cone
Inter-Axle Differential Bearing Cup
Shift Collar
Spiral Snap Ring
Inter-Axle Differential Rear Bearing
Shift Fork
Shift Fork Shaft
(30-38 Lb-Ft)
(41-51 N-m)
Retainer Spring
Retainer Clip
Air Shift Cylinder
Air Shift Cylinder Bolt
(30-40 Lb-Ft)
(41-55 N-m)
Drive Gear Bearing Cone
Drive Gear Bearing Cup
Intermediate Housing Bolt
(75-90 Lb-Ft)
(102-122 N-m)
Idler Gear Front Bearing Cone
Idler Gear Front Bearing Cup
Idler Gear Bearing Spacer (Selective)
Idler Gear
Idler Gear Front Bearing Cone
Idler Gear Front Bearing Cup
Intermediate Housing
Idler Gear Shaft
Idler Shaft Nut
(500-600 Lb-Ft)
(678-813 N-m)
Flanged Hex Nut
(900-1,200 Lb-Ft)
(1,220-1,627N-m)
End Yoke Assembly
Pinion Oil Seal
Inter-Axle Differential Cover
Shim (Selective)
Input Bearing Cup
Input Bearing Cone
Inter-Axle Differential Case Assembly
Fill Plug

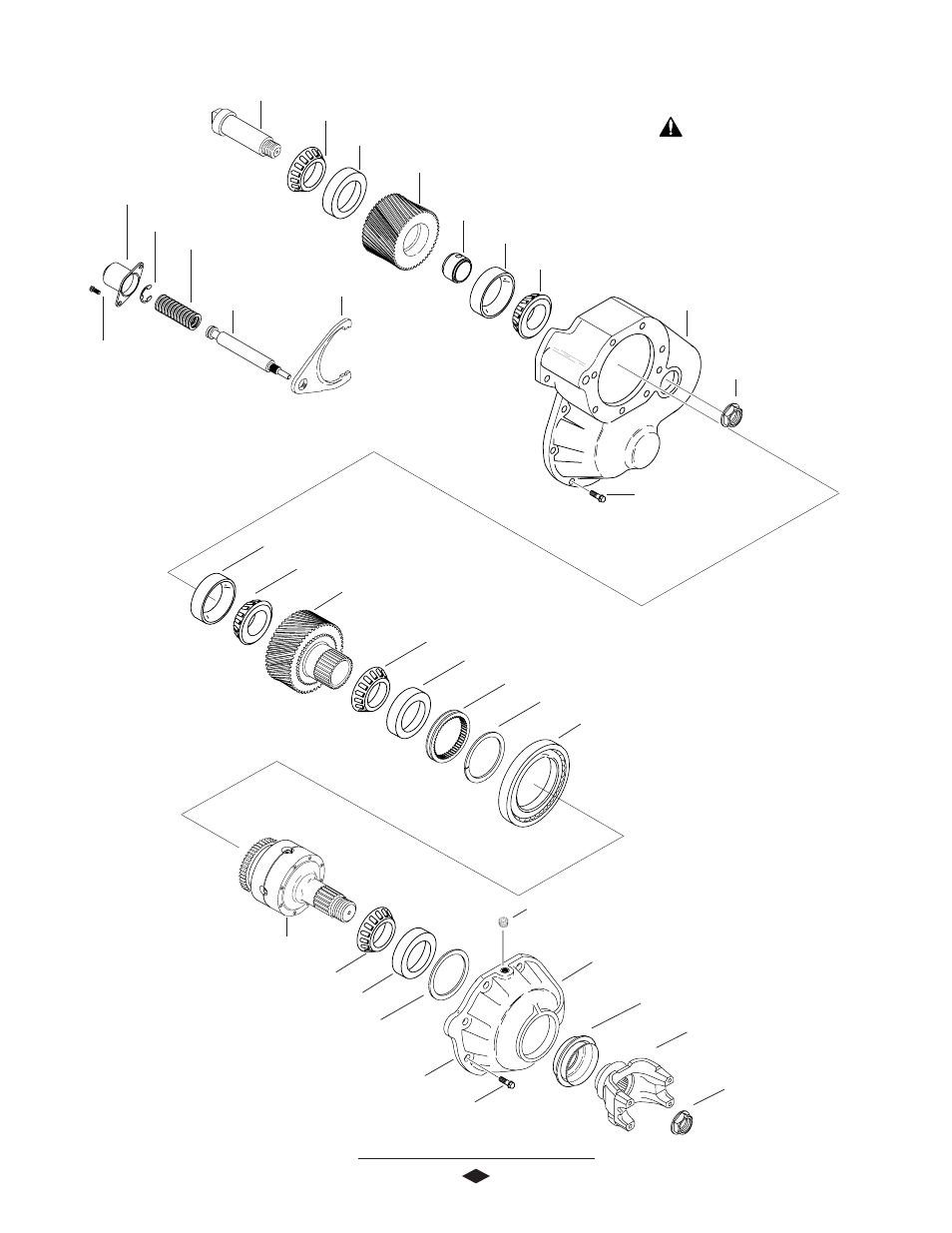

POWER DIVIDER COMPONENTS
Inter-Axle Differential Cover Bolt
(75-90 Lb-Ft)
(102-122 N-m)
IMPORTANT: Torque
specifications, shown on illustration,
apply only to J Model. See Page 33-
34 for W Model torque specifications.
