Housing and output shaft assembly – Spicer Tandem Drive Axles Pro-40 Single Reduction and Single Reduction with Differential Lock User Manual
Page 98

95
103
Housing and Output Shaft Assembly

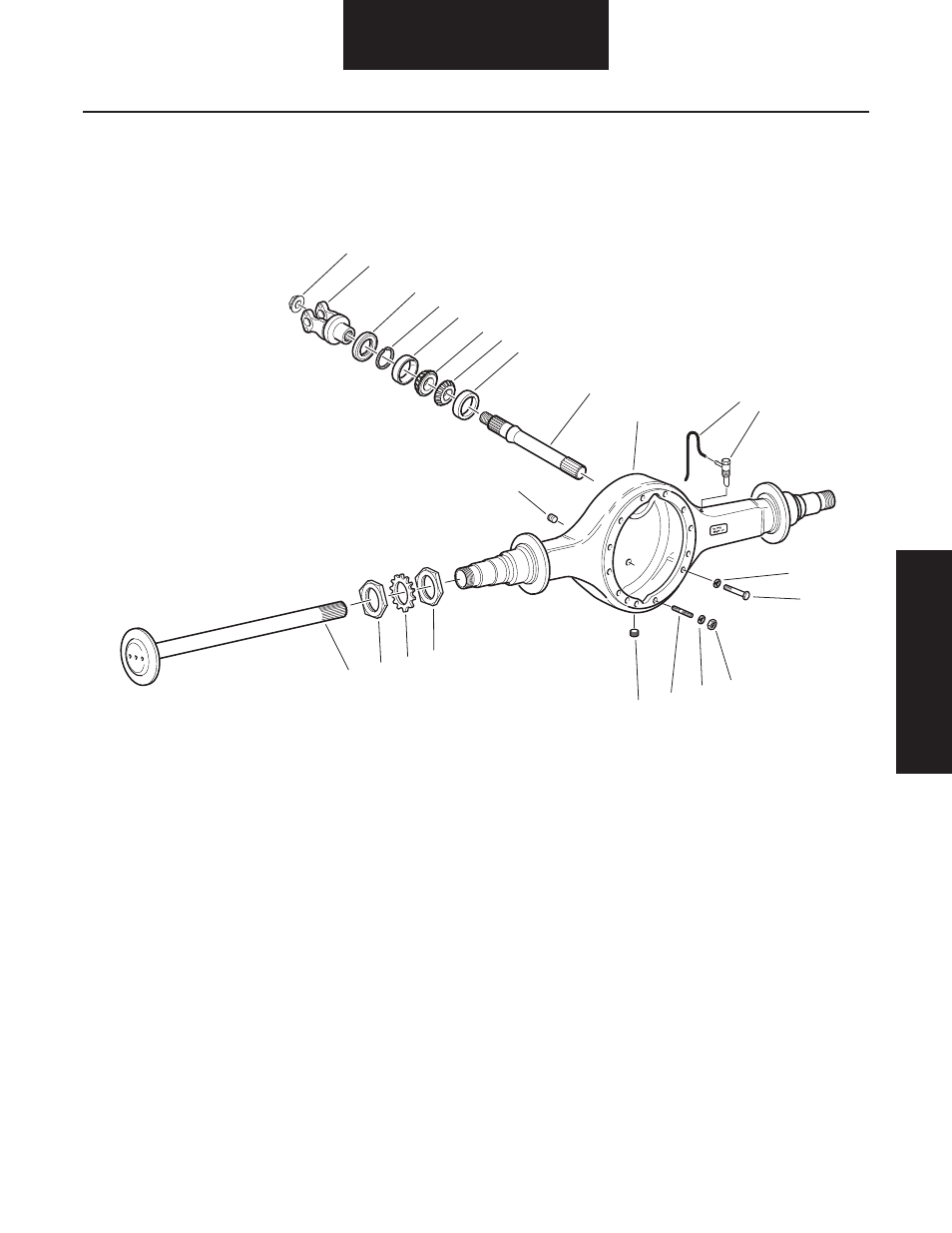

Parts Exploded View
1— Output shaft nut
2— Output yoke
3— Output seal
4— Snap ring
5— Outer bearing cup
6— Outer bearing cone
7— Inner bearing cone
8— Inner bearing cup
9— Output shaft
10— Axle housing
11— Breather hose
12— Breather
13— Lock washer
14— Carriage cap screw
15— Nut
16— Lock washer
17— Stud
18— Drain plug
19— Spindle nut
20— Locking ring
21— Jam nut
22— Axle shaft
23— Fill plug
10
12
11
13
14
17
16
15
18
22 21
20 19
4
5
6
7
8
9
1
2
3
23
Parts Identification
Par
ts
Id
en
tifi
ca
tio
n
