Spicer Tandem Drive Axles Pro-40 Single Reduction and Single Reduction with Differential Lock User Manual
Page 27
24
27
Forward Assembly
Note: The input shaft snap ring is not used in this buildup.

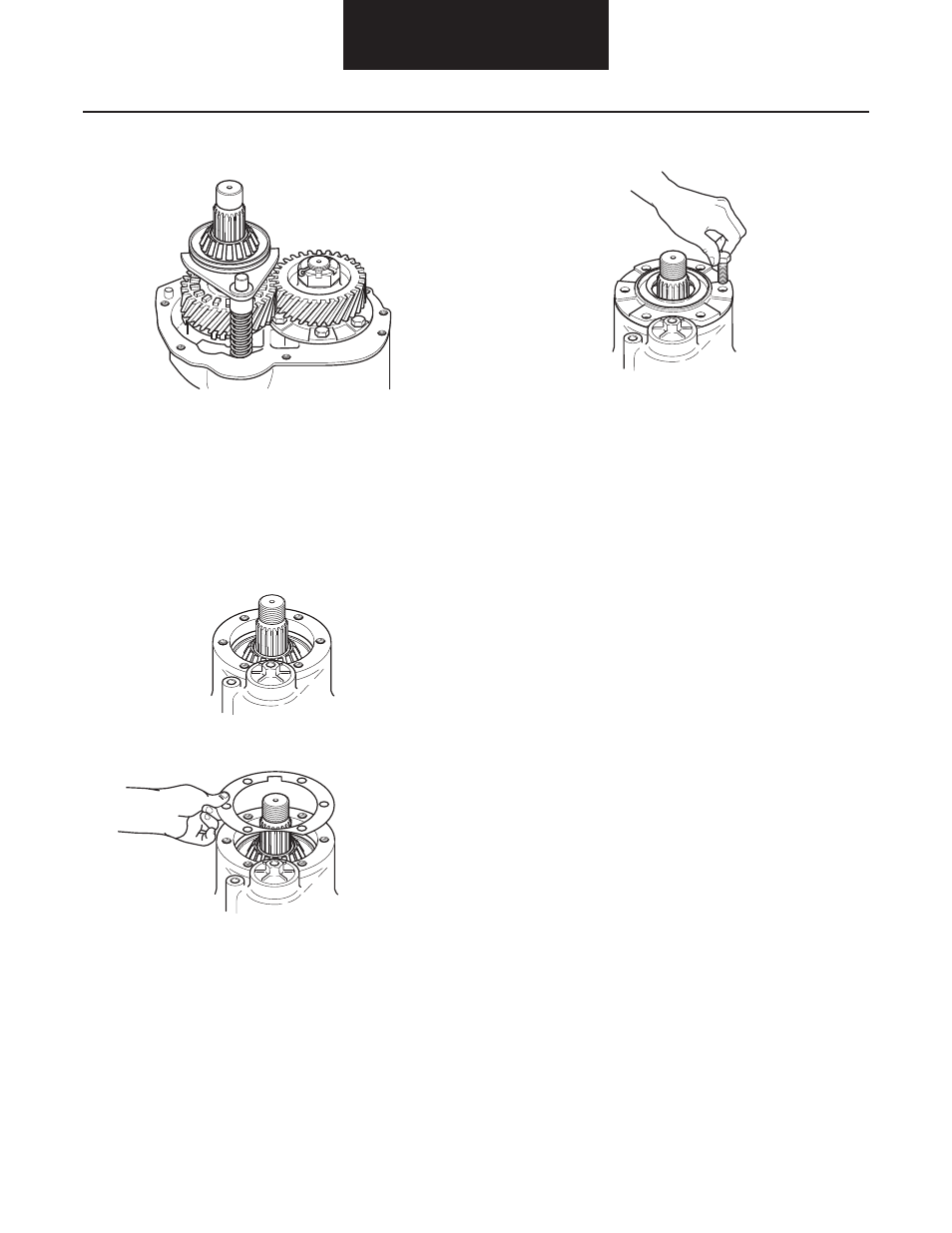

9. Install plastic oil trough in power divider cover.
10. Install power divider cover to carrier. Use Dana
approved RTV compound on the carrier mating sur-
face. Torque cap screws to 114–140 lb-ft. (155–190
N•m).
Note: Gasket compound will harden in 20 minutes. Install
power divider as quickly as possible to avoid future
leaks.
11. Install input cage shim and input cage assembly.
12. Install input cage cap screws and tighten until snug.
13. Measure and adjust input shaft end-play, see page 28.
14. Torque input cage cap screws to 114–140 lb-ft.
(155–190 N•m)
15. Install NEW input seal, see page 71.
16. Reinstall input yoke.
