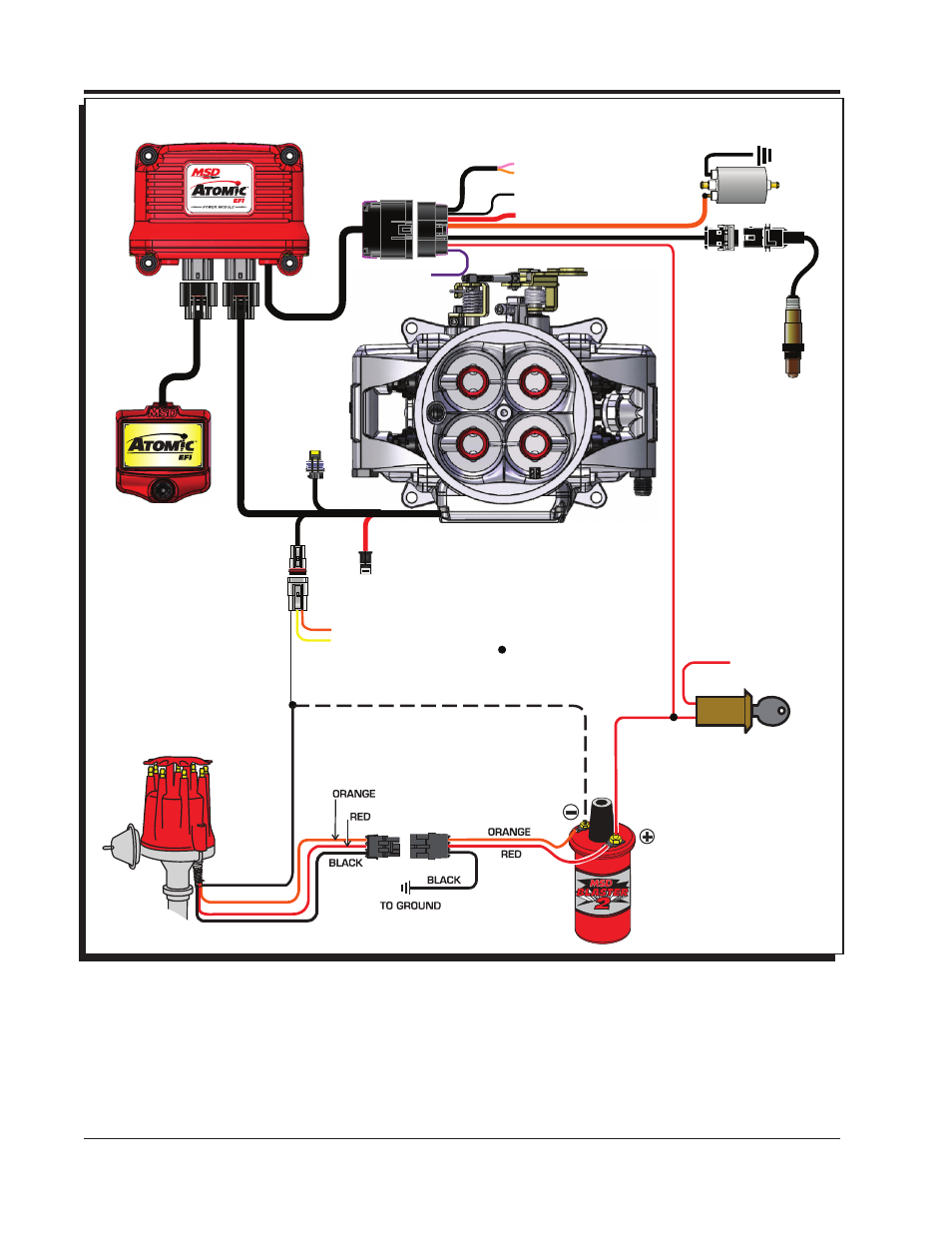

Figure 9 – Atomic Wiring with an MSD Ready-to-Run Distributor or MSD HEI Distributor.
ECT
SENSOR
PINK - FAN 2 PROVIDES GROUND
TAN - FAN 1 PROVIDES GROUND
RED - IGNITION SWITCHED 12V
*
FUEL
PUMP
BLACK - GROUND
HEAVY RED - BATTERY
O2
SENSOR
BLACK
GROUND
NOT USED (FOR TIMING CONTROL ONLY) MAG
ORANGE TO AC INPUT
YELLOW - IGNITION
OUTPUT (USED WITH
TIMING CONTROL ONLY)
WHITE TO MSD
TACH OUTPUT
HEAVY ORANGE
*Do NOT connect the small Red wire to the coil (+)
terminal when using an MSD Ignition or other CD
ignition control.
RED - IGNITION SWITCHED 12V
GRAY TO TACH INPUT
INDICATES CONNECTION
TO 12V
IGNITION
KEY OR
FOR STOCK
IGNITION
SYSTEMS
TO NITROUS 12V
ACTIVATION WIRE
STOP HERE
Please review the parts installed thus far. Check to see that all required wires are run properly and
that the fuel system is complete and secure. The next section of instructions will require power to the
Handheld. Turning on power (Key On) will prime the fuel pump. It is extremely important to check for
fuel leaks at this time.
Do not attempt to start the engine until the Initial Setup has been completed on the Handheld.
