4 INSTALLATION INSTRUCTIONS
M S D
• W W W . M S D P E R F O R M A N C E . C O M • ( 9 1 5 ) 8 5 5 - 7 1 2 3 • F A X ( 9 1 5 ) 8 5 7 - 3 3 4 4
Figure 6 Injector Clips.
PASSENGER SIDE
DRIVER SIDE
Figure 5 Fuel Rail Length.
PASSENGER SIDE
DRIVER SIDE
NOTE: The Driver Side Rail is SHORTER
than the Passenger Side Raile.

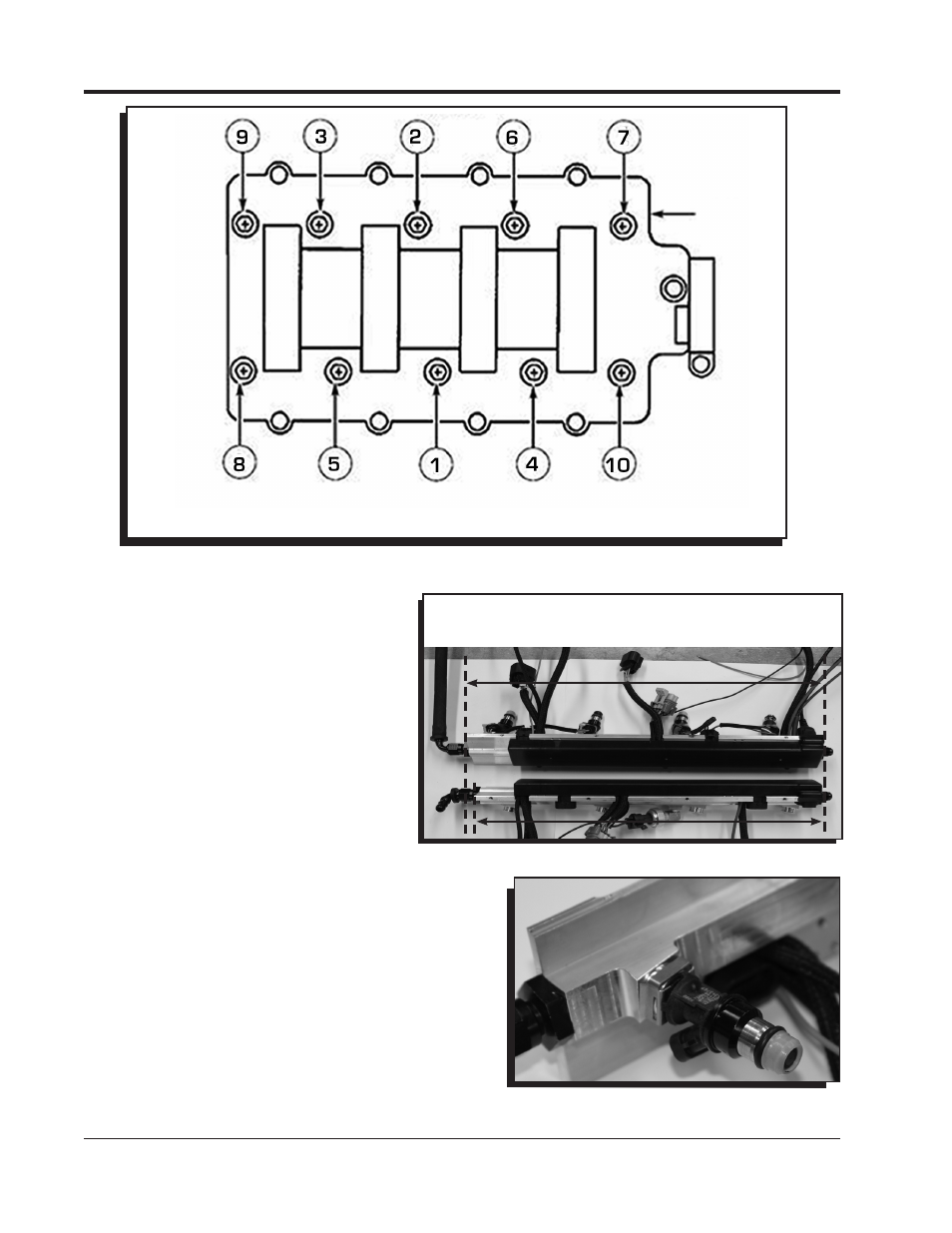

Figure 4 Intake Manifold Torque Specifications.
1ST PASS: 42 IN LB - 44 IN LB
2ND PASS: 87 IN LB - 89 IN L2
FRONT
3. One of the fuel rails is shorter than the
other. The shorter rail is installed on
the driver side of the engine (Figure
5).
4. Lubricate the o-rings on the injectors with
some motor oil or silicone lubricant.
Install the clips onto the injector before
they are pushed into the fuel rail bung.
The injector clip will automatically secure
the injector to the rail.
5. Push the fuel injectors into the bung
without forcing them on. The injectors
should slide in easily (Figure 6).
6. Plug the fuel injector pigtails into the fuel
rail connections (Figure 7).
7. Connect the fuel injector pigtails into the injectors. The
long wires connect to the injectors on each end of the
fuel rail. The short wires connect to two inner injectors
(Figure 8).
8. Plug the FPS (fuel pressure sensor) connector into the
fuel pressure sensor under the fuel rail (Figure 9).
9. Connect the CAN cable from one rail to the other
(Figure 10).
10. Connect the heavy red Rail Power wire together
between the two rails (Figure 11).
11.Repeat steps 3-6 for the passenger side fuel rail
assembly.
