IP Director Version 4.3 – User Manual – Part 2: Logging and Browsing
EVS Broadcast Equipment
Issue 4.3.C
21
1.5.4 R
EFRESH
G
RID
Selecting this menu command performs a refresh of the grid (log
entry list) when necessary.
1.6 CREATING EVENTS ON A LOG
SHEET
1.6.1 H
OW TO
L
OG
LIVE A
CTION IN AN
E
VENT
To create a new log entry in a loaded log sheet, proceed as
follows:
1. In IP Logger, select the New button in the LIVE area:

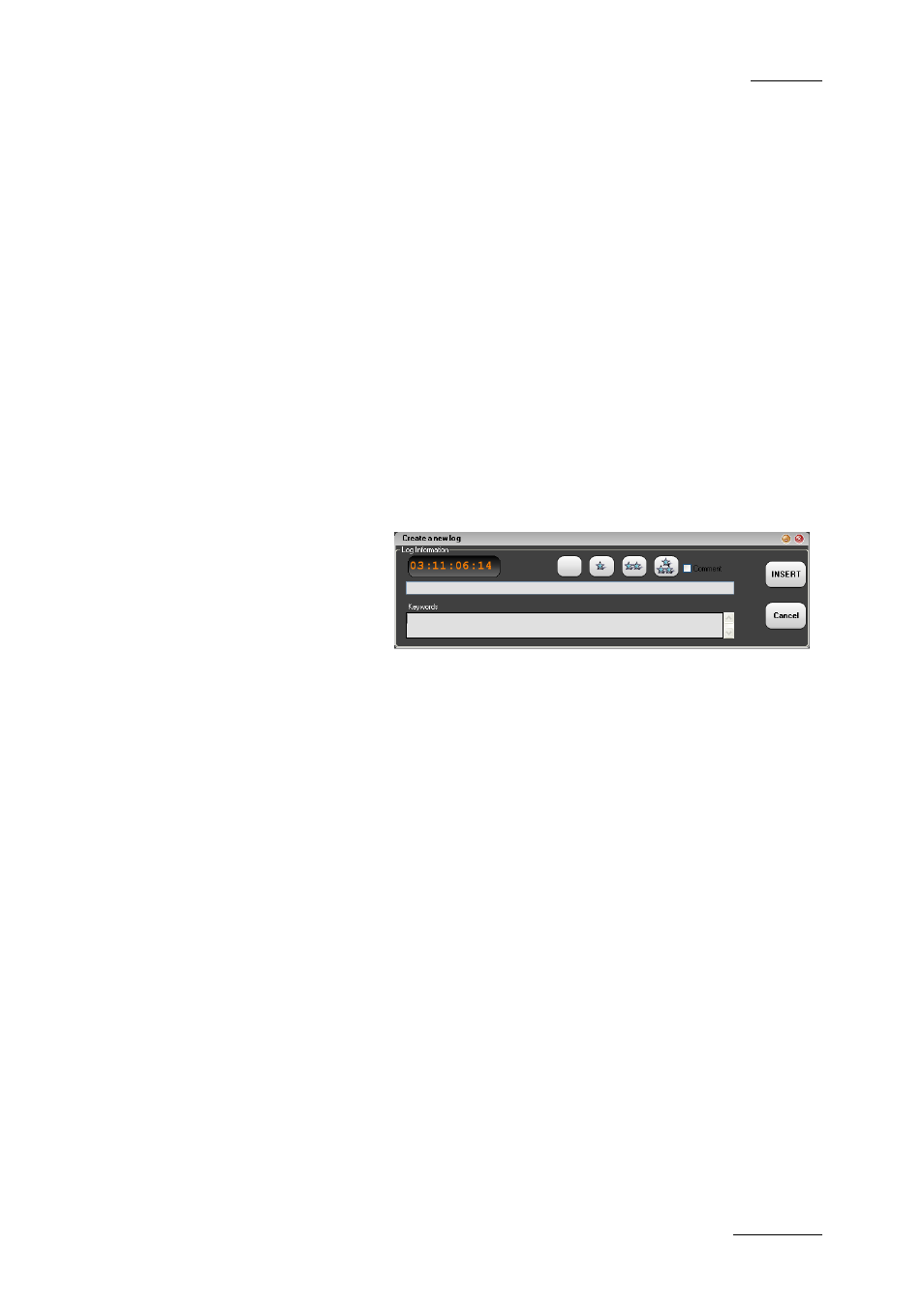

The Create a New Log window opens with the timecode
grabbed from the preview recorder:
For more information on the fields, see section 1.6.2.
2. If required, use the upper text field to enter free text
into the log.
3. If required, add keywords to the log entry.
See section 1.6.3.
4. If required, select a rating level.
5. Click the Insert button.
The log entry is created in the log sheet. The log entry contains
a column for each user fields and each automatic keyword fields
defined in the associated logging profile, even if no value has
been defined for the fields.
Any clip made on the relevant record channels of the XNet will
appear on the log in the Associated Clips column. And this
irrespective of when the clips are created, even if this is
significantly before or after the grabbed timecode. The log will
automatically update whenever it sees a clip containing the
recorded event timecode.
