Issue 4.3.C IP Director Version 4.3 – User Manual – Part 2 – Logging and Browsing
EVS Broadcast Equipment
4
1.2.2 S
TEP
2: D
EFINING THE
L
OG
S
HEET
K
EYWORDS

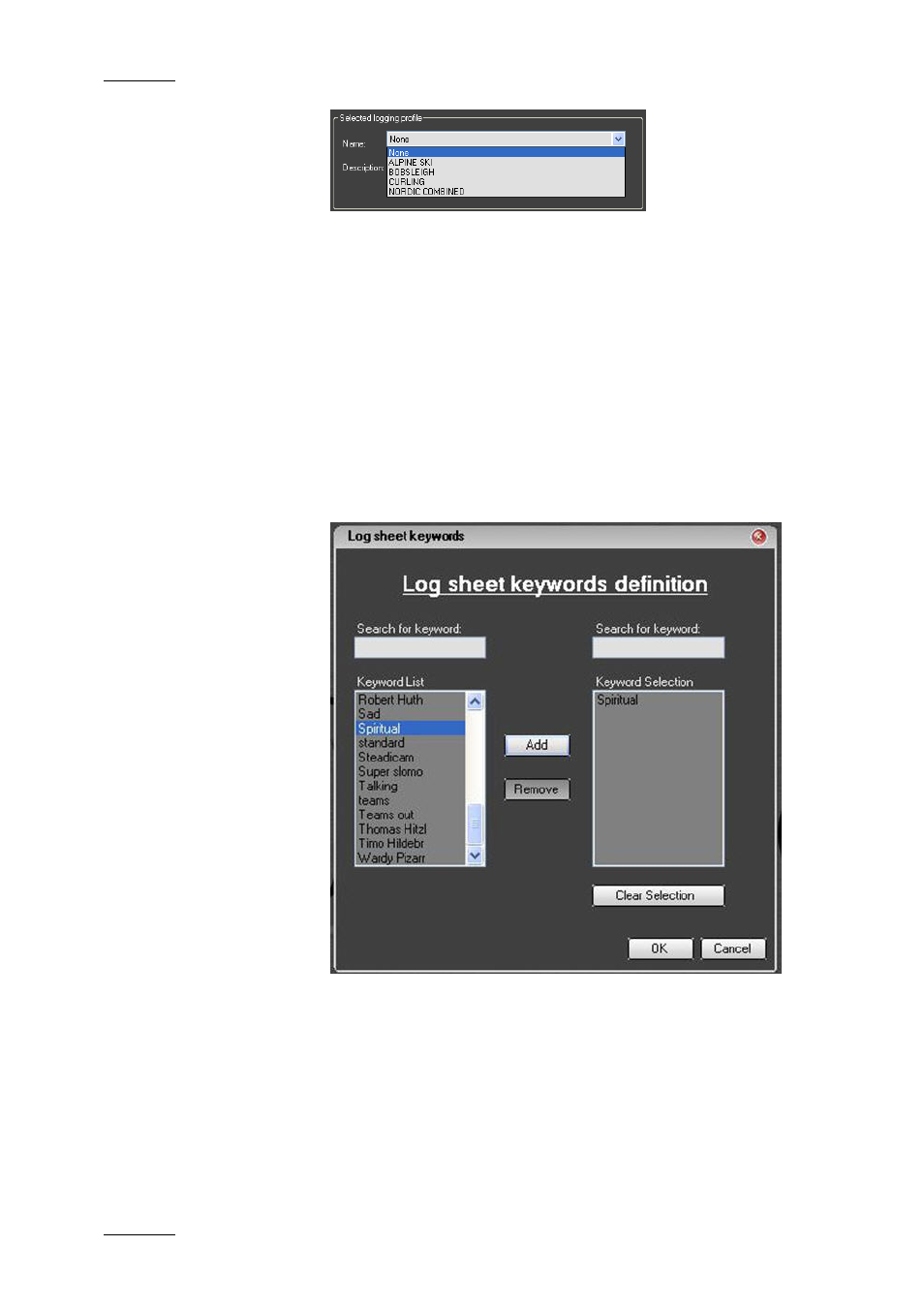

The Log Sheet Keywords window opens when you click the
button beside the Step 2 indication.
A list of all keywords available in the IP Director database is
displayed in the Keyword List box. By associating any of these
with the log sheet, each event logged will have these as an
additional set of keywords.
The keywords associated to the log in this way are called “parent
keywords” as they are defined at the log sheet level, valid for all
log elements in the log sheet.
When performing a search of the database, for example if a team
name is added here, any database search with that team name
will include all items from this log sheet. Any parent keywords
used must therefore have relevance for all events in the log
sheet.
