2 (Figs. 46 & 47)
}For the U-UCD8, refer to the separate instruction manual.
}Do not engage any optical element in the BF (brightfield) light path.
1. Place the condenser in the orientation as shown in Fig. 46 loosen the
detaching screws @ and remove the cover ².
With the IX2-LWUCDA2 motorized condenser, remove the four clamping
screws ³ using the Allen screwdriver and remove the top cover. (Fig. 47)
2. Rotate the turret so that the number of the next optical element to be
inserted in the uncovered position is visible. (When the IX2-LWUCDA2 is
used, turret rotation is motorized.)
3. Loosen the optical element position centering screws using the optical
element centering knobs |. (Figs. 46 & 47)

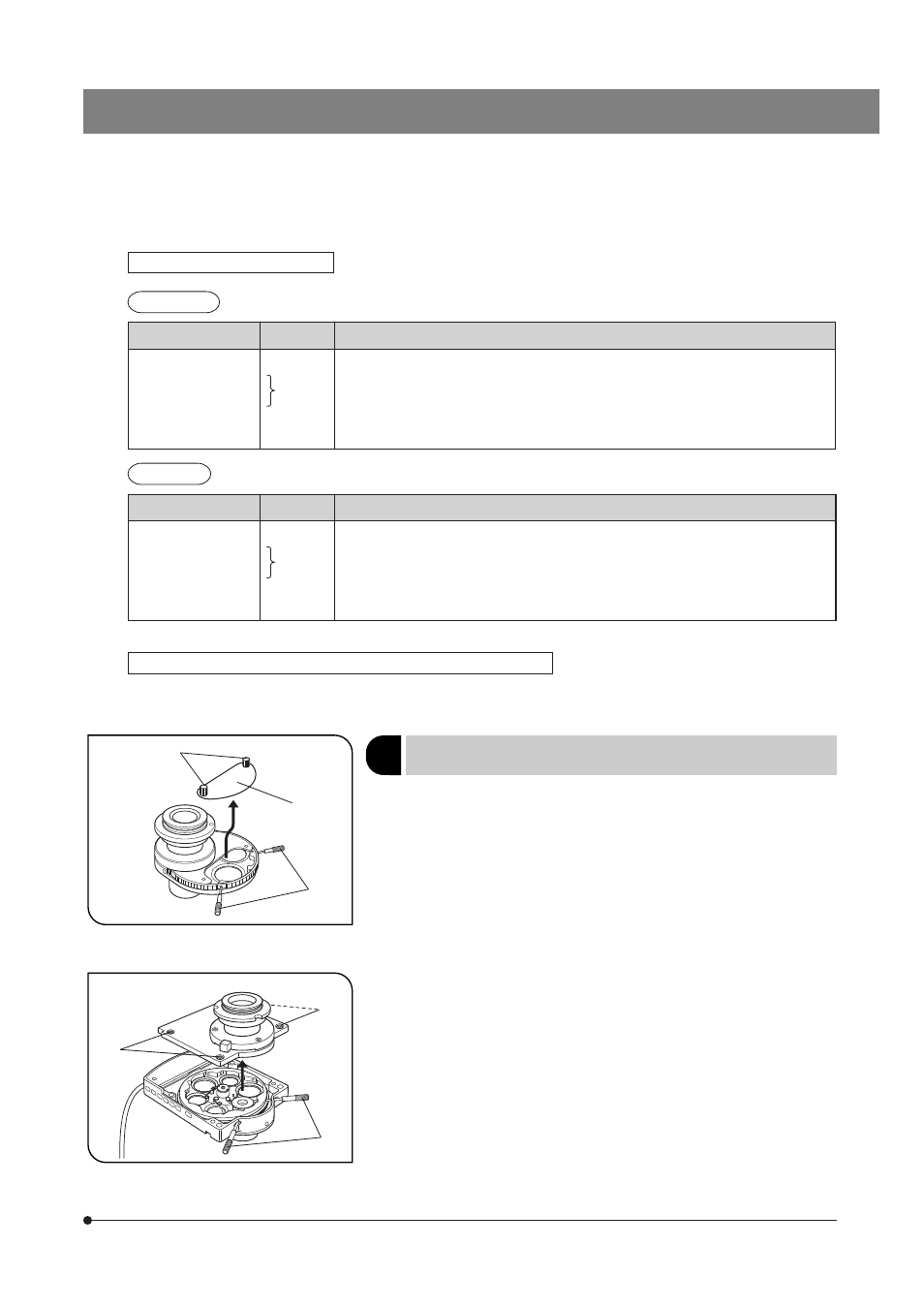

Fig. 46
@
²
|
Fig. 47
³
³
|
Attaching the Phase Contrast
Optical Elements
With the IX-ULWCD Condenser
(Note) The IX-PHCU or IX-PH1U can be attached only in the Ph1 or PhC position.
Do not remove the built-in elements.
With the U-UCD8 Universal Condenser or IX2-MLWCD Condenser
}Refer to their separate instruction manuals.
Optical Element Indication Applicable Objectives
PHL (Built in) PhL UPlanFl4XPh
IX-PHCU Ph1 CPlan10XPh, LCAch20XPh, CPlanFl10XPh
IX-PH1U PhC UPlanFl10XPh, UPlanFl20XPh, LCPlanFl20XPh, UPlanApo10XPh
PH2 (Built in) Ph2 UPlanFl40XPh, LCPlanFl40XPh, LCPlanFl60XPh, UPlanApo20XPh, LCAch40XPh,
LUCPlanFl40XPh, SLCPlanFl40XPh
UIS2 Series
Optical Element Indication Applicable Objectives
PHL (Built in) PhL UPlanFLN4XPh
IX-PHCU Ph1 CPlanN10XPh, LCAchN20XPh, CPlanFLN10XPh
IX-PH1U PhC UPlanFLN10X2Ph, UPlanFLN20XPh, LUCPlanFLN20XPh
PH2 (Built in) Ph2 UPlanFLN40XPh, LUCPlanFLN40XPh, LUCPlanFLN60XPh,
LCAchN40XPh, UPlanFLN60XOIPh
UIS Series
