8

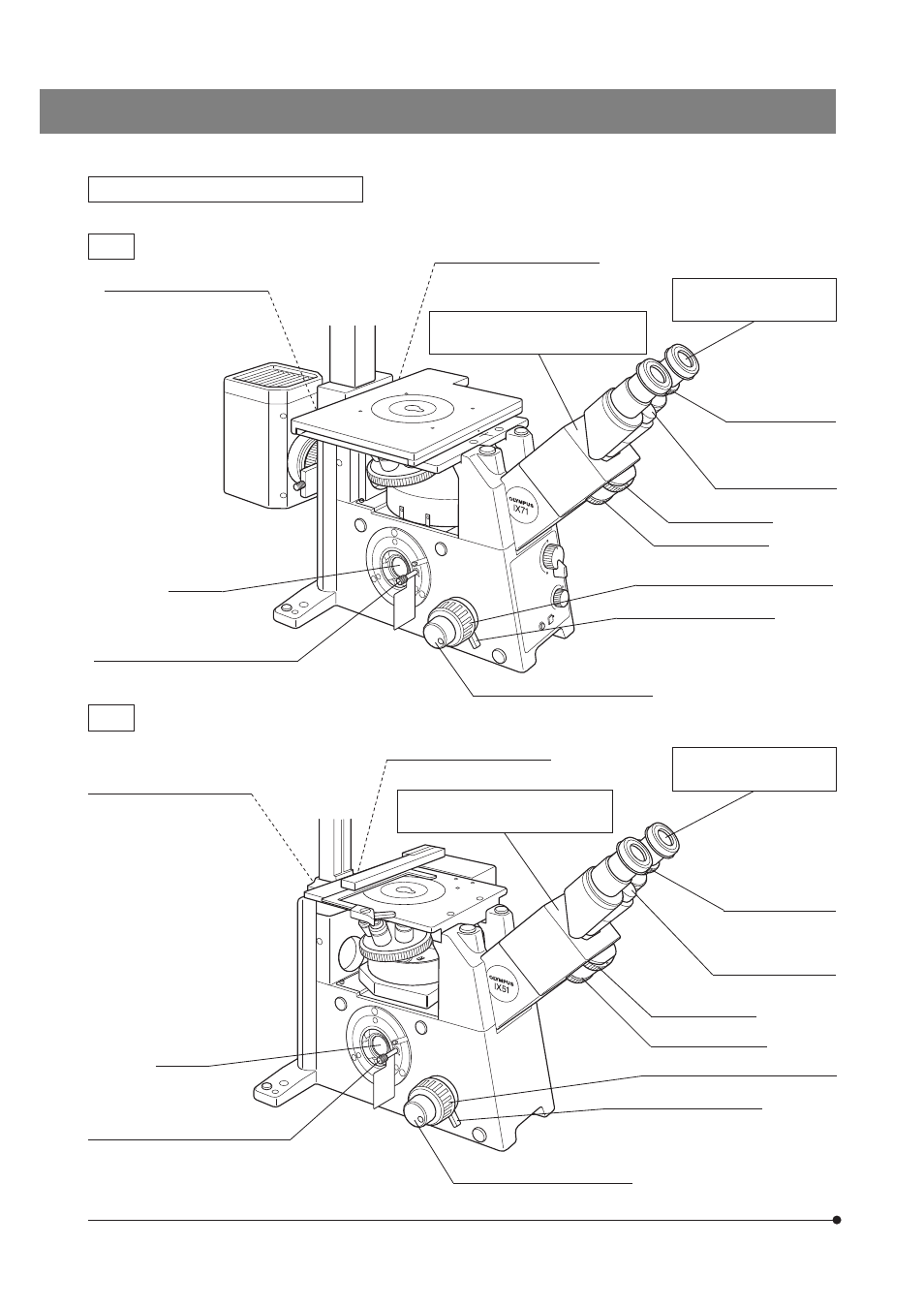

Left Side View of Microscope Frame
IX71
IX51
Allen screwdriver
storage position (Rear panel)
Side port
Transport lock knob
#Be sure to remove this before use.
Allen wrench and optical
element centering knob (x 2)
storage position (Rear panel)
Diopter adjustment
ring (Page 20)
Interpupillary distance
adjustment scale
(Page 20)
CT turret (Page 21)
Focus ring (Page 21)
Coarse adjustment knob (Page 16)
Fine adjustment knob (Page 17)
Detachable.
Pre-focusing lever (Page 17)
Eyepieces
WHN10X/WHN10X-H
Binocular Observation Tube
U-BI90CT
Allen wrench and optical
element centering knob (x 2)
storage position (Rear panel)
Binocular Observation Tube
U-BI90CT
Allen screwdriver
storage position (Rear panel)
Side port
Transport lock knob
#Be sure to remove this before use.
Diopter adjustment
ring (Page 20)
Interpupillary distance
adjustment scale
(Page 20)
CT turret (Page 21)
Focus ring (Page 21)
Coarse adjustment knob (Page 16)
Fine adjustment knob (Page 17)
Detachable.
Pre-focusing lever (Page 17)
Eyepieces
WHN10X/WHN10X-H
