FPC 7160
15.6” Industrial Panel PC
Serial Port4 Address [2E8]
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
Disabled
No base address is assigned to serial port 3
3E8
Serial port 4 I/O port address is 3E8
2E8
DEFAULT
Serial port 4 I/O port address is 2E8
2F0
Serial port 4 I/O port address is 2F0
2E0
Serial port 4 I/O port address is 2E0
Serial Port4 IRQ [10]
Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
10 DEFAULT
Serial port 4 IRQ address is 10
11
Serial port 4 IRQ address is 11

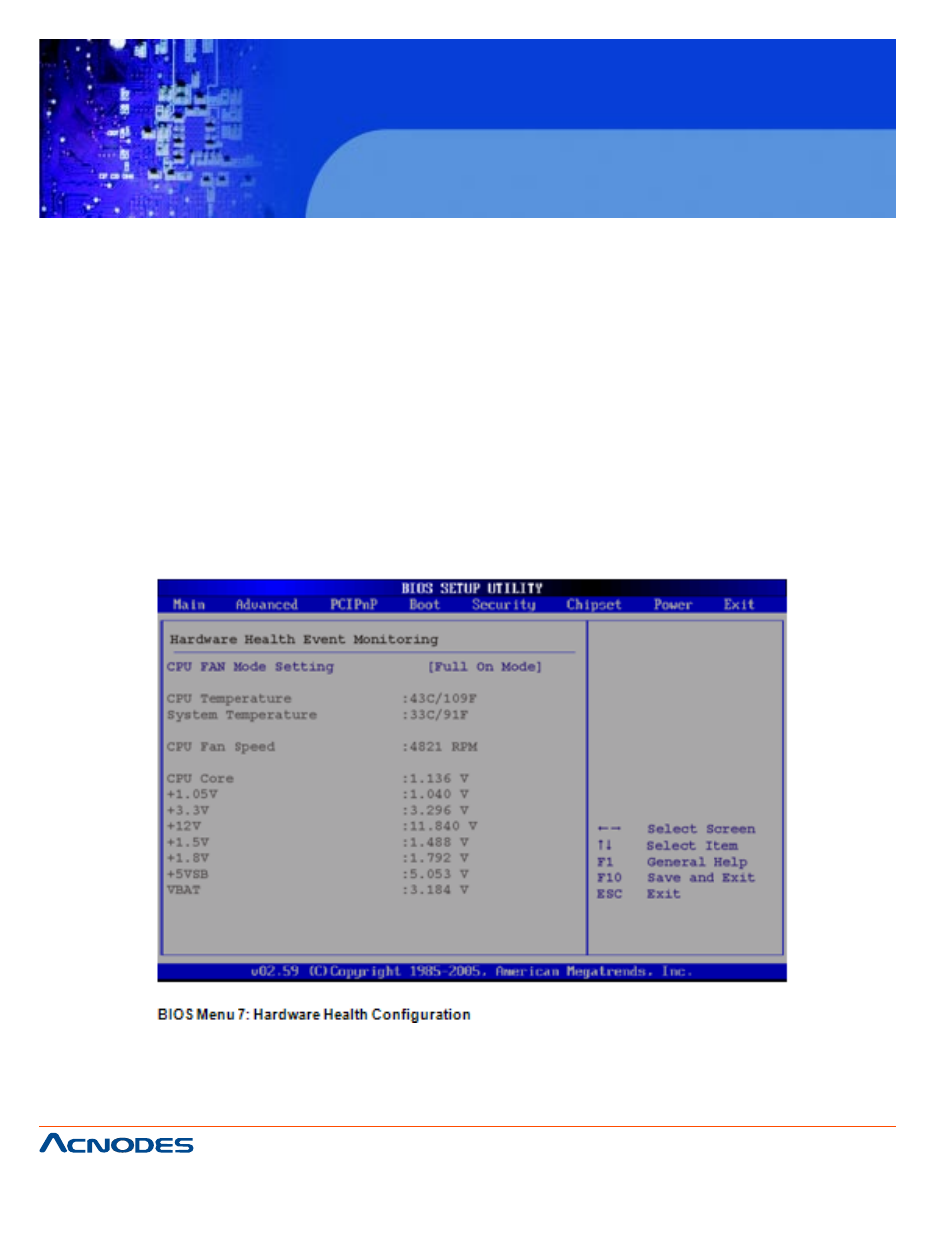

5.3.4 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 7) shows the operating temperature, fan
speeds and system voltages.
Monitored Values
The following system parameters and values are shown. The system parameters that are monitored are:
