If the FPC7160/ FPC 7162 fails to boot due to improper BIOS settings, the clear CMOS jumper clears
the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close the pins
for a few seconds then remove the jumper clip.

If the "CMOS Settings Wrong" message is displayed during the boot up process, the fault may be
corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the following:

Enter the correct CMOS setting

Load Optimal Defaults

Load Failsafe Defaults.

After having done one of the above, save the changes and exit the CMOS Setup menu. The clear
CMOS jumper settings are shown in Table 2-7.

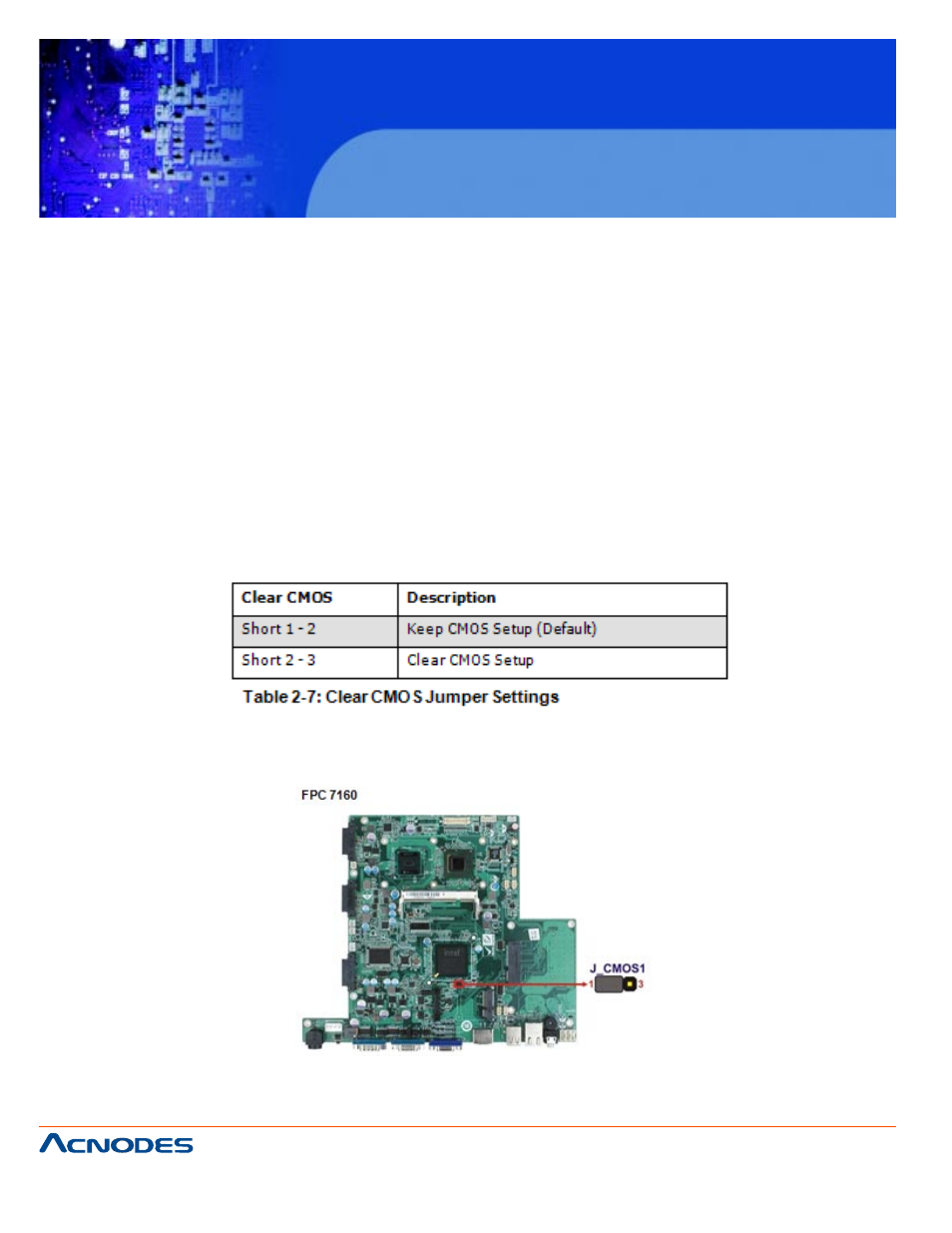

The location of the clear CMOS jumper is shown in Figure 2-10 below.
