B.2.2 CREATE PARTITIONS

To create the system backup, the main storage device must be split into two partitions (three partitions
for Linux). The first partition will be for the operating system, while the second partition will be invisible
to the operating system and contain the backup made by the one key recovery software.

Step 1: Put the recovery CD in the optical drive of the system.

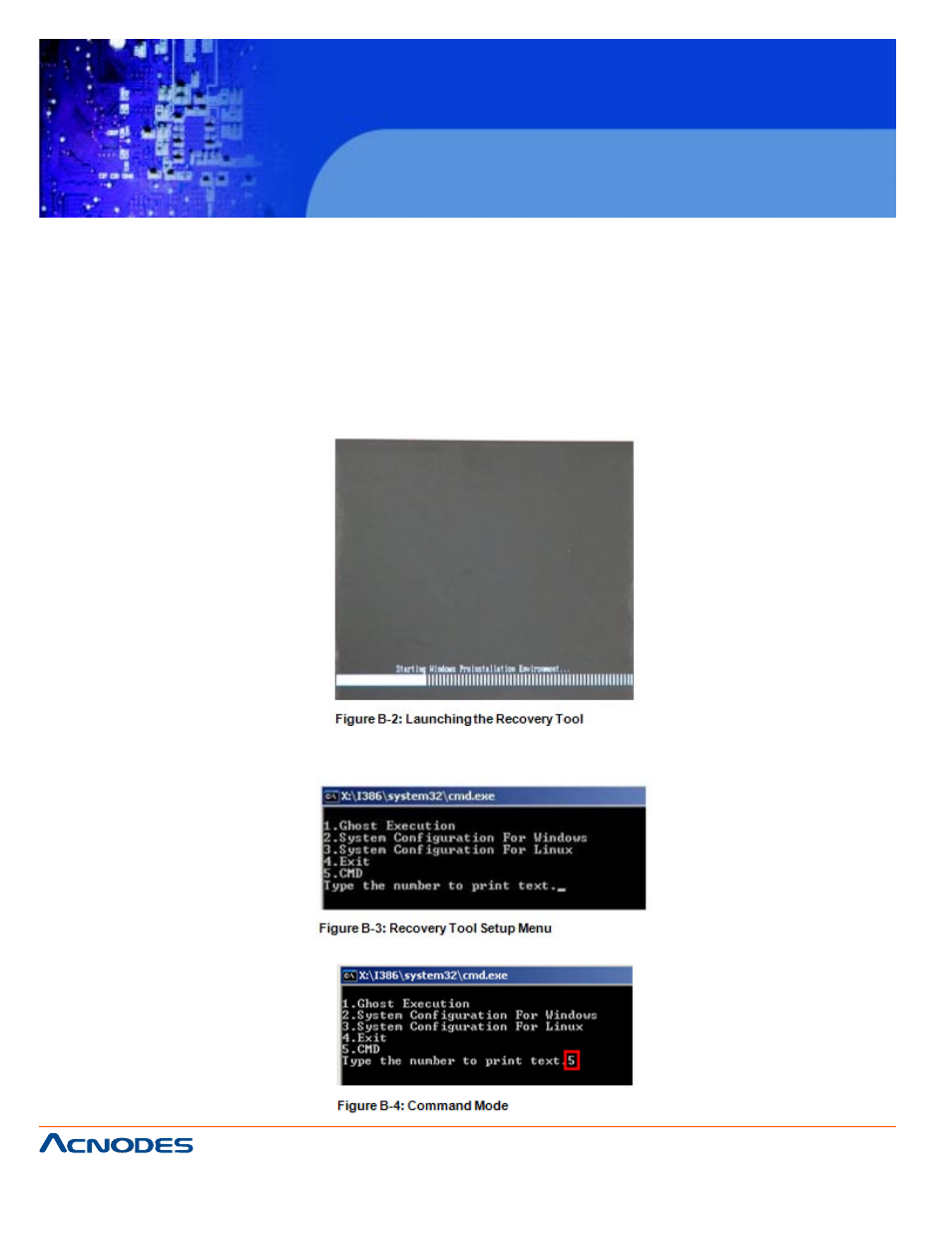

Step 2: Boot the system from recovery CD. When prompted, press any key to boot from the recovery
CD. It will take a while to launch the recovery tool. Please be patient!

Step 3: The recovery tool setup menu is shown as below.

Step 4: Press <5> then .
