FPC 7160

15.6” Industrial Panel PC

Step 3: Secure the connector. Secure the serial device connector to the external interface by tightening
the two retention screws on either side of the connector.

2.9.3 USB DEVICE CONNECTION

To connect USB devices to the FPC7160/ FPC 7162, please follow the instructions below.

Step 1: Located the USB connectors. The locations of the USB connectors are shown in Chapter 2.

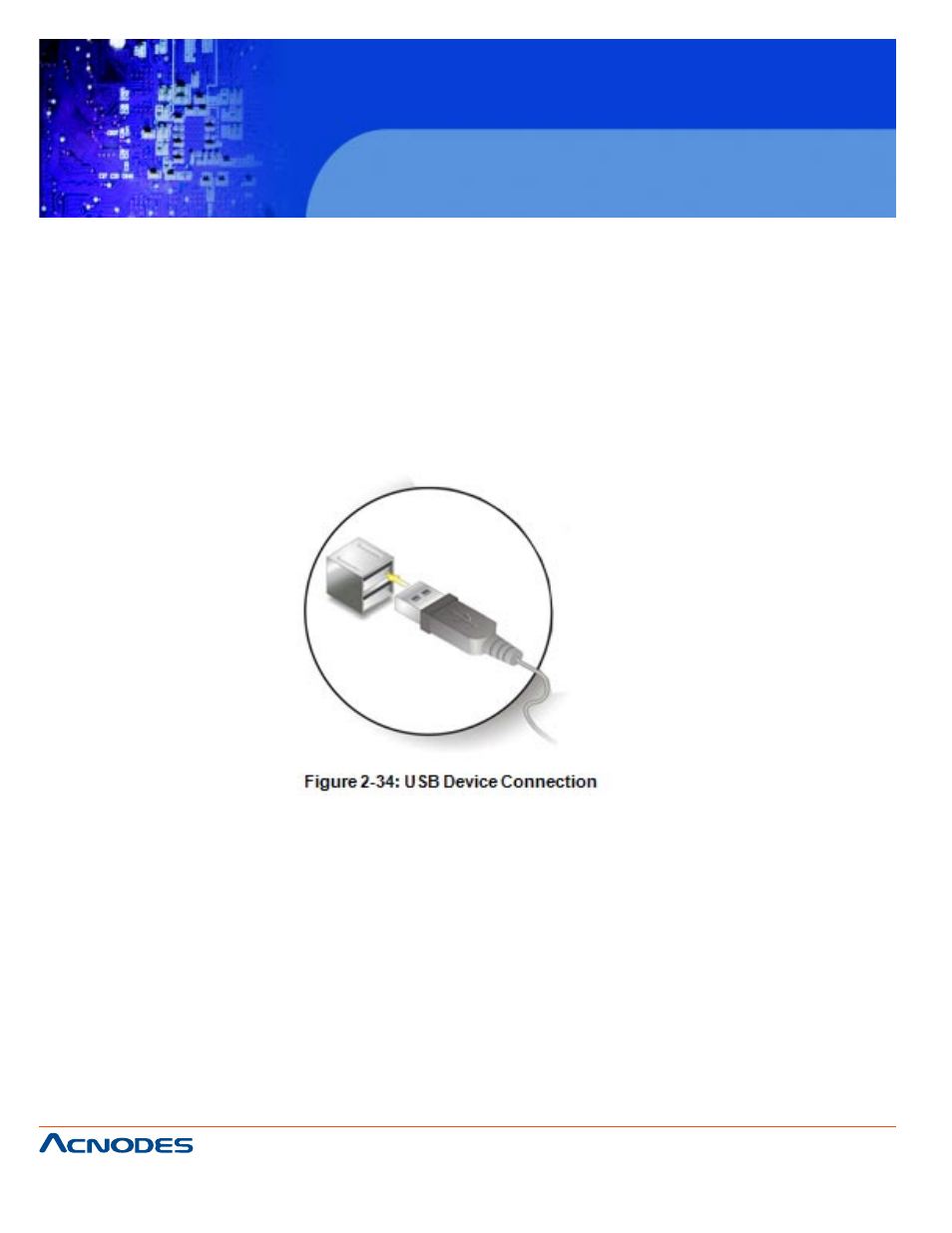

Step 2: Align the connectors. Align the USB device connector with one of the connectors on the bottom
panel. See Figure 2-34.

Step 3: Insert the device connector. Once aligned, gently insert the USB device connector into the
onboard connector.

2.9.4 VGA Monitor Connection

The VGA output can be connected to an external VGA monitor. To connect the VGA monitor to the
FPC7160/ FPC7162, please follow the instructions below.

Step 1: Locate the female DB-15 connector. The location of the female DB-15 connector is shown in
Chapter 3.
